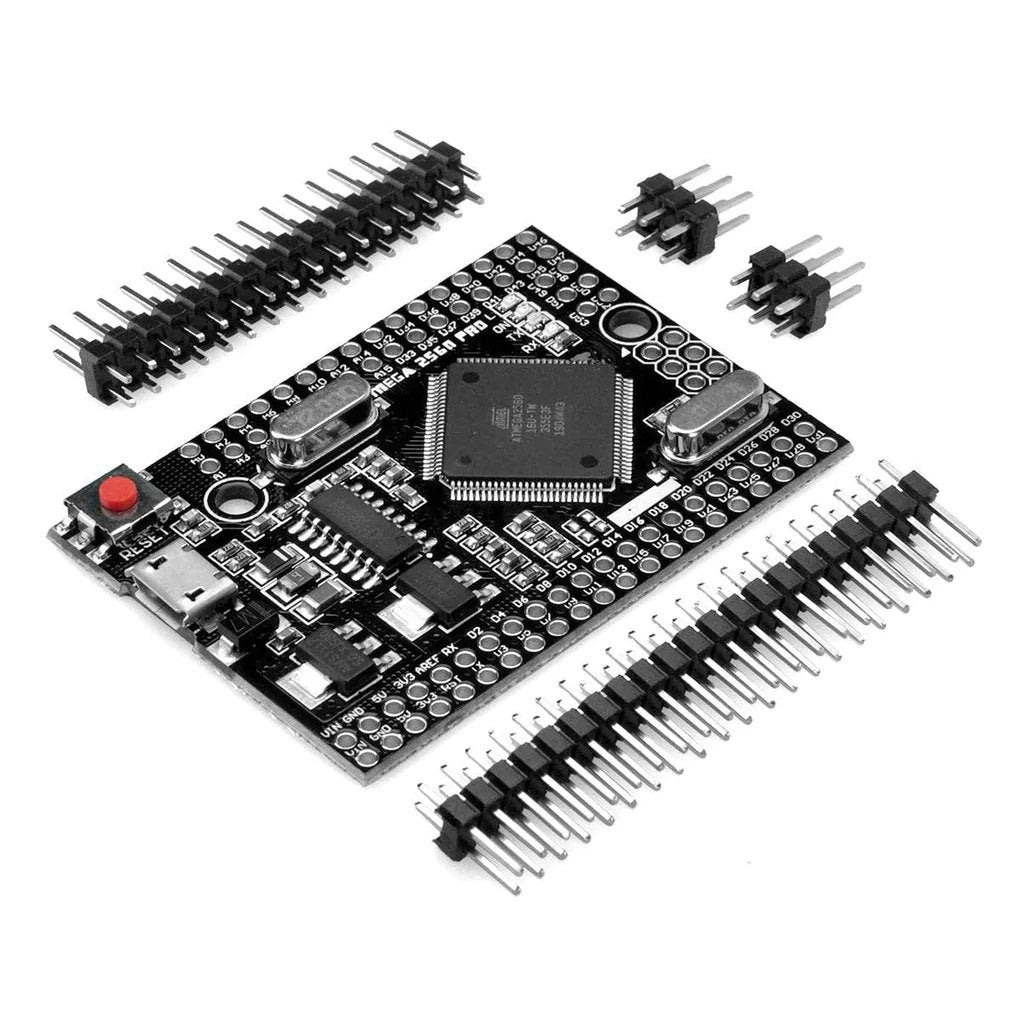

Arduino Mega Mini 2560 PRO Development Board
Arduino Mega Mini 2560 PRO Development Board
Arduino Mega Mini 2560 PRO Development Board

Arduino Mega Mini 2560 PRO Development Board

Available: In Stock
₹ 826.00

DESCRIPTION
Its a compact version of Arduino Mega 2560, Same features, pin-out, as in Arduino Mega 2560, just compact design to fit into any socket on PCB. Like Arduino Uno has Arduino Nano, similarly Arduino Mega has Arduino Mega mini Pro. Application: IoT ( Due to High Memory), Embedded, Product prototyping. The board has a compact form factor of 38X55mm and is an excellent solution for developing projects based on ATmega2560. The board has a Micro USB connector that allows you to connect the microcontroller to the computer via the USB-UART adapter CH340(A driver installation may be required). Download drivers: Windows, Linux, Mac, Android.



FEATURES

Microcontroller

ATmega2560

USB-TTL converter

CH340

Power Out

5V-800mA

Power IN.

5V

Power IN. VIN/DC Jack

5V

Power Consumption

5V 220mA

Logic Level

5V

USB

Micro USB

Clock Frequency

16MHz

Operating Supply Voltage

5V

Digital I/O

54

Analog I/O

16

Memory Size

256kb

Data RAM Type/Size

8Kb

Data ROM Type/Size

4Kb

Interface Type

ISP

Operating temperature

−40С°/+85С°

Length x Width

38×54mm
