4x4 Matrix Keypad
ROBOT ACCESSORIES

4x4 Matrix Keypad

  • Vendor:TOMSON ELECTRONICS
  • Check Pincode Serviceability


Availability: Out Stock
₹ 127.00
(All prices are tax inclusive)
Sold Out

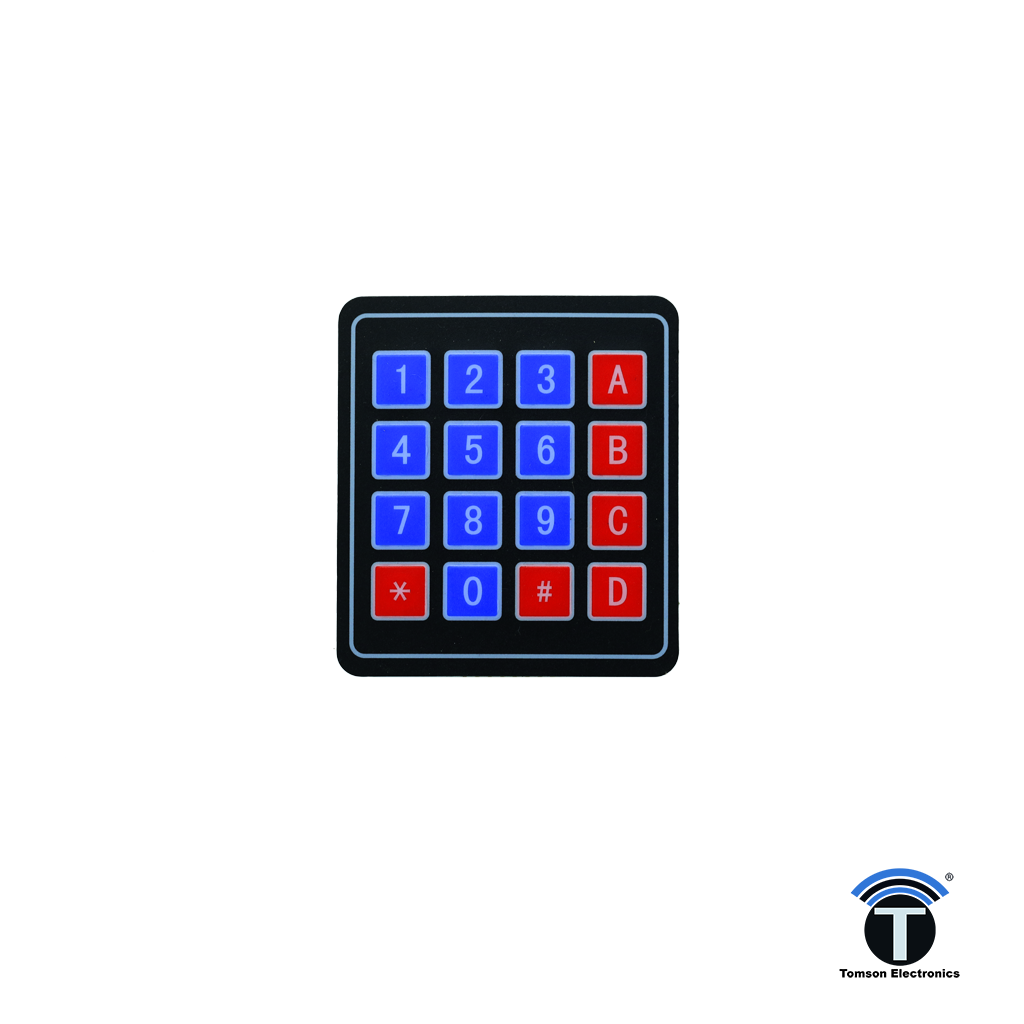

Membrane Type Keypad - 16 Key - 4x4 Matrix 4 x 4 Matrix Membrane Keypad
8 pin connector
Adhesive mounting
Maximum Circuit Rating: 35VDC, 100mA
Insulation Resistance: 100M Omh, 100V
Dielectric Withstand: 250VRms (50-60Hz, 1min)
Contact Bounce: <=5ms
Life Expectancy: 1 million closures
Operation Temperature: 0 to +70 centigrade
Humidity: 40 centigrade, 90%-95%, 240 hours
Pad Size (L x W): Approx. 3 x 2.7 inch / 76 x 69 mm
Flexible Circuit Length: Approx. 3.3 inch / 83 mm
