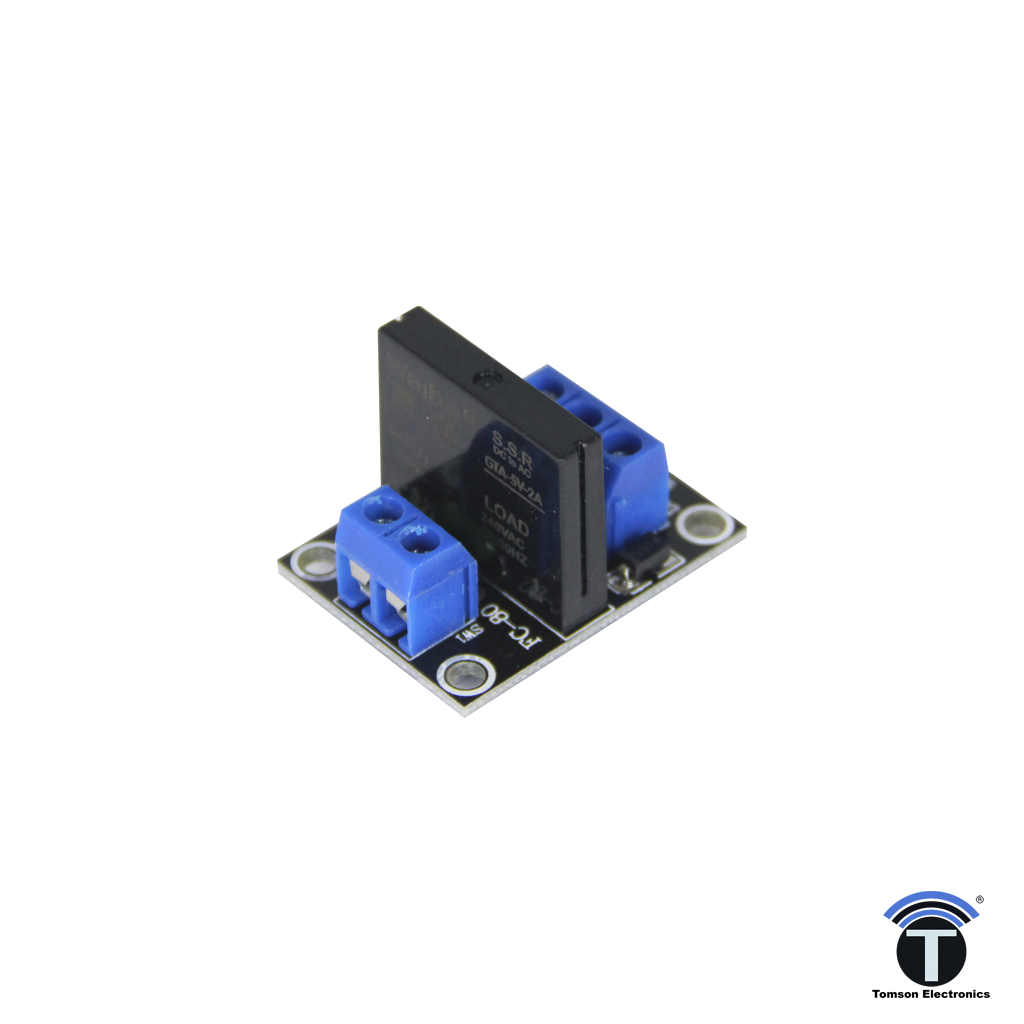

1-Channel Solid-State Relay

1-Channel Solid-State Relay

  • ₹ 159.30
  • Save ₹ 39

Only 20 left!

DESCRIPTION

1-Channel Solid-State Relay is somewhat similar to that of a mechanical relay & the difference is that there is no moving contact in a Solid-State Relay. Here we make use of Phototrriac coupler to turn it ON and OFF. It finds its application in AC circuits as a TRIAC has got only limited aplications in DC.

Solid state relays do have several advantages over mechanical relays. One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, because there are no moving contacts, solid state relays can be switched much faster and for much longer periods without wearing out.

FEATURES

  • 1-Channel Solid-State Relay
  • Rated output load: 100V ~ 240V AC (50Hz/ 60Hz) 2A
  • Rated input voltage: 5V
  • Triggered at Low level
  • LED showing Solid-State Relay status
  • Input control signal:
    • Low Signal (Solid-State Relay ON / CLOSED)
    • High Signal (Solid-State Relay OFF / OPEN)
  • Screw terminals for better & secure connection
  • Length:50mm
  • Width:60mm
  • Height:50mm

DEVELOPMENT SOURCES

   Datasheet
