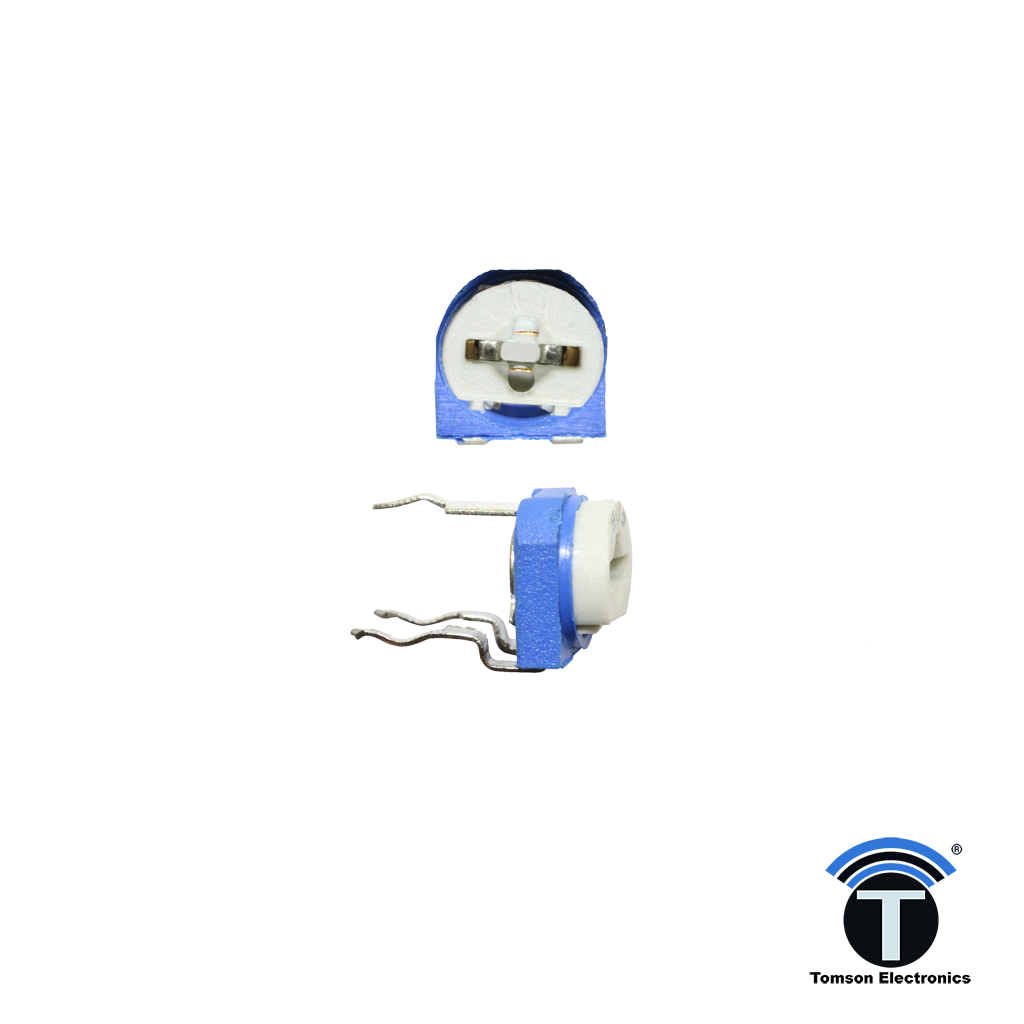

Cermet preset is a compact variable resistor and pcb mountable with 3 terminal pins. The voltage between the terminal varies as the preset is rotated.
The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and center pin outputs a variable voltage between 0v and Vcc as the rotary cermet is rotated.
Track Resistance: 1K ohm
No. of Turns: 1
Resistance Tolerance: ± 10%
Temperature Coefficient: ± 100 ppm/°C
Potentiometer Mounting: Through Hole
Adjustment Type: Top
Contact Resistance Variation +: 1%
Full Power Rating Temperature: 85°C
Lead Diameter: 0.5 mm
Operating Temperature Range: -55°C to +125°C
Resistance: 10 K ohm
Resistor Element Material: Variable Rotary Cermet
