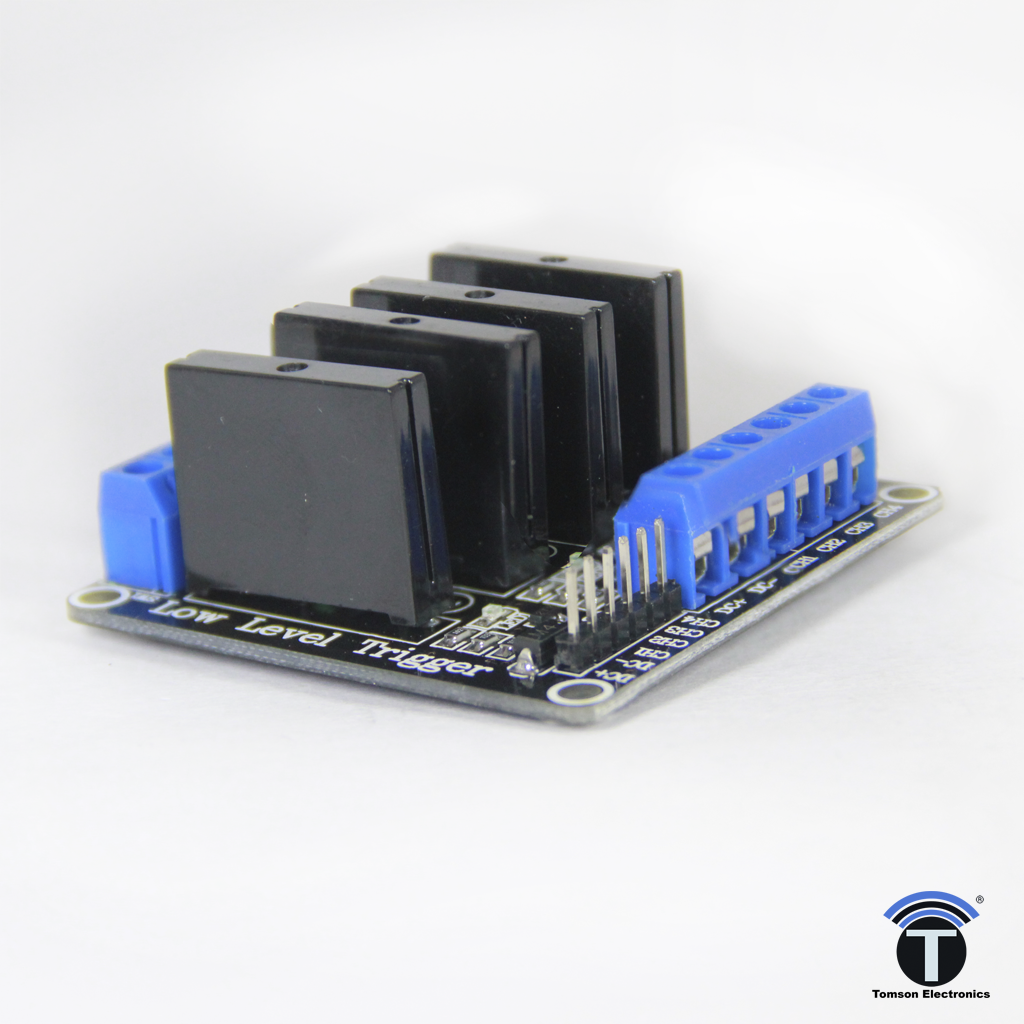

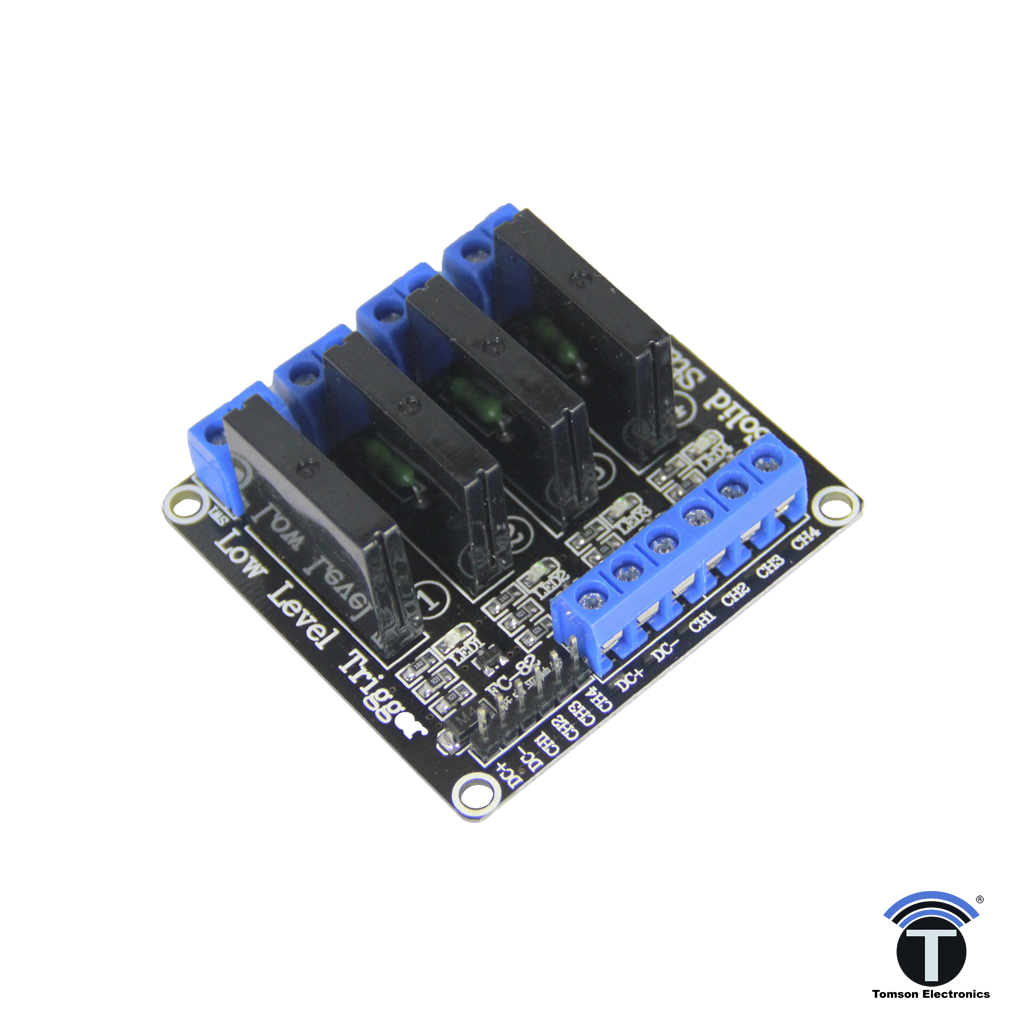

4 CHANNEL SOLID STATE RELAY - 5V
Rated 3.5/5 based on 11 customer reviews

4 CHANNEL SOLID STATE RELAY - 5V

  • Order within
Available: In Stock
₹ 531.00 ₹ 699.00

DESCRIPTION

4-Channel Solid-State Relay is some what similar to that of a mechanical relay & the difference is that, there is no moving contact in a Solid-State Relay. Here we make use of Phototriac coupler to turn it ON and OFF. It finds its application in AC circuits as a TRIAC has got only limited applications in DC.

Solid state relays do have several advantages over mechanical relays. One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, because there are no moving contacts, solid state relays can be switched much faster and for much longer periods without wearing out.

FEATURES

  • 4-Channel Solid-State Relay
  • Rated output load: 100V ~ 240V AC (50Hz/ 60Hz) 2A per channel
  • Rated input voltage: 5V
  • Triggered at High level
  • Separate LEDs showing the status of each Solid-State Relay
  • Input control signal:
    • Low Signal (Solid-State Relay OFF / OPEN)
    • High Signal (Solid-State Relay ON / CLOSED)
  • Screw terminals in AC Side for better & secure connection
  • Choice of connectivity in DC side between Screw terminals & male headers
  • Length:70mm
  • Width:70mm
  • Height:50mm

DEVELOPMENT SOURCES

      Datasheet
