STM8S Development Board STM8S103F3P6
Rated 3.5/5 based on 11 customer reviews

STM8S Development Board STM8S103F3P6

  • Order within
Available: In Stock
₹ 153.40 ₹ 399.00

DESCRIPTION

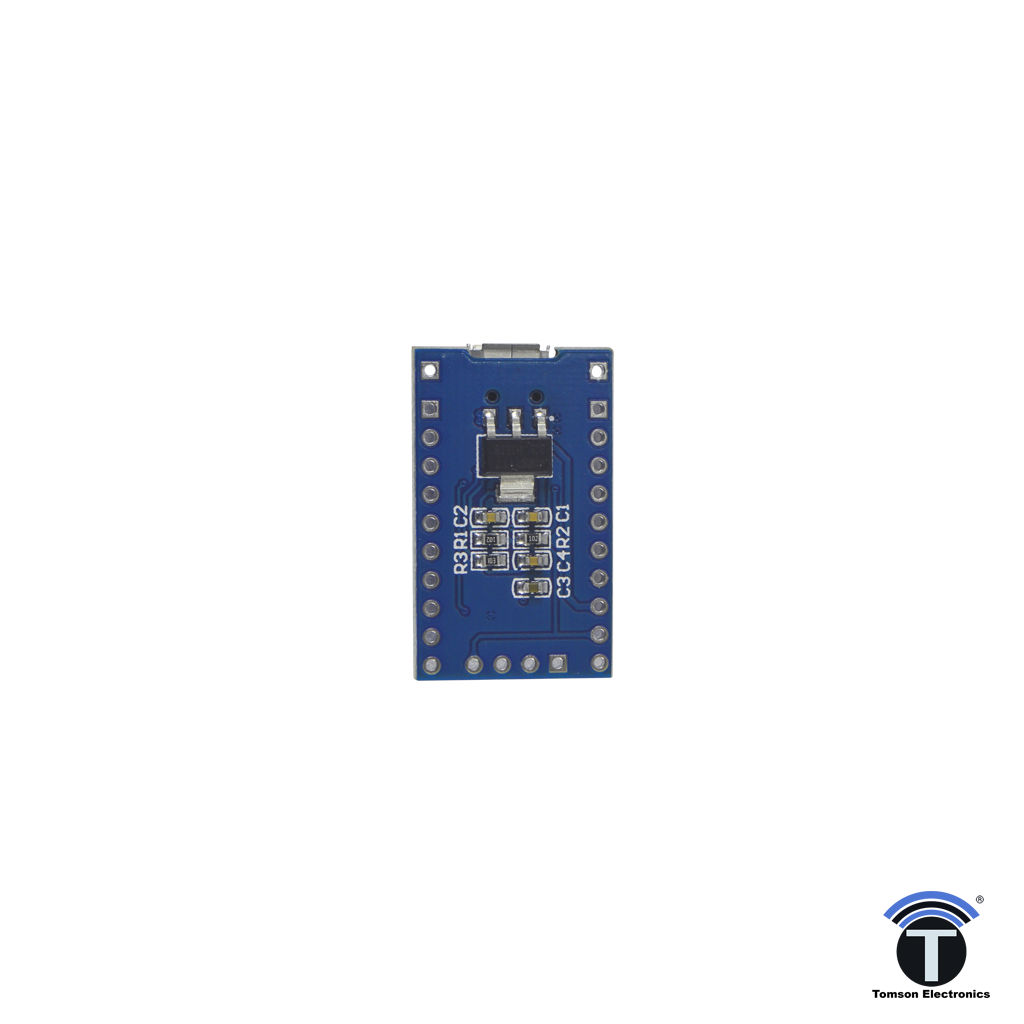

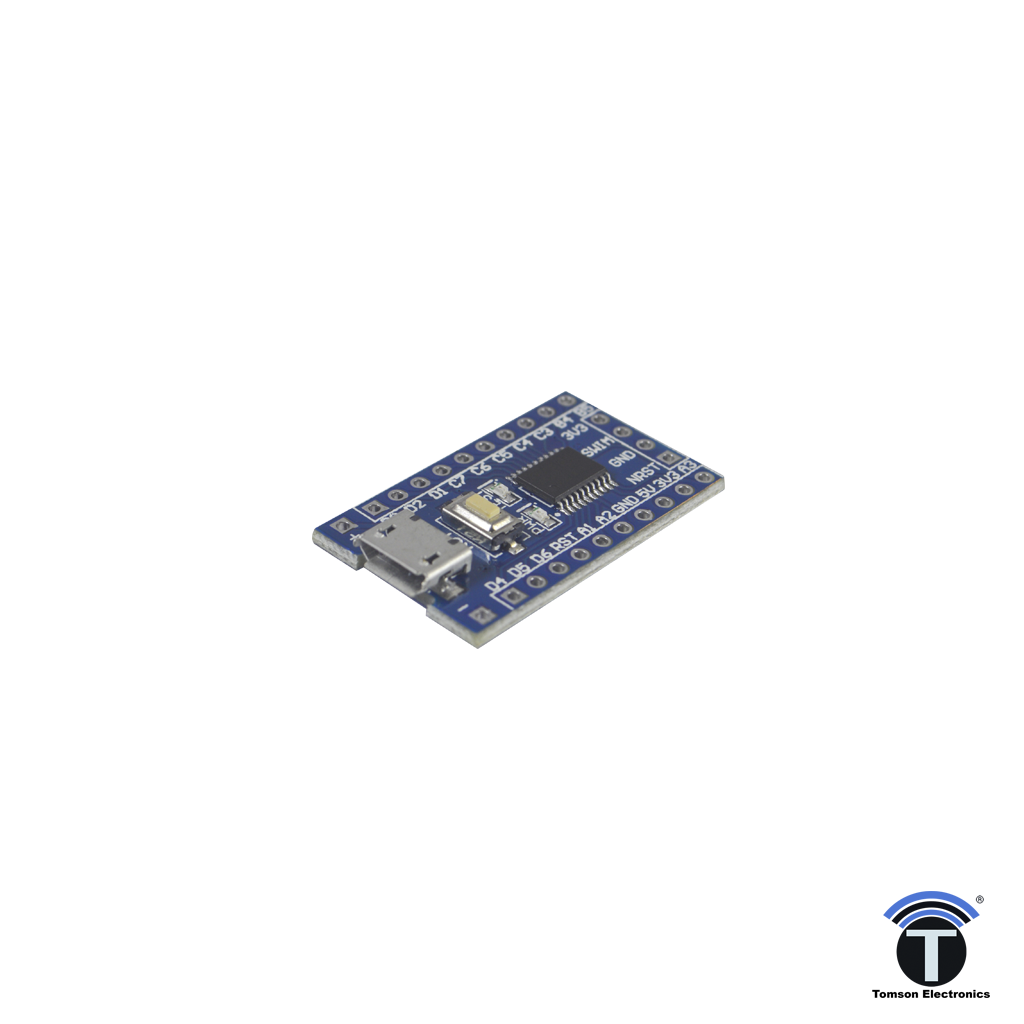

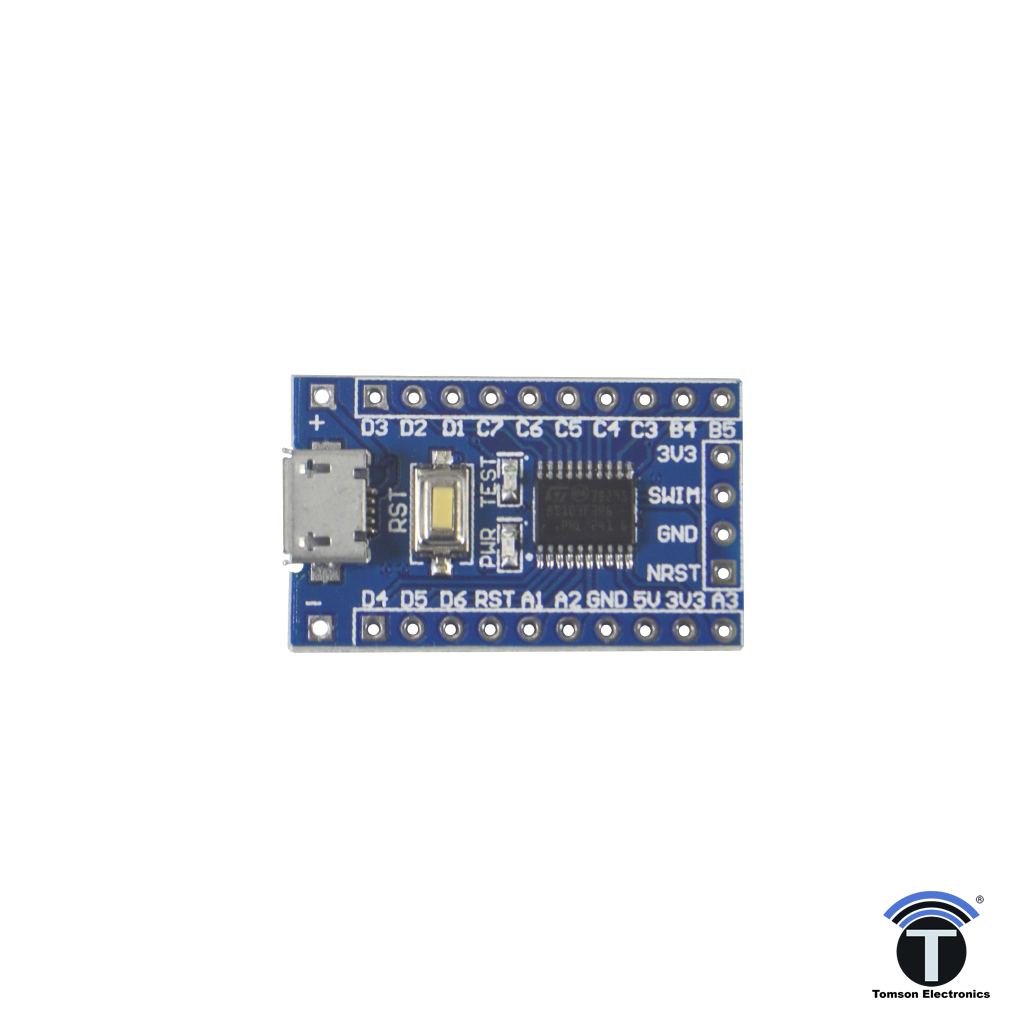

This development board is a minimal breakout board for the STM8S103F3P6 STM8 microcontroller. All of the I/O pins are marked and routed to standard 2.54 mm pins for convenient use.

Performance comparison:

EEPROM: The STM8S003F3 has 128 bytes, while the STM8S103F3 has 640 bytes.
Flash Erase: STM8S003F3 100 times, while the STM8S103F3 has 10000 times.
Flash: The STM8S103F2 only has 4K bytes, while the STM8S103F3 has 8K bytes.

FEATURES

  • Dimensions: 30 x 19 x 5(LxWxH)mm
  • Weight: 4 gm
  • Chipboard STM32F103C8T6
  • On board, SWIM interface and reset button
  • Micro USB line or the 2.54 pin to link to the power with the input voltage 4.5V-15V.
  • Power light and the Demo indicator light
  • Leads all the pins and has a detailed label for the Pins.
  • Support SWIM debug mode.
