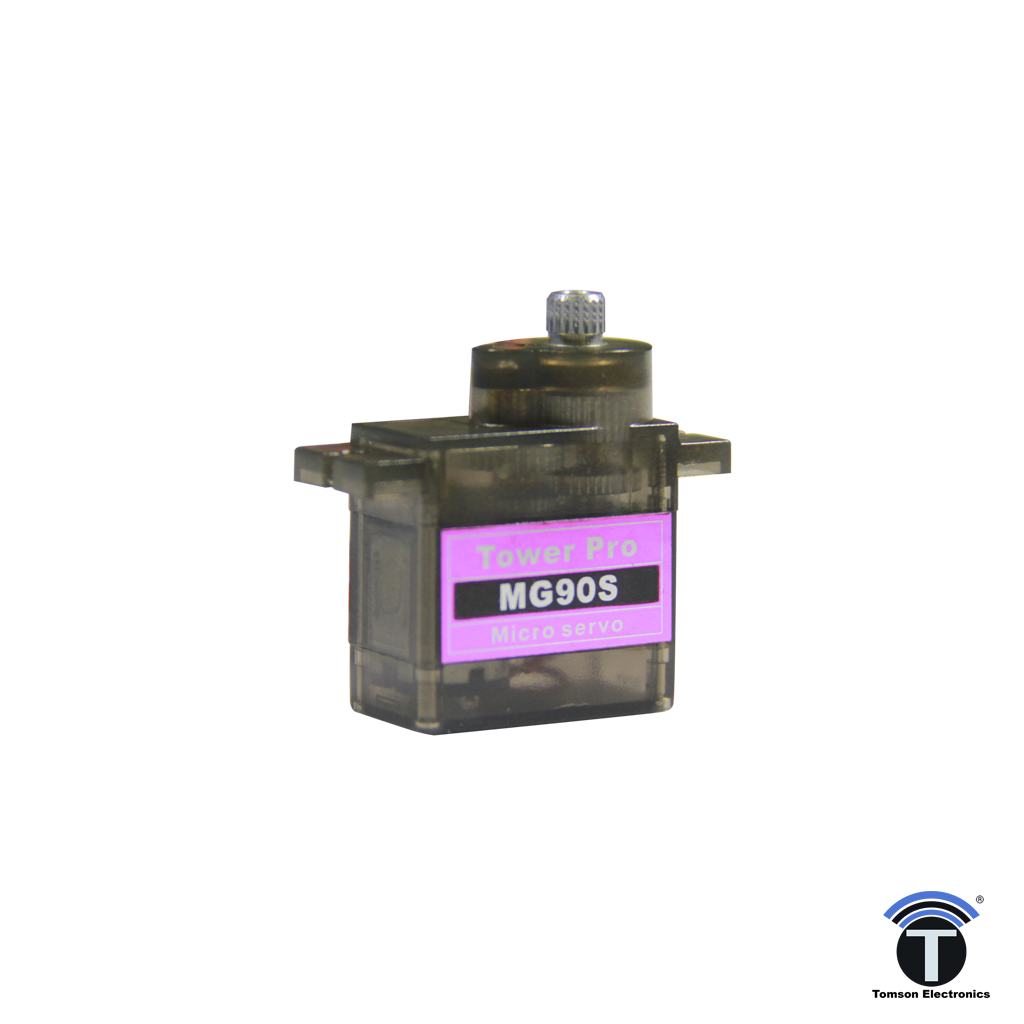

MG90S Metal Gear Micro Servo
Rated 3.5/5 based on 11 customer reviews

MG90S Metal Gear Micro Servo

  • Order within
Available: In Stock
₹ 188.80 ₹ 249.00
DESCRIPTION

Add more power to your robot with this metal-geared MG90S servo. The tiny little servo can rotate approximately 90 degrees (45 in each direction), and works just like the standard kinds you're used to but smaller. You can use any servo code, hardware or library to control these servos. Good for beginners who want to make stuff move without building a motor controller with feedback & gearbox, especially since it will fit in small places. Of course, its not nearly as strong as a standard servo. Works great with the Motor Shield for Arduino, our 16-channel Servo Driver, or by just wiring up with the Servo library. Comes with a few horns and hardware.

Please note, this servo will 'hold' the position even when no signal is sent!


FEATURES

Item Name: MG90S  servo

Weight: about 13.4g

Dimension: 22.8 x 12.2 x 28.5mm

Stall Torque: 1.8kg/cm(4.8V ),2.2kg/cm(6V)

Operating Speed: 0.1sec/60degree(4.8v),0.08sec/60degree(6v)

Operating Voltage: 4.8-6.0V

Motor Type: coreless motor

Connector Wire Length : 175mm


ALSO SEARCHED AS:
MG90S, Micro servo MG90, Metal geared Micro servo

DESCRIPTION

Add more power to your robot with this metal-geared MG90S servo. The tiny little servo can rotate approximately 90 degrees (45 in each direction), and works just like the standard kinds you're used to but smaller. You can use any servo code, hardware or library to control these servos. Good for beginners who want to make stuff move without building a motor controller with feedback & gearbox, especially since it will fit in small places. Of course, its not nearly as strong as a standard servo. Works great with the Motor Shield for Arduino, our 16-channel Servo Driver, or by just wiring up with the Servo library. Comes with a few horns and hardware.

Please note, this servo will 'hold' the position even when no signal is sent!


FEATURES

Item Name: MG90S  servo

Weight: about 13.4g

Dimension: 22.8 x 12.2 x 28.5mm

Stall Torque: 1.8kg/cm(4.8V ),2.2kg/cm(6V)

Operating Speed: 0.1sec/60degree(4.8v),0.08sec/60degree(6v)

Operating Voltage: 4.8-6.0V

Motor Type: coreless motor

Connector Wire Length : 175mm


ALSO SEARCHED AS:
MG90S, Micro servo MG90, Metal geared Micro servo
