DRV 8825 Stepper Motor Driver Module
Rated 3.5/5 based on 11 customer reviews

DRV 8825 Stepper Motor Driver Module

  • Order within
Available: In Stock
₹ 133.34 ₹ 299.00

DESCRIPTION

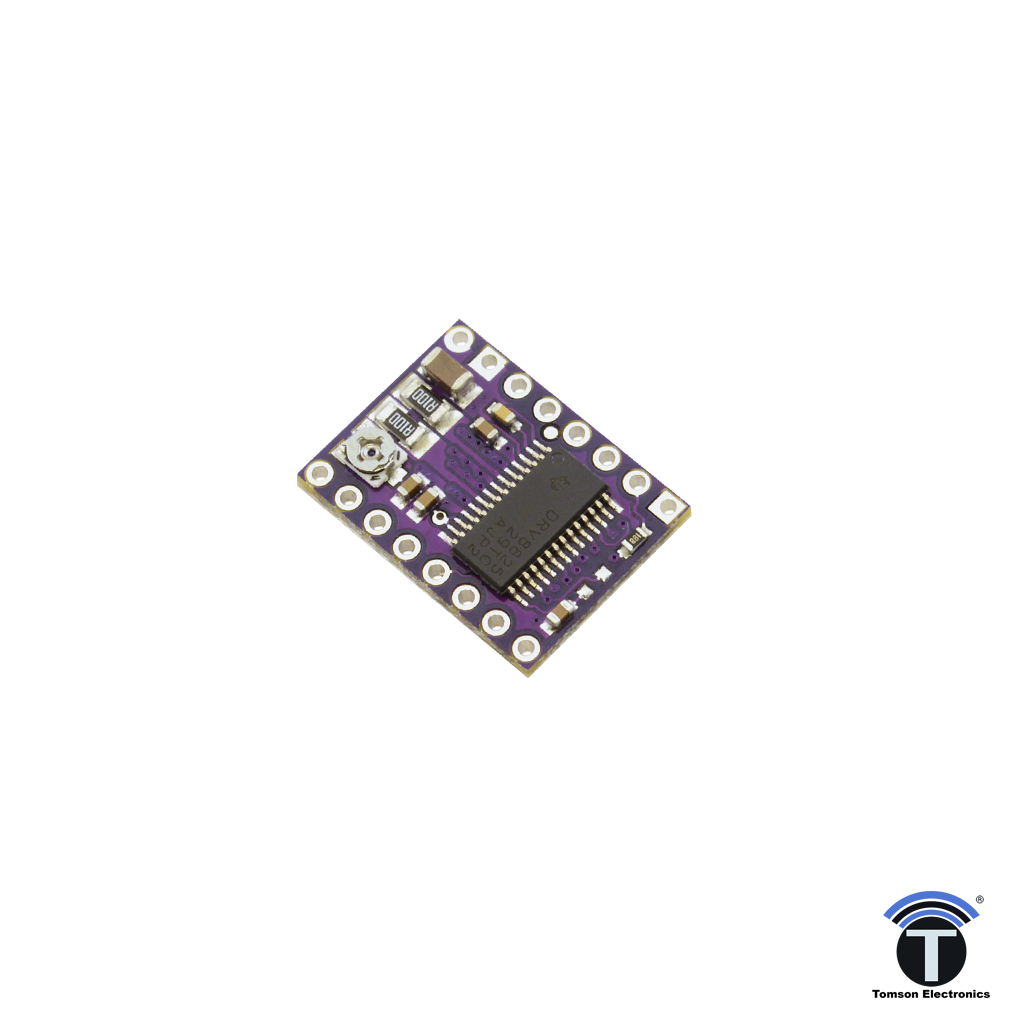

The DRV8825 stepper motor driver carrier is a breakout board for TI’s DRV8825 microstepping bipolar stepper motor driver. The module has a pinout and interface that are nearly identical to those of the A4988 stepper  motor driver carriers, so it can be used as a higher-performance drop-in replacement for those boards in many applications. The DRV8825 features adjustable current limiting, overcurrent and overtemperature protection, and six microstep resolutions (down to 1/32-step). It operates from 8.2 – 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling.The product is available at Tomson Electronics  Kochi, Kerala,  at the most affordable and cheapest prices.

FEATURES

  • Supply Voltage : 8.2 – 42 VDC.
  • Current Capacity : 2.2A max(24V).
  • Continuous current per phase : 1.5 A.
  • Minimum Logic voltage : 2.5V.
  • Maximum Logic Voltage : 5V.
  • Microstep resolutions : full, 1/2, 1/4, 1/8, 1/16, and 1/32.
  • Dimensions : 15 x 20 mm.
  • Weight : 20 gm.

DEVELOPMENT SOURCES

DRV8825 datasheet

ALSO SEARCHED AS:

DRV 8825 Stepper Motor Driver Module,DRV 8825 Stepper Motor Driver,DRV 8825 Stepper Motor ,DRV 8825
