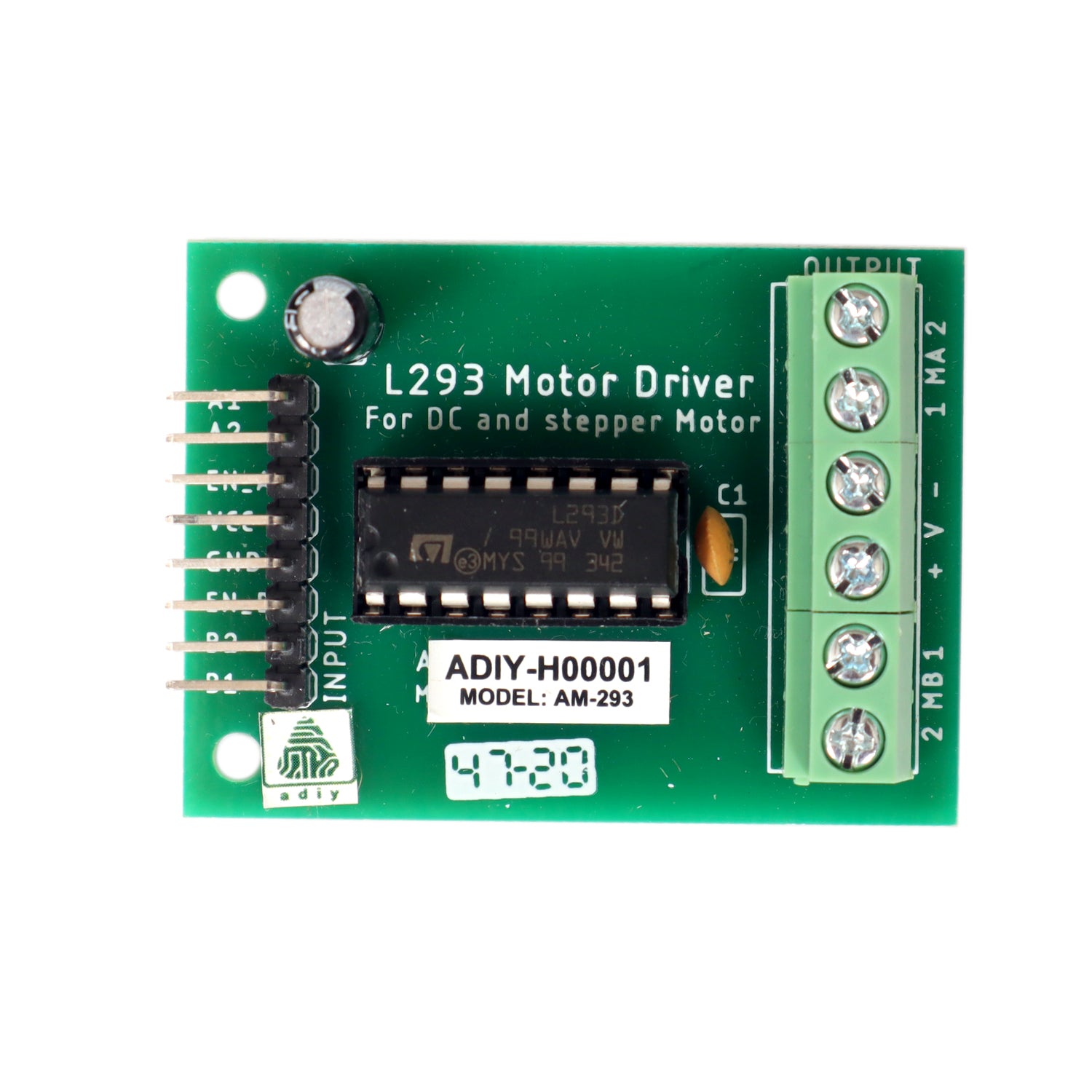

L 293 Motor Driver Module
Rated 3.5/5 based on 11 customer reviews

L 293 Motor Driver Module

  • Order within
Available: In Stock
₹ 116.82 ₹ 199.00

DESCRIPTION

Designed with the most popular L293 motor driver IC, module is the most suited for robotics and mechatronic applications like driving a motor using an Arduino, Raspberry Pi, switches or relays. The module can be used to control both DC and Stepper motors and is commonly used in DIY kits like Line Followers, Micro mouse, robotic arms etc. It can be used to drive motors up to 36 V with a continuous DC current up to 600mA. Two modules can be paralleled to double the maximum current or connected in series to increase the maximum input voltage.

This motor driver uses screw terminals for easy connections, mounting holes for easy mounting, back EMF protection circuit, you may use our Jumper Wires to make the connections.The project designed around L293D IC. The L293D device is quadruple high-current half-H driver. The 293D is designed to provide bidirectional drive current up to 600mA a voltage from 5V to 36V. L293D Adapter Board can be used as dual DC motor driver or bipolar stepper motor driver.  Useful in robotics application, bidirectional DC motor controller and stepper motor driver.  Separate logic supply to reduce dissipation.  L293D includes the output clamping diodes for protections.

FEATURES

  • Motor/Logic supply 5 to 36 V
  • Logic controls input 7 VDC max
  • Inhibit facility/enable
  • High Noise immunity
  • Over temperature protection
  • Capable of delivering output current up to 600 mA per channel
  • The control/interface lines are accessible with Berg connector
  • Header connector for motor and supply connection
  • PCB dimensions 36 mm x 24 mm

DEVELOPMENT SOURCES

PDF icon L293D.pdf

ALSO SEARCHED AS:

 L 293 Motor Driver Module, L 293 Motor , L 293 Module





DESCRIPTION

Designed with the most popular L293 motor driver IC, module is the most suited for robotics and mechatronic applications like driving a motor using an Arduino, Raspberry Pi, switches or relays. The module can be used to control both DC and Stepper motors and is commonly used in DIY kits like Line Followers, Micro mouse, robotic arms etc. It can be used to drive motors up to 36 V with a continuous DC current up to 600mA. Two modules can be paralleled to double the maximum current or connected in series to increase the maximum input voltage.

This motor driver uses screw terminals for easy connections, mounting holes for easy mounting, back EMF protection circuit, you may use our Jumper Wires to make the connections.The project designed around L293D IC. The L293D device is quadruple high-current half-H driver. The 293D is designed to provide bidirectional drive current up to 600mA a voltage from 5V to 36V. L293D Adapter Board can be used as dual DC motor driver or bipolar stepper motor driver.  Useful in robotics application, bidirectional DC motor controller and stepper motor driver.  Separate logic supply to reduce dissipation.  L293D includes the output clamping diodes for protections.

FEATURES

  • Motor/Logic supply 5 to 36 V
  • Logic controls input 7 VDC max
  • Inhibit facility/enable
  • High Noise immunity
  • Over temperature protection
  • Capable of delivering output current up to 600 mA per channel
  • The control/interface lines are accessible with Berg connector
  • Header connector for motor and supply connection
  • PCB dimensions 36 mm x 24 mm

DEVELOPMENT SOURCES

PDF icon L293D.pdf

ALSO SEARCHED AS:

 L 293 Motor Driver Module, L 293 Motor , L 293 Module
