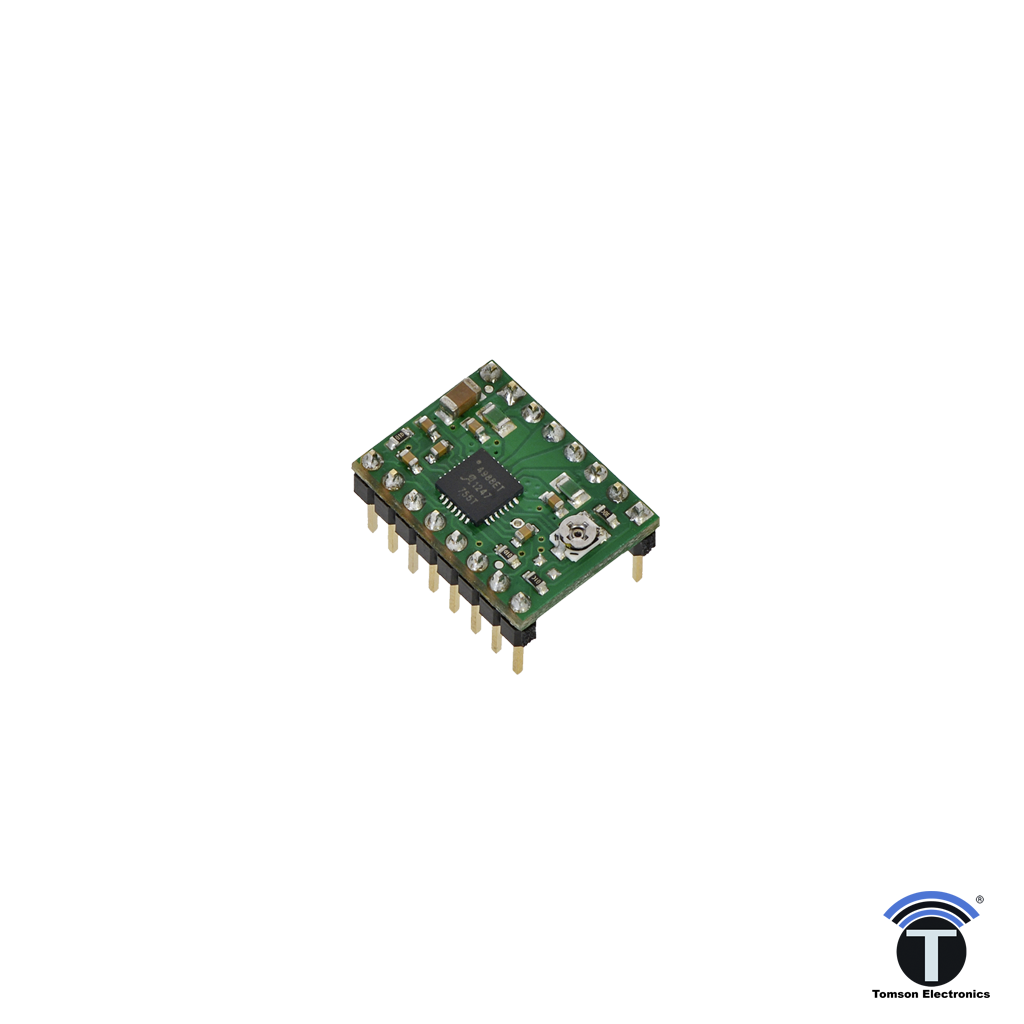

A 4988 STEPPER MOTOR DRIVER MODULE
Rated 3.5/5 based on 11 customer reviews

A 4988 STEPPER MOTOR DRIVER MODULE

  • Order within
Available: In Stock
₹ 94.40 ₹ 112.30

DESCRIPTION

This is an Arduino compatible break out board for the A4988 microstepping stepper motor driver. It can drive a bipolar stepper motor with an output current of up to up to 2 A per coil. It works with a wide range of power supply voltages, from 8V to 35V. The product is available at Tomson Electronics Kochi, Kerala, Tamil Nadu, India.

This is a break out board for the A4988 microstepping bipolar stepper motor driver. It can drive a bipolar stepper motor with an output current of up to 2 A per coil. It is suitable for driving a stepper motor from 8 V to 35 V which makes it ideal for 3D printers.

FEATURES

  • Adjustable output current via potentiometer
  • Automatic current decay mode detection
  • Synchronous rectification for low power dissipation
  • Over temperature shutdown circuit
  • Under-voltage lock out
  • Cross-current protection
  • Over current shutdown
  • 4-layer, 2 oz copper PCB for improved heat dissipation
  • Output Current: 2 A
  • Five step resolutions: full-step, half-step, 1/4-step, 1/8-step, and 1/16-step
  • PCB Size: 15 mm x 20 mm

DEVELOPMENT SOURCES

application/pdf A4988 Datasheet.pdf

ALSO SEARCHED AS:

A 4988 Stepper Motor Driver Module,A 4988 Stepper Motor Module,A 4988



DESCRIPTION

This is an Arduino compatible break out board for the A4988 microstepping stepper motor driver. It can drive a bipolar stepper motor with an output current of up to up to 2 A per coil. It works with a wide range of power supply voltages, from 8V to 35V. The product is available at Tomson Electronics Kochi, Kerala, Tamil Nadu, India.

This is a break out board for the A4988 microstepping bipolar stepper motor driver. It can drive a bipolar stepper motor with an output current of up to 2 A per coil. It is suitable for driving a stepper motor from 8 V to 35 V which makes it ideal for 3D printers.

FEATURES

  • Adjustable output current via potentiometer
  • Automatic current decay mode detection
  • Synchronous rectification for low power dissipation
  • Over temperature shutdown circuit
  • Under-voltage lock out
  • Cross-current protection
  • Over current shutdown
  • 4-layer, 2 oz copper PCB for improved heat dissipation
  • Output Current: 2 A
  • Five step resolutions: full-step, half-step, 1/4-step, 1/8-step, and 1/16-step
  • PCB Size: 15 mm x 20 mm

DEVELOPMENT SOURCES

application/pdf A4988 Datasheet.pdf

ALSO SEARCHED AS:

A 4988 Stepper Motor Driver Module,A 4988 Stepper Motor Module,A 4988
