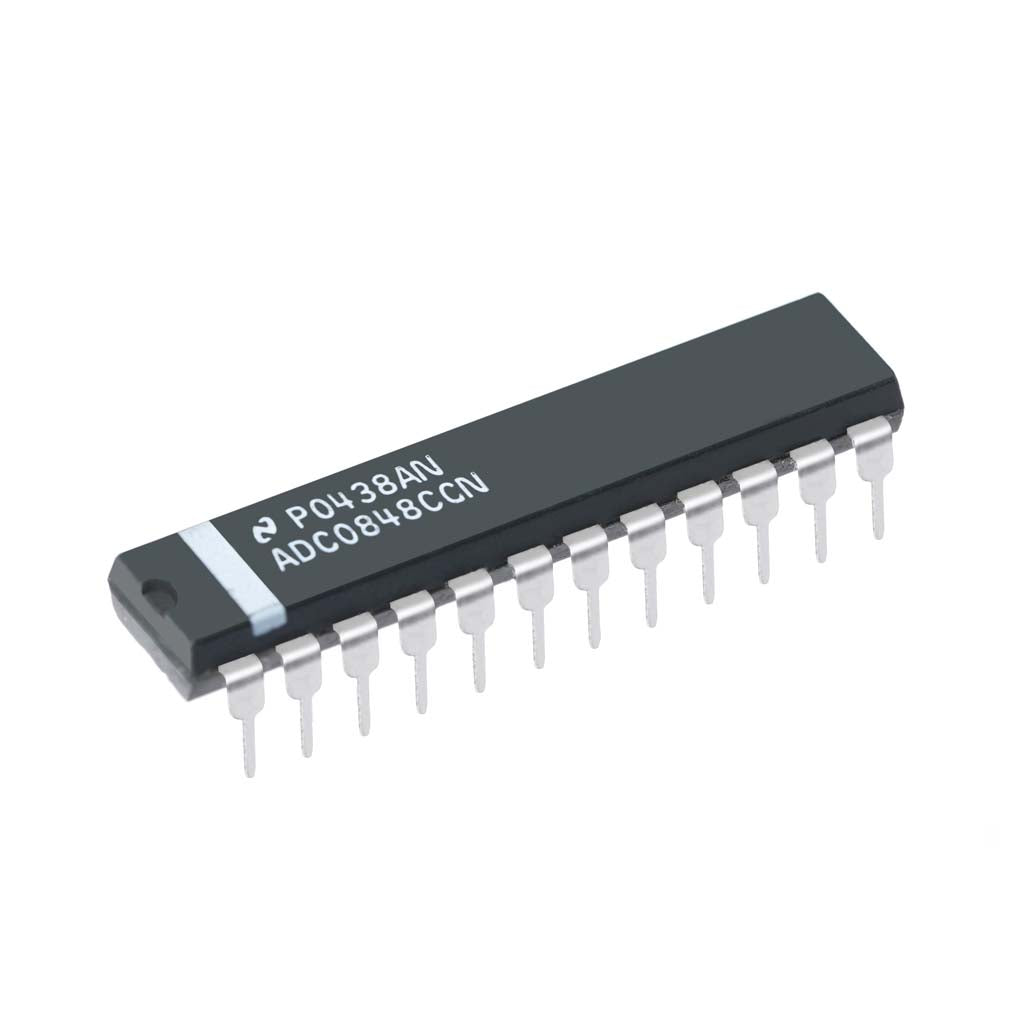

ADC 0848
Rated 3.5/5 based on 11 customer reviews

ADC 0848

  • Order within
Available: In Stock
₹ 311.85

ADC 0848

⁍The  ADC0848 is a CMOS 8-bit successive approximation A/D converters with versatile analog input multiplexers. The 4-channel or 8-channel multiplexers can be software configured for single-ended, differential or pseudo-differential modes of operation.

⁍The differential mode provides low frequency input common mode rejection and allows offsetting the analog range of the converter. In addition, the A/D's reference can be adjusted enabling the conversion of reduced analog ranges with 8-bit resolution.

⁍The A/Ds are designed to operate from the control bus of a wide variety of microprocessors. TRI-STATE output latches that directly drive the data bus permit the A/Ds to be configured as memory locations or I/O devices to the microprocessor with no interface logic necessary.



ADC 0848 Features

  • ⁍Easy Interface to All Microprocessors
  • ⁍Operates Ratiometrically or with 5 VDC Voltage Reference
  • ⁍No Zero or Full-Scale Adjust Required
  • ⁍4-Channel or 8-Channel Multiplexer with Address Logic
  • ⁍Internal Clock
  • ⁍0V to 5V Input Range with Single 5V Power Supply
  • ⁍Standard Width 20-Pin or 24-Pin PDIP
  • ⁍28 Pin PLCC Packag
  • ⁍Resolution: 8 Bits
  • ⁍Total Unadjusted Error: ±½ LSB and ± 1 LSB
  • ⁍Single Supply: 5 VDC
  • ⁍Low Power: 15 mW
  • ⁍Conversion Time: 40 μs

Developer: ADC0848_Datasheet

ADC 0848

⁍The  ADC0848 is a CMOS 8-bit successive approximation A/D converters with versatile analog input multiplexers. The 4-channel or 8-channel multiplexers can be software configured for single-ended, differential or pseudo-differential modes of operation.

⁍The differential mode provides low frequency input common mode rejection and allows offsetting the analog range of the converter. In addition, the A/D's reference can be adjusted enabling the conversion of reduced analog ranges with 8-bit resolution.

⁍The A/Ds are designed to operate from the control bus of a wide variety of microprocessors. TRI-STATE output latches that directly drive the data bus permit the A/Ds to be configured as memory locations or I/O devices to the microprocessor with no interface logic necessary.



ADC 0848 Features

  • ⁍Easy Interface to All Microprocessors
  • ⁍Operates Ratiometrically or with 5 VDC Voltage Reference
  • ⁍No Zero or Full-Scale Adjust Required
  • ⁍4-Channel or 8-Channel Multiplexer with Address Logic
  • ⁍Internal Clock
  • ⁍0V to 5V Input Range with Single 5V Power Supply
  • ⁍Standard Width 20-Pin or 24-Pin PDIP
  • ⁍28 Pin PLCC Packag
  • ⁍Resolution: 8 Bits
  • ⁍Total Unadjusted Error: ±½ LSB and ± 1 LSB
  • ⁍Single Supply: 5 VDC
  • ⁍Low Power: 15 mW
  • ⁍Conversion Time: 40 μs

Developer: ADC0848_Datasheet
