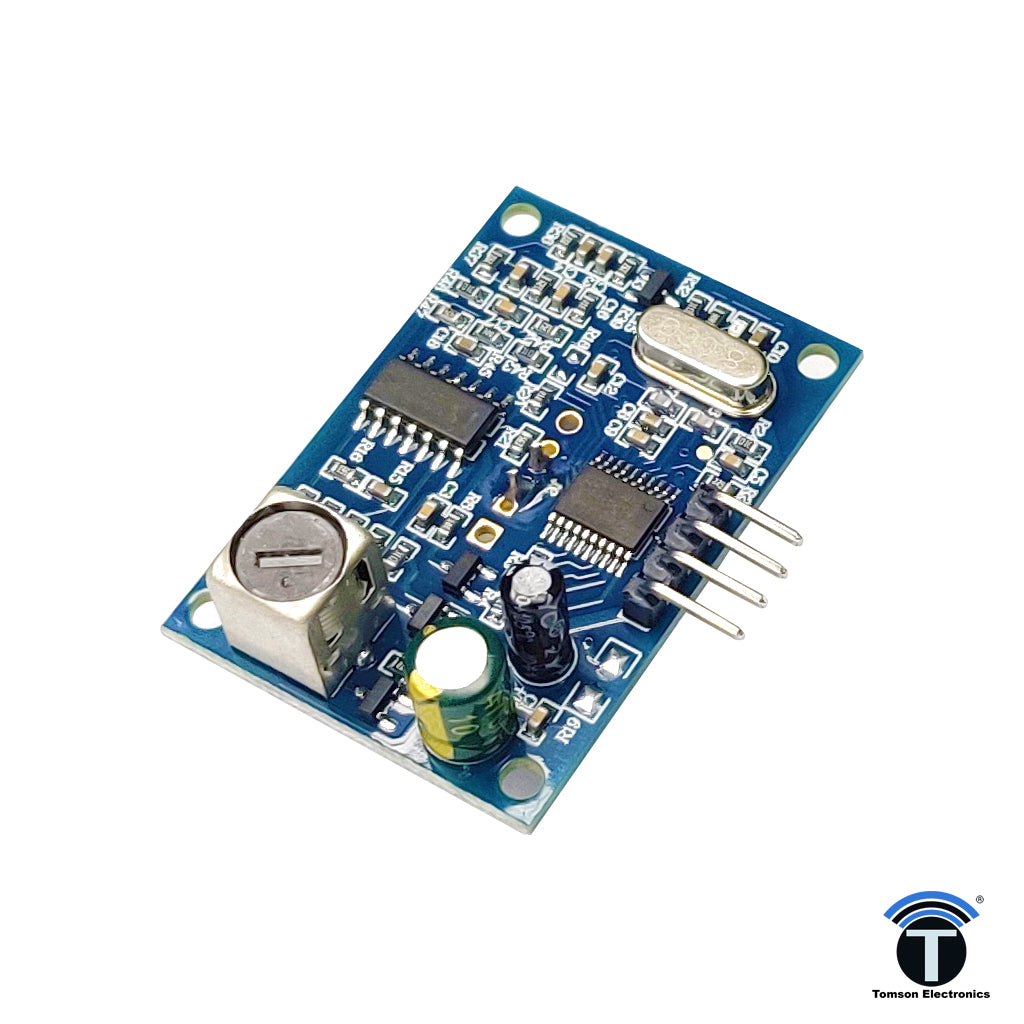

Waterproof Ultrasonic Distance Sensor Module JSN-SR04T

Available: In Stock
₹ 542.80 ₹ 999.00
  • Order within
Secure

DESCRIPTION

This Waterproof Ultrasonic Distance Sensor is an industrial grade sensor to measure distance. Interfacing with it is same as other cheap ultrasonic sensors, but it offers better performance and can be used in harsher environments and is waterproof too! It can be easily interfaced with Arduino and Sample codes and projects are available.

SPECIFICATIONS

  • Operating voltage: DC 5V
  • Quiescent current: 5mA
  • Total current draw: 30mA
  • Frequency: 40khz
  • Range: 25cm to 450cm
  • Resolution: about 0.5cm
  • Beam Angle: less than 50 degrees
  • Working temperature: -10 ~ 70 Celsius
  • Storage temperature: -20 ~ 80 Celsius
  • Small size, easy to use
  • Low voltage, low power consumption
  • High accuracy
  • Strong anti-jamming

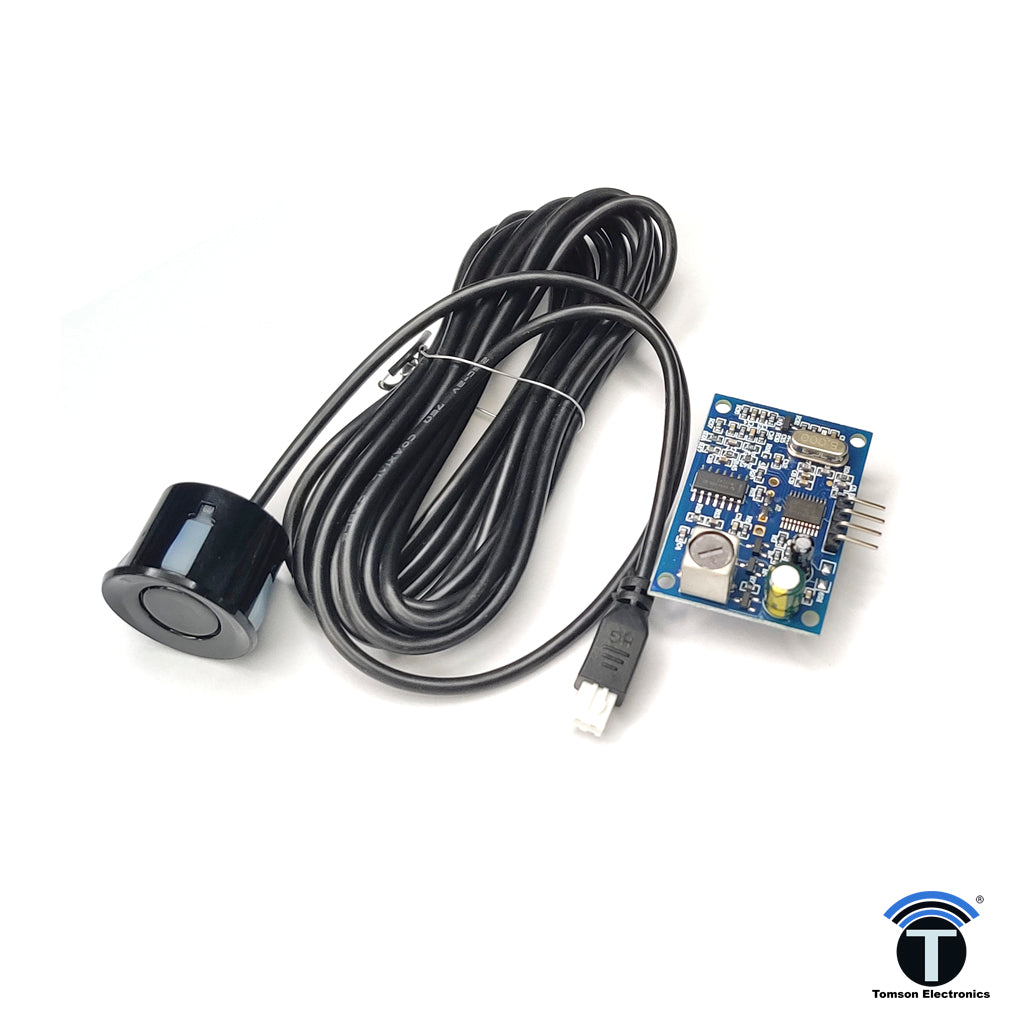

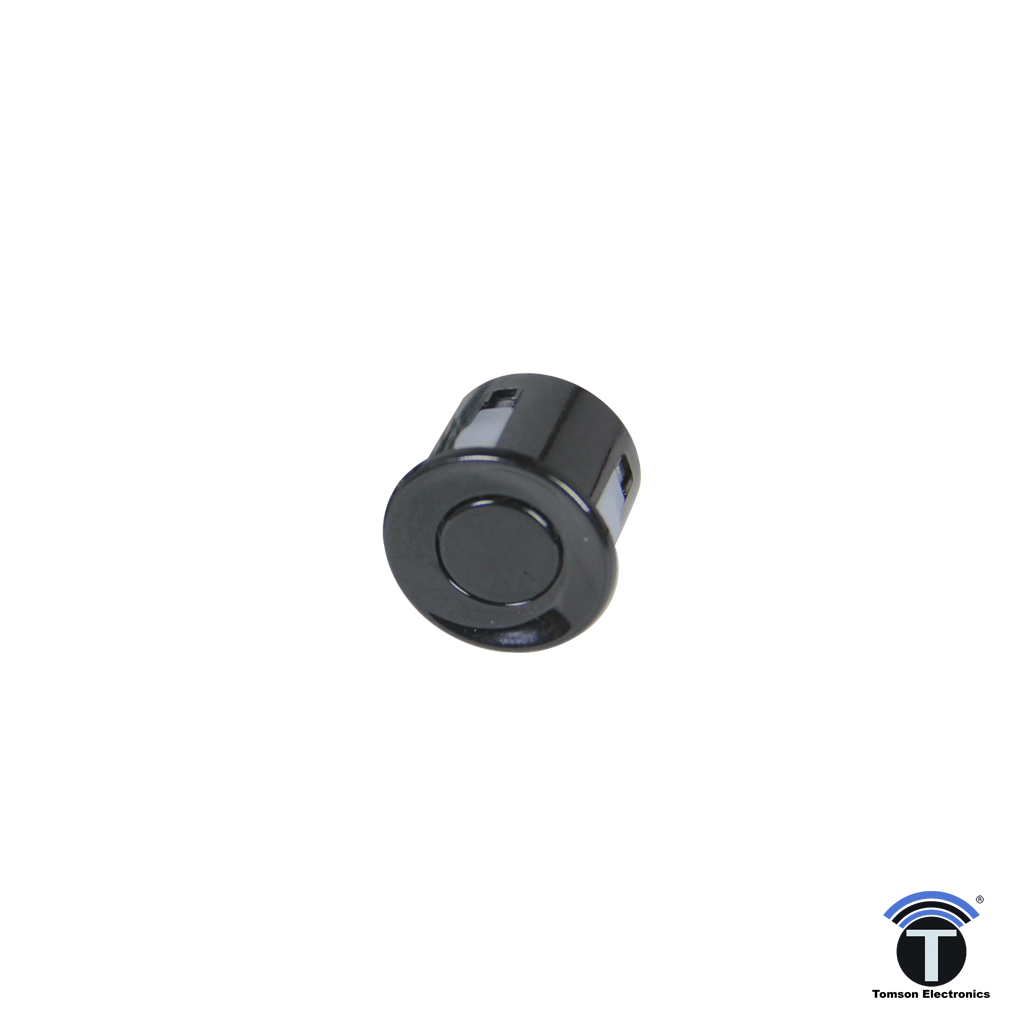

  • Integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions

    DEVELOPMENT SOURCES

     Datasheet
