Water Flow Sensor YF G1
Water Flow Sensor YF G1
Water Flow Sensor YF G1

Water Flow Sensor YF G1

Available: In Stock
₹ 967.60 ₹ 1,199.00

DESCRIPTION

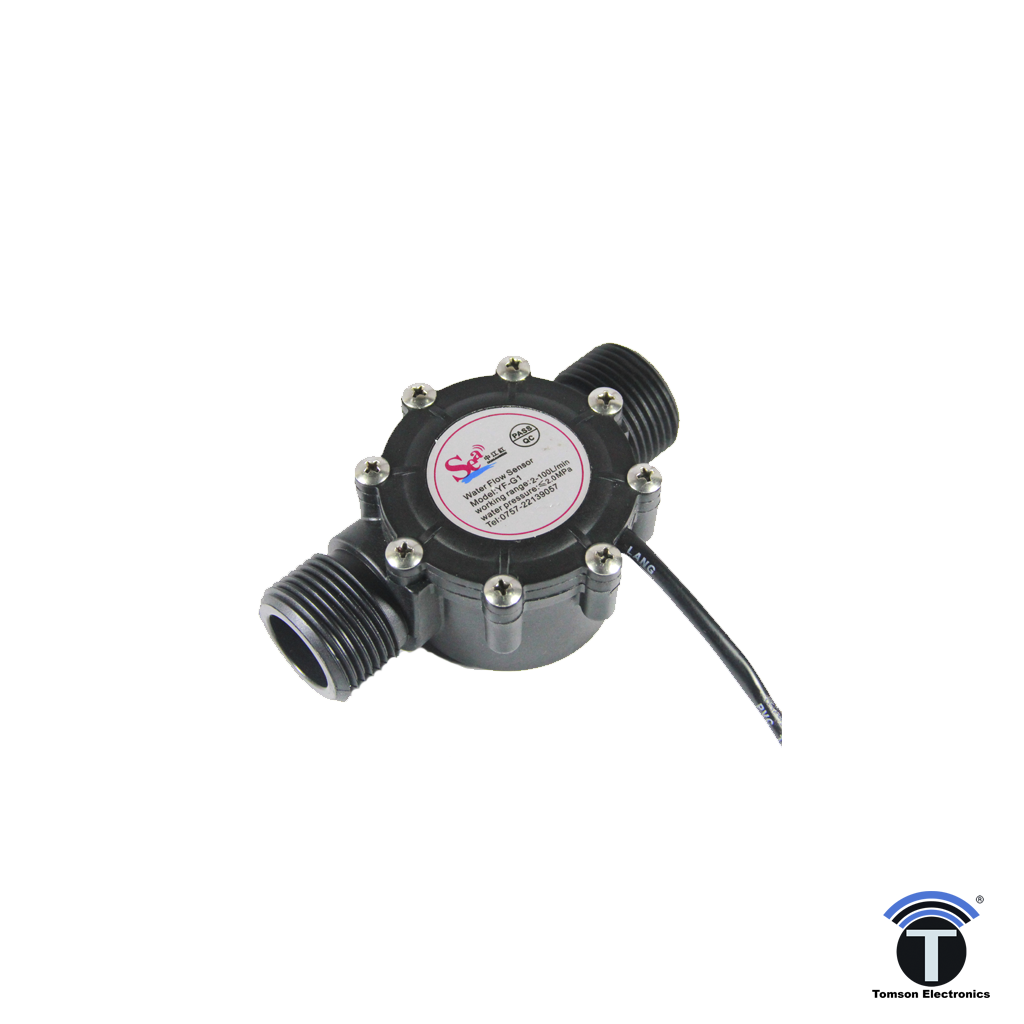

Water flow sensor consists of a plastic valve body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. This one is suitable to detect flow in water dispenser or coffee machine.

FEATURES

  • Compact, Easy to Install
  • High Sealing Performance
  • High-Quality Hall Effect Sensor
  • RoHS Compliant
  • Mini. Working Voltage: DC 4.5V
  • Working Voltage: DC 5V~18V
  • Flow Rate Range: 2~100L/min
  • Water pressure resistance: = >2MPa
  • Operating Temperature: = -20~85C
  • Insulation resistance: = >100MΩ
  • Characteristics of Flow pulse: f=(4.8*Q) Q=L/Min
  • Accuracy: ±3%
  • Connector type: G1
