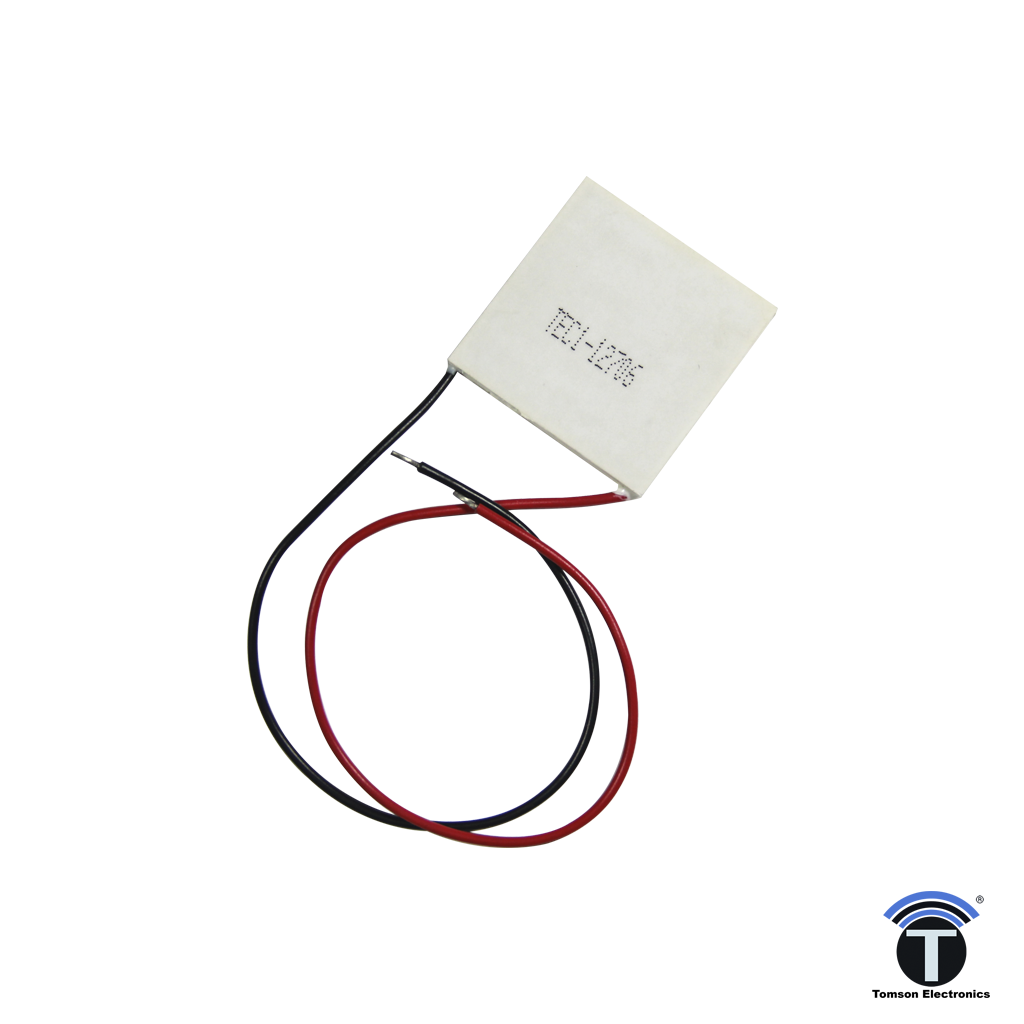

TEC1-12706 Thermoelectric Power Generator Peltier Module
Rated 3.5/5 based on 11 customer reviews

TEC1-12706 Thermoelectric Power Generator Peltier Module

  • Order within
Available: In Stock
₹ 171.10 ₹ 230.00
DESCRIPTION

Thermoelectric coolers (TEC or Peltier) create a temperature differential on each side. One side gets hot and the other side gets cool. Therefore, they can be used to either warm something up or cool something down, depending on which side is used. You can also use the temperature differential to generate electricity.

A thermoelectric cooling (TEC) module is a semiconductor-based electronic component that functions as a small heat pump. By applying DC power source to a TEC, heat will be transferred from one side of the module to the other. It creates a cold and hot side. They are widely used in industrial areas, for example, computer CPU, CCDs, portable refrigerators, medical instruments, and so on.

When exposed to different temperatures on both sides it will also work as a generator and generate electricity depending on the temperature difference.

FEATURES

Model number: TEC1-12706

Voltage: 12V

Vmax (V) : 15.4V

Imax (A) : 6A

QMax (W) : 92W

Internal resistance: 1.98 Ohm +/- 10%

Dimensions : 40mm x 40mm x 3.6mm

Type: Cooling Cells

Usage: Refrigerator/Warmer/Generator

ALSO SEARCHED AS:
Thermoelectric module, Peltier Module, TEC 1 - 12706



DESCRIPTION

Thermoelectric coolers (TEC or Peltier) create a temperature differential on each side. One side gets hot and the other side gets cool. Therefore, they can be used to either warm something up or cool something down, depending on which side is used. You can also use the temperature differential to generate electricity.

A thermoelectric cooling (TEC) module is a semiconductor-based electronic component that functions as a small heat pump. By applying DC power source to a TEC, heat will be transferred from one side of the module to the other. It creates a cold and hot side. They are widely used in industrial areas, for example, computer CPU, CCDs, portable refrigerators, medical instruments, and so on.

When exposed to different temperatures on both sides it will also work as a generator and generate electricity depending on the temperature difference.

FEATURES

Model number: TEC1-12706

Voltage: 12V

Vmax (V) : 15.4V

Imax (A) : 6A

QMax (W) : 92W

Internal resistance: 1.98 Ohm +/- 10%

Dimensions : 40mm x 40mm x 3.6mm

Type: Cooling Cells

Usage: Refrigerator/Warmer/Generator

ALSO SEARCHED AS:
Thermoelectric module, Peltier Module, TEC 1 - 12706
