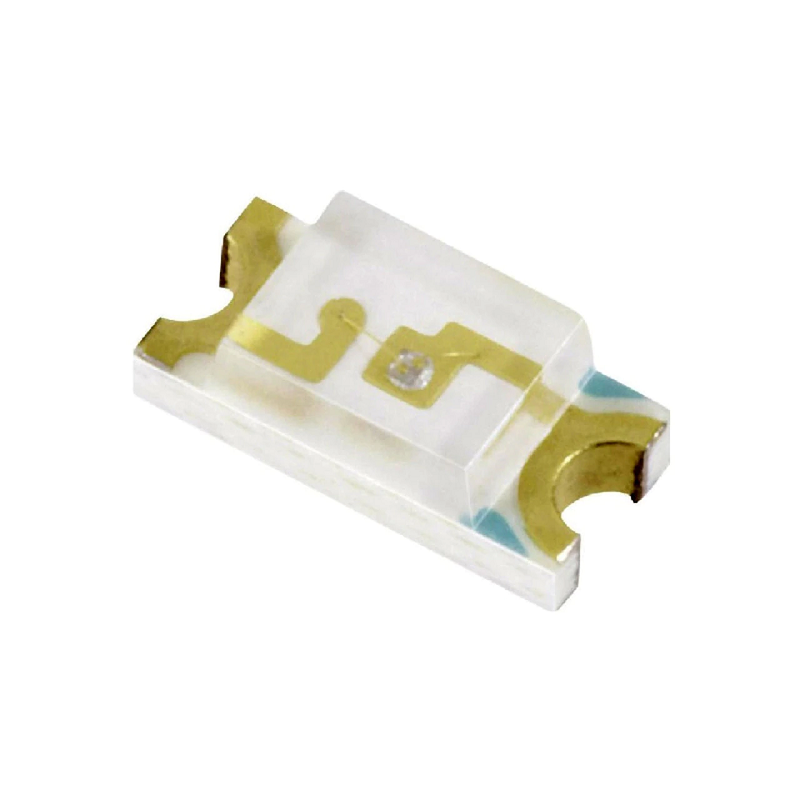

SMD LED Red 1206 – Surface Mount Indicator LED

• Package Size: 1206 (3.2 × 1.6 mm)
• Color: Red
• Forward Voltage: 1.8V – 2.2V (typ.)
• Forward Current: 20mA (max)
• Luminous Intensity: Medium to high brightness (batch dependent)
• Mounting Type: Surface Mount (SMD)
• Polarity: Cathode marked by notch/line on package

• PCB status indicators & signal lights
• IoT and wearable devices
• Arduino, ESP32, STM32 embedded circuits
• Consumer electronics & compact LED displays
• Battery chargers, power indicators, and control boards

• Requires current-limiting resistor (typically 220Ω–1KΩ depending on supply voltage).
• Use hot-air reflow, soldering iron with fine tip, or reflow oven for mounting.
• Observe polarity during soldering to prevent LED damage.

• 1 × SMD LED Red 1206
