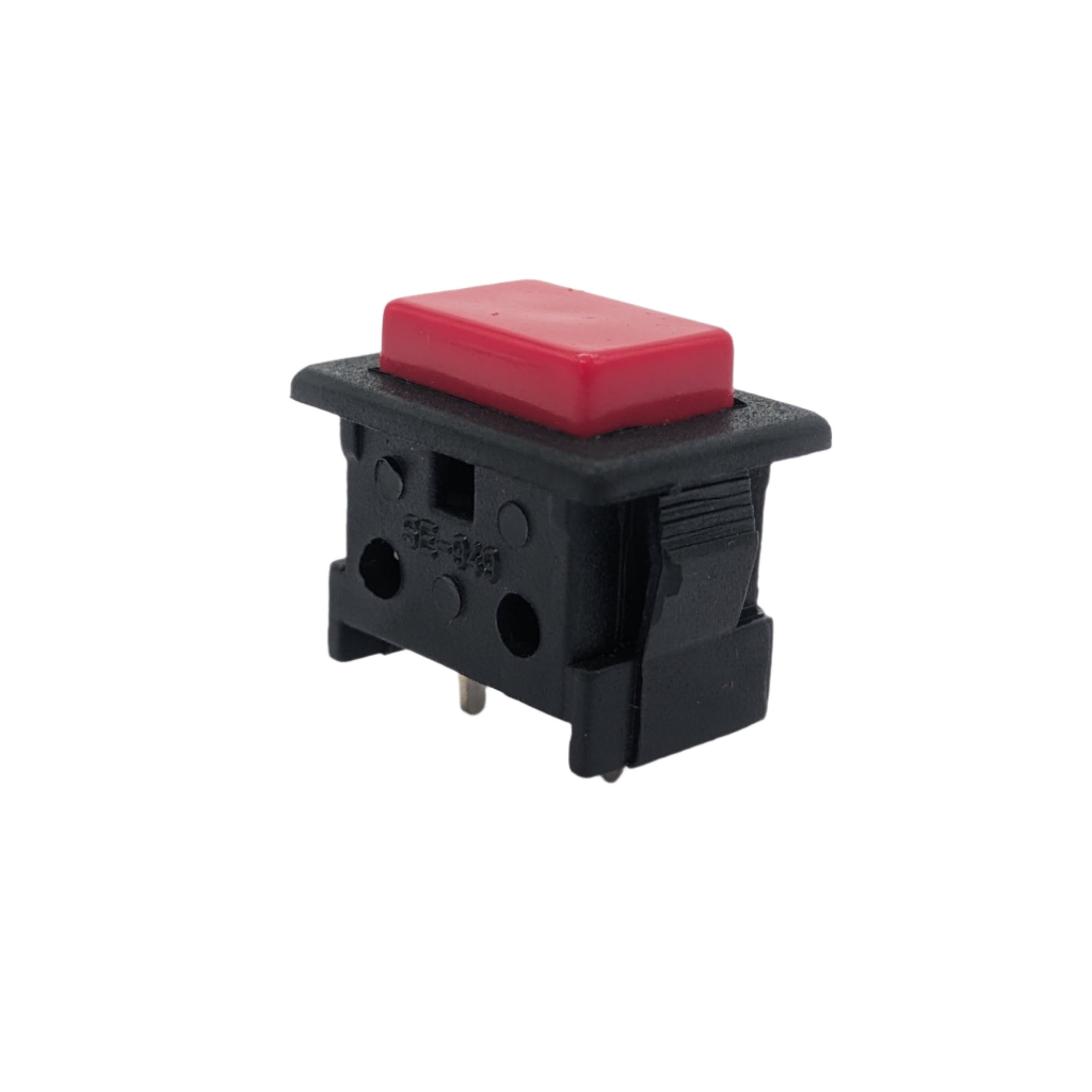

SE949 Push Button Rectangular Snap Mounting
ELECTRO MECHANICAL

SE949 Push Button Rectangular Snap Mounting

  • Vendor:SOYNIA
  • Check Pincode Serviceability


Availability: In Stock
₹ 15.00
(All prices are tax inclusive)
Wishlist Compare

SE949 Push Button Rectangular Snap Mounting is used in applications like application in general industrial equipment and home appliances.
SE949 Push Button Rectangular Snap Mounting main features are:
High number of Operations
Long life
Snap Mounting Arrangement

H.V Breakdown test 1 KV AC For 1 Minute
Contact Rating 2 A 250 V AC
Contact Resistance < 10 m ohms
Mechanical Life (No. Of Operations) 5,00,000
Electrical Life (No. Of Operations)
1,00,000
Ambient Temperature -25 ° C to +80 ° C

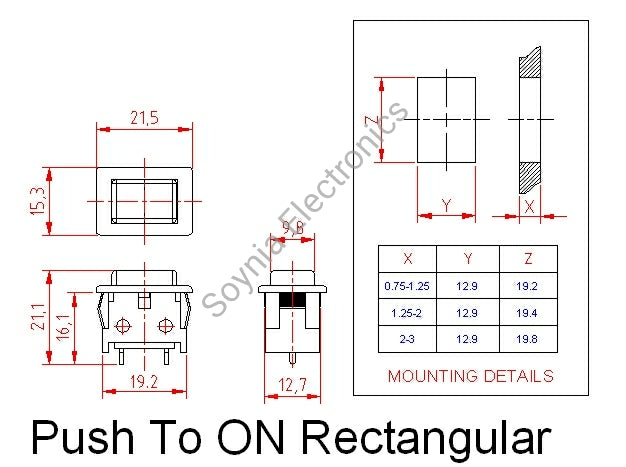

Mounting Arrangement Snap in Mounting
Housing Colors Available Black , White
Button Colors Available
Black , White , Red , Yellow , Green , Blue
Housing Material Polyamide 66 UL 94 V3
Push Button Material Polyamide 66 UL 94 V3
Terminals Material Brass Silver Plated
Terminal Type Solder
