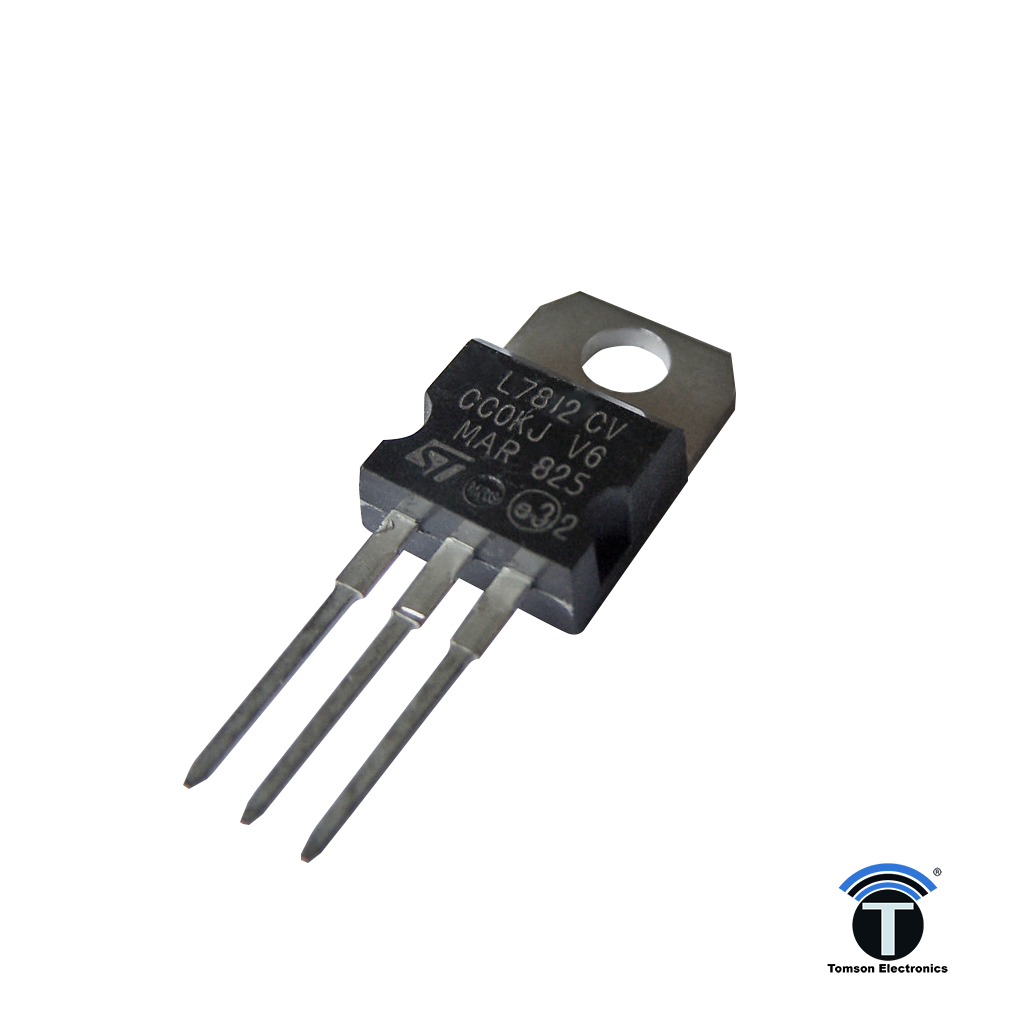

Regulator IC 7812
DESCRIPTION
Terminal 1A Positive Voltage Regulator Features General Description Output Current up to 1A The LM78XX series of three terminal positive regulators terminal 1A P Output Voltages of 5, 6, 8, 9, 10, 12, 15, 18, 24 are available in the TO-220 package and with several Thermal Overload Protection fixed output voltages, making them useful in a widerange of applications. Each type employs internal current Short Circuit Protection limiting, thermal shut down and safe operating area pro- Output Transistor Safe Operating Area Protection tection, making it essentially indestructible. If adequateheat sinking is provided, they can deliver over 1A output ositive current. Although designed primarily as fixed voltageregulators, these devices can be used with external com-ponents to obtain adjustable voltages and currents.
REGULATOR IC 7812
Also Searched as regulator ic, 7812
