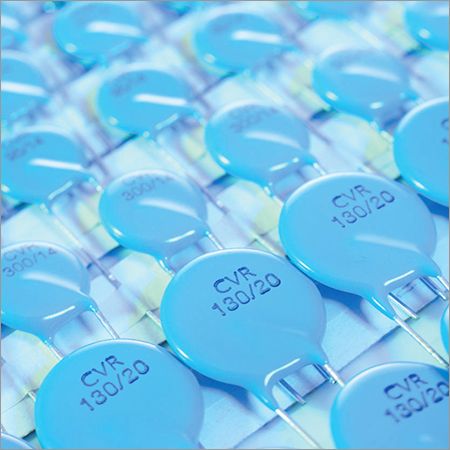

Plastic Metal Oxide Varistor 30VAC - 680VAC
Plastic Metal Oxide Varistor 30VAC - 680VAC
CEDICOM ELECTRONICS

Plastic Metal Oxide Varistor 30VAC - 680VAC

2 reviews
  • Share
  • Tweet
Product SKU: RES-05563
Available:
Only 253 items in stock
253 items in stock
In stock
Pre-order
Out of stock
₹ 4.00 (Incl.Tax)
Value

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
For Bulk Enquries:
+91 90614 50999
  • Description
  • Specifications:
  • Applications:
  • Datasheet:
  • Reviews

The Plastic Metal Oxide Varistor (MOV) 30VAC - 680VAC is a voltage-dependent resistor designed to protect electronic circuits from transient voltage surges, such as lightning or electrostatic discharge. It offers a wide operating voltage range and robust surge current handling capabilities.

Key Features:

  • Wide Operating Voltage Range: Suitable for applications from 30VAC to 680VAC.
  • High Surge Current Capability: Can withstand peak currents up to 3,500A (8/20μs waveform).
  • Fast Response Time: Reacts in less than 25 nanoseconds to transient over-voltages.
  • Low Clamping Voltage: Provides effective protection by limiting over-voltage to safe levels.
  • Compact Design: Epoxy resin coating ensures insulation and durability in a small form factor.

Package Includes:

  • 1 x Plastic Metal Oxide Varistor 30VAC - 680VAC

  • Operating Voltage Range: 30VAC to 680VAC
  • Maximum Clamping Voltage: Up to 1,240V depending on specific model
  • Surge Current Handling: Up to 3,500A (8/20μs waveform)
  • Energy Absorption: Up to 118J (10/1000μs waveform)
  • Response Time: <25ns
  • Operating Temperature Range: -40°C to +85°C
  • Storage Temperature Range: -40°C to +125°C
  • Insulation Resistance: >100MΩ
  • Material: Zinc Oxide with Epoxy Resin Coating
  • Compliance: RoHS Compliant

  • Surge protection in consumer electronics
  • Protection of communication and measuring instruments
  • Industrial equipment surge suppression
  • Relay and electromagnetic valve surge absorption
  • Semiconductor device protection (transistors, diodes, ICs)

Click here to view the datasheet
