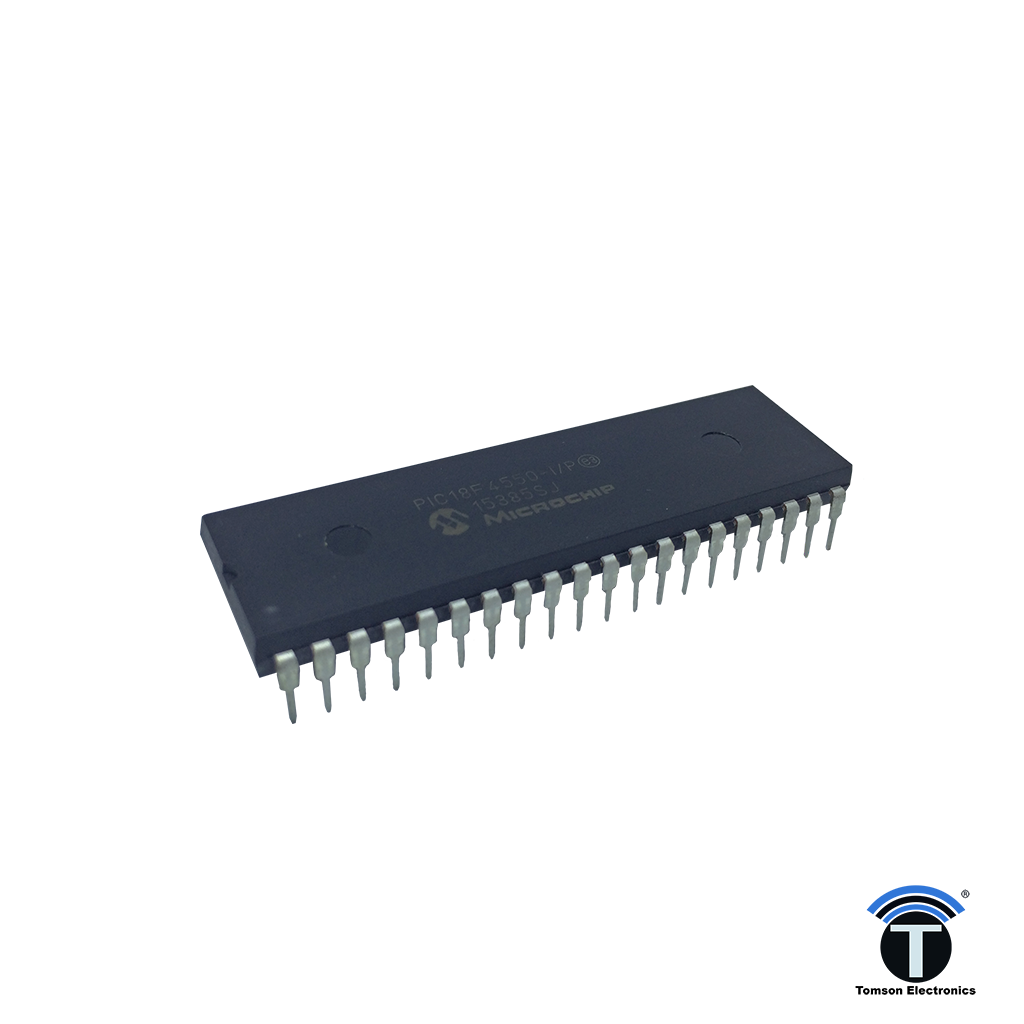

PIC 18 F 4550
Rated 3.5/5 based on 11 customer reviews

PIC 18 F 4550

  • Order within
Available: In Stock
₹ 311.85

DESCRIPTION

Ideal for low power (nanoWatt) and connectivity applications that benefit from the availability of three serial ports: FS-USB(12Mbit/s), I²C™ and SPI™ (up to 10 Mbit/s) and an asynchronous (LIN capable) serial port (EUSART). Large amounts of RAM memory for buffering and Enhanced Flash program memory make it ideal for embedded control and monitoring applications that require periodic connection with a (legacy free) personal computer via USB for data upload/download and/or firmware updates.

FEATURES

  • Program Memory Type: Flash
  • Program Memory Size (KB):32
  • CPU Speed (MIPS/DMIPS):12
  • SRAM Bytes:2,048
  • Data EEPROM/HEF (bytes):256
  • Digital Communication Peripherals:1-UART, 1-SPI, 1-I2C1-MSSP(SPI/I2C)
  • Capture/Compare/PWM Peripherals:1 CCP, 1 ECCP,
  • Timers:1 x 8-bit, 3 x 16-bit
  • ADC Input:13 ch, 10-bit
  • Number of Comparators:2
  • Number of USB Modules:1, FS Device
  • Temperature Range (C):-40 to 85
  • Operating Voltage Range (V):2 to 5.5
  • Pin Count: 40
  • Full Speed USB 2.0 (12Mbit/s) interface
  • 1K byte Dual Port RAM + 1K byte GP RAM
  • Full Speed Transceiver
  • 16 Endpoints (IN/OUT)
  • Streaming Port
  • Internal Pull Up resistors (D+/D-)
  • 48 MHz performance (12 MIPS)
  • Pin-to-pin compatible with PIC16C7X5

DEVELOPMENT SOURCES

 PIC 18 F 4550

ALSO SEARCHED AS:

PIC 18 F 4550, PIC 18 F 4550 buy online, PIC 18 F 4550 price in India.

DESCRIPTION

Ideal for low power (nanoWatt) and connectivity applications that benefit from the availability of three serial ports: FS-USB(12Mbit/s), I²C™ and SPI™ (up to 10 Mbit/s) and an asynchronous (LIN capable) serial port (EUSART). Large amounts of RAM memory for buffering and Enhanced Flash program memory make it ideal for embedded control and monitoring applications that require periodic connection with a (legacy free) personal computer via USB for data upload/download and/or firmware updates.

FEATURES

  • Program Memory Type: Flash
  • Program Memory Size (KB):32
  • CPU Speed (MIPS/DMIPS):12
  • SRAM Bytes:2,048
  • Data EEPROM/HEF (bytes):256
  • Digital Communication Peripherals:1-UART, 1-SPI, 1-I2C1-MSSP(SPI/I2C)
  • Capture/Compare/PWM Peripherals:1 CCP, 1 ECCP,
  • Timers:1 x 8-bit, 3 x 16-bit
  • ADC Input:13 ch, 10-bit
  • Number of Comparators:2
  • Number of USB Modules:1, FS Device
  • Temperature Range (C):-40 to 85
  • Operating Voltage Range (V):2 to 5.5
  • Pin Count: 40
  • Full Speed USB 2.0 (12Mbit/s) interface
  • 1K byte Dual Port RAM + 1K byte GP RAM
  • Full Speed Transceiver
  • 16 Endpoints (IN/OUT)
  • Streaming Port
  • Internal Pull Up resistors (D+/D-)
  • 48 MHz performance (12 MIPS)
  • Pin-to-pin compatible with PIC16C7X5

DEVELOPMENT SOURCES

 PIC 18 F 4550

ALSO SEARCHED AS:

PIC 18 F 4550, PIC 18 F 4550 buy online, PIC 18 F 4550 price in India.
