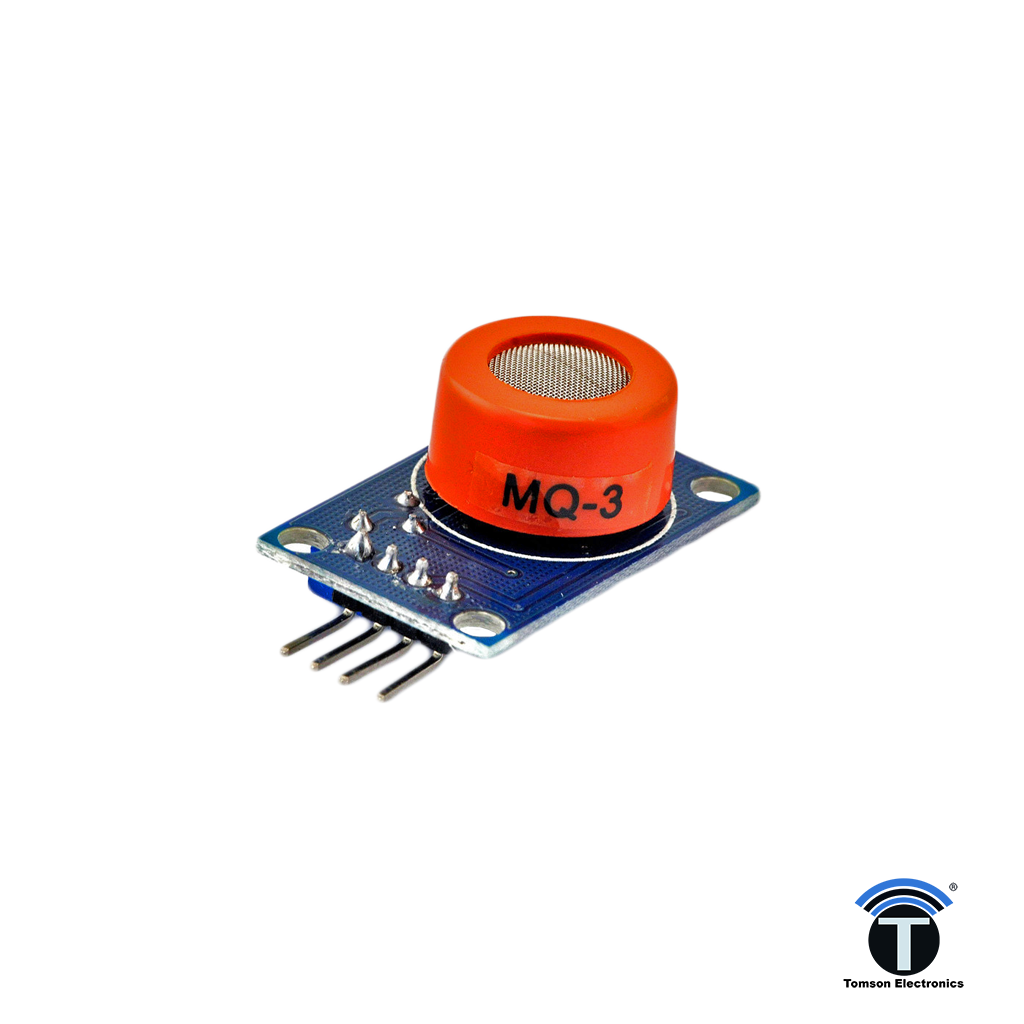

MQ 3 - Alcohol Gas Sensor Module
GAS SENSOR

MQ 3 - Alcohol Gas Sensor Module

  • Vendor:TOMSON ELECTRONICS
  • Check Pincode Serviceability


Availability: In Stock
₹ 142.00
(All prices are tax inclusive)
Wishlist Compare

MQ-3 module is has a high sensitivity for detecting Alcohol and low sensitivity for Benzine, CH4, Hexane, LPG, CO. The module gives out the concentration of the gases as an analog voltage equivalent to the concentration of the gases. The module also has an onboard comparator for comparing against an adjustable preset value and giving out a digital high or low.



Copy the following code to your Arduino IDE to test the MQ 5 Module

/*

Testing MQ 3 GAS Sensor with serial monitor
Suitable for detecting of Alcohol, Benzine, CH4, Hexane, LPG, CO.
Dev: Tom Joseph, www.tomsonelectronics.com

*/

const int gasPin = A0; //GAS sensor output pin to Arduino analog A0 pin


void setup()
{
Serial.begin(9600); //Initialize serial port - 9600 bps
}

void loop()
{
Serial.println(analogRead(gasPin));
delay(1000); // Print value every 1 sec.
}



Specifications

Voltage:5V
Detecting Concentration:0.05-10mg/L Alcohol
Analog and Digital Output
Digital Out is High or Low based on an adjustable preset threshold.
