MLX90614 ESF Infrared Temperature Measurement Module
Rated 3.5/5 based on 11 customer reviews

MLX90614 ESF Infrared Temperature Measurement Module

  • Order within
Available: In Stock
₹ 949.00

Infra-Red thermometer for non-contact temperature measurements

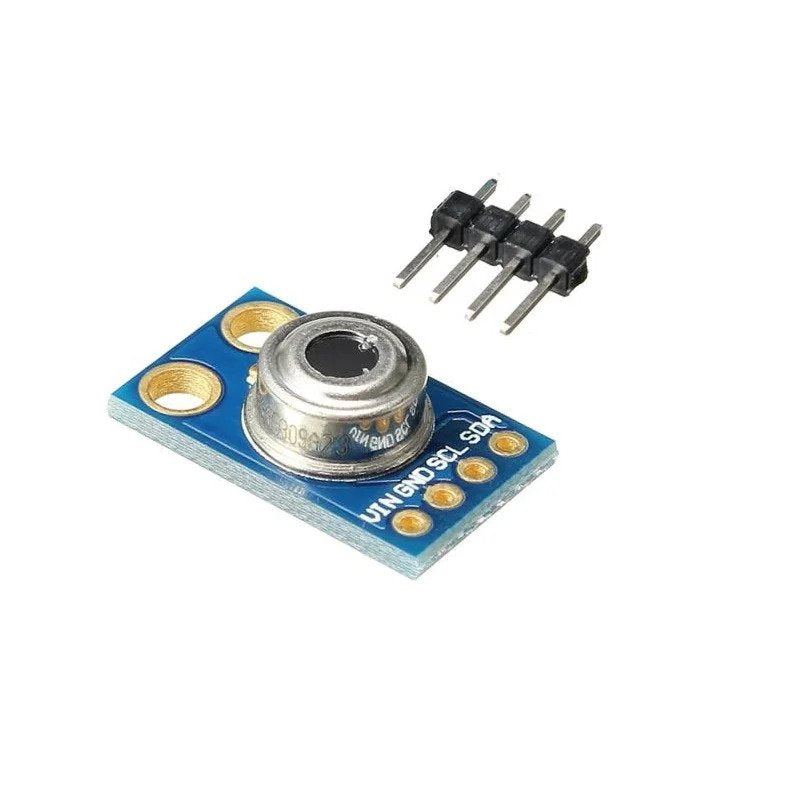

The MLX90614 ESF is an contactless temperature sensor used to measure temperature without touching the target object using Infrared Rays. Both the IR sensitive thermopile detector chip and the signal condition ASIC are incorporated into the same TO-39 can of MLX90614 ESF sensor. The Integrated MLX90614 GY-906 is a low noise amplifier, 17-bit ADC, and powerful DSP unit thus achieving high accuracy and resolution of the thermometer. MLX90614 sensor can measure temperature in the range of -40°C to 380°C. Sensor can measure the temperature of an target object which is 2-5 cm far from the sensor. The sensor feild view is 90 degrees and returns the temperature value of all objects with in this feild of view.

MLX90614 sensor work on Stefan-Boltzmann Law, which states that all objects and living beings emit IR energy. The intensity of this emited IR energy is proportional to the temperature of that object or living being.

The MLX90614 infrared temperature sensor has 4 pins which are VIN, GND, SCL and SDA. The VIN and GND are connected to the 5V power supply and ground of the circuit respectively. The SDA is the Serial Data Pin and SCL is the Serial Clock pin which are used for the I2C communication.

Connection Diagram

Package Includes:

1 x MLX90614 ESF Infrared Temperature Measurement Module

Also Searched as :

Temperature measurement, Noncontact temperature, IR sensor


Infra-Red thermometer for non-contact temperature measurements

The MLX90614 ESF is an contactless temperature sensor used to measure temperature without touching the target object using Infrared Rays. Both the IR sensitive thermopile detector chip and the signal condition ASIC are incorporated into the same TO-39 can of MLX90614 ESF sensor. The Integrated MLX90614 GY-906 is a low noise amplifier, 17-bit ADC, and powerful DSP unit thus achieving high accuracy and resolution of the thermometer. MLX90614 sensor can measure temperature in the range of -40°C to 380°C. Sensor can measure the temperature of an target object which is 2-5 cm far from the sensor. The sensor feild view is 90 degrees and returns the temperature value of all objects with in this feild of view.

MLX90614 sensor work on Stefan-Boltzmann Law, which states that all objects and living beings emit IR energy. The intensity of this emited IR energy is proportional to the temperature of that object or living being.

The MLX90614 infrared temperature sensor has 4 pins which are VIN, GND, SCL and SDA. The VIN and GND are connected to the 5V power supply and ground of the circuit respectively. The SDA is the Serial Data Pin and SCL is the Serial Clock pin which are used for the I2C communication.

Connection Diagram

Package Includes:

1 x MLX90614 ESF Infrared Temperature Measurement Module

Also Searched as :

Temperature measurement, Noncontact temperature, IR sensor


Operating Voltage 3V-5V DC
Operating Current 2mA
Communication Protocol I2C
Measurement Resolution 0.01°C
Accuracy 0.5°C
ADC 17 bit
Sensor working temperature(°C) -40 to +125
Sensing temperature range(°C) -70 to +380
PCB dimensions(mm) 11 x 17
