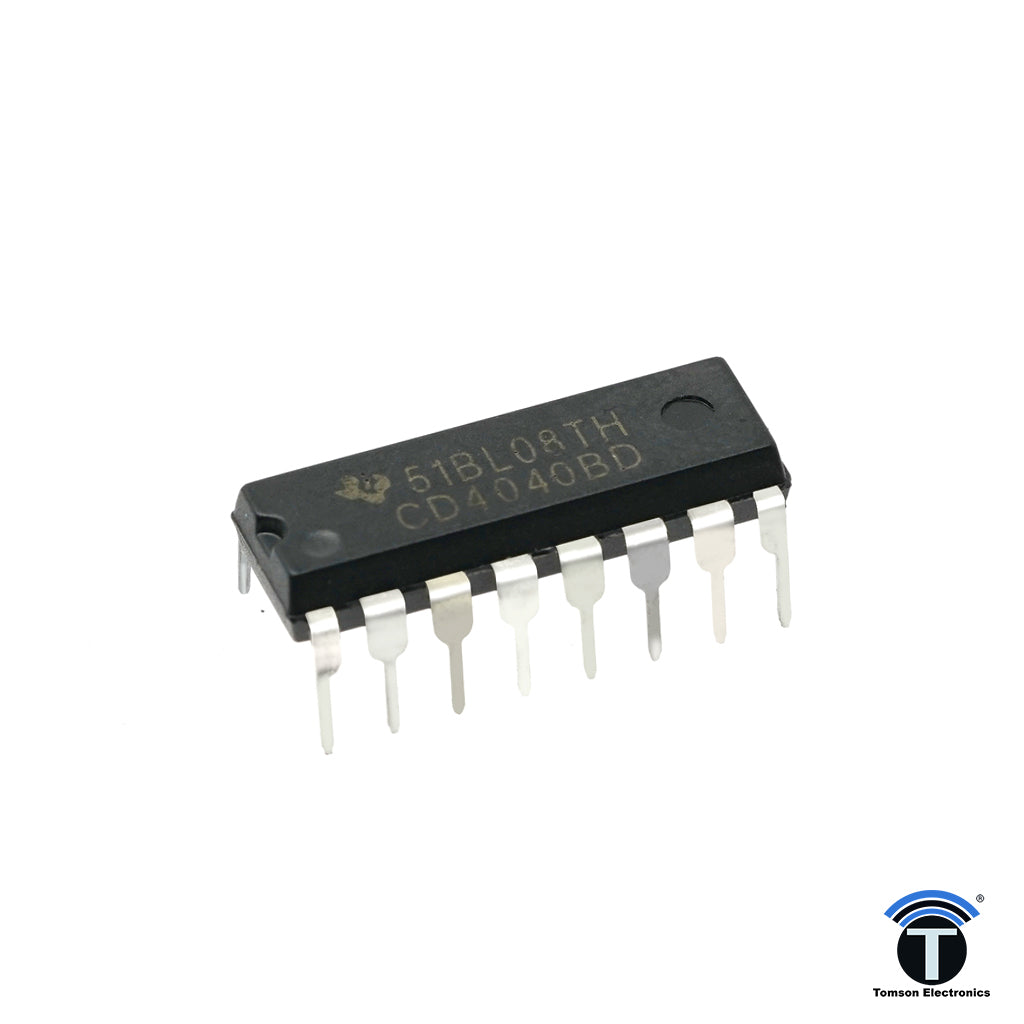

CD 4040
Rated 3.5/5 based on 11 customer reviews

CD 4040

  • Order within
Available: In Stock
₹ 18.88

CD 4040

⁍CD4040 is ripple-carry binary counters. The IC 4040 is technically a 12-stage binary ripple counter chip, in simple words a device which will produce a calculated delayed frequency output in response to every pulse applied at its clock input. This delay is incremented at the rate of 2^(n) where n is the pinout order in the sequence of its outputs.

⁍The CD4040 types are supplied in 16-lead hermetic dual-in-line ceramic packages (F3A suffix), 16-lead dual-in-line plastic packages (E suffix), 16-lead small-outline packages (NSR suffix), and 16-lead thin shrink small-outline packages (PW and PWR suffixes). The CD4040 type also is supplied in 16-lead small-outline packages (M and M96 suffixes).

IC CD4040 FEATURES

  • ⁍Wide supply voltage range: 3.0V to 15V
  • ⁍High noise immunity: 0.45V
  • ⁍Low power TTL compatibility: Fan out of 2 driving 74L or 1 driving 74LS
  • ⁍Medium speed operation: 8 MHz typ. at VDD = 10V
  • ⁍Schmitt trigger clock input
  • ⁍This is a Thru-Hole Device
Developer Resources - DATASHEET

CD 4040

⁍CD4040 is ripple-carry binary counters. The IC 4040 is technically a 12-stage binary ripple counter chip, in simple words a device which will produce a calculated delayed frequency output in response to every pulse applied at its clock input. This delay is incremented at the rate of 2^(n) where n is the pinout order in the sequence of its outputs.

⁍The CD4040 types are supplied in 16-lead hermetic dual-in-line ceramic packages (F3A suffix), 16-lead dual-in-line plastic packages (E suffix), 16-lead small-outline packages (NSR suffix), and 16-lead thin shrink small-outline packages (PW and PWR suffixes). The CD4040 type also is supplied in 16-lead small-outline packages (M and M96 suffixes).

IC CD4040 FEATURES

  • ⁍Wide supply voltage range: 3.0V to 15V
  • ⁍High noise immunity: 0.45V
  • ⁍Low power TTL compatibility: Fan out of 2 driving 74L or 1 driving 74LS
  • ⁍Medium speed operation: 8 MHz typ. at VDD = 10V
  • ⁍Schmitt trigger clock input
  • ⁍This is a Thru-Hole Device
Developer Resources - DATASHEET
