High Quality MP3 Sound Module FN-M16P
Rated 3.5/5 based on 11 customer reviews

High Quality MP3 Sound Module FN-M16P

  • Order within
Available: In Stock
₹ 306.80 ₹ 439.00
DESCRIPTION

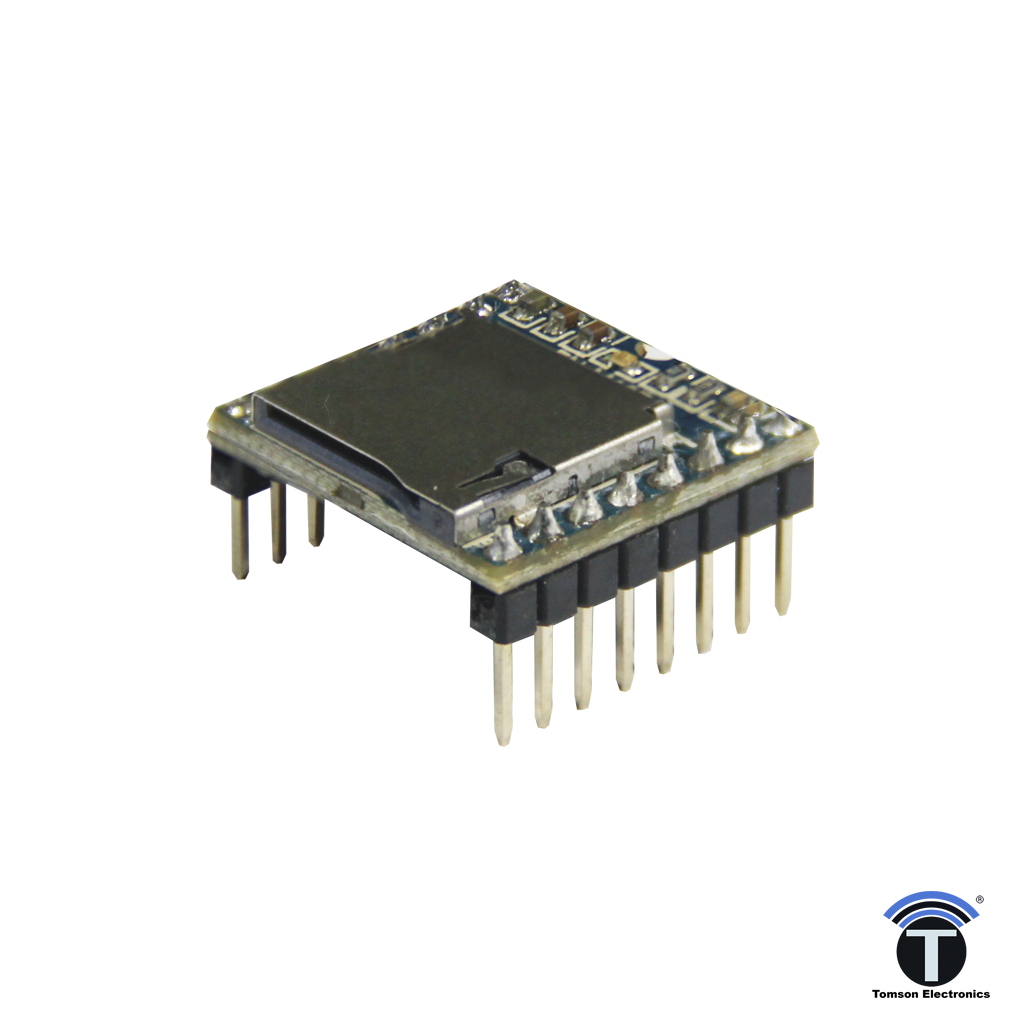

FN-M16P is a small and low price MP3 module with a simplified output directly to the speaker. The module can be used as a stand-alone module with an attached battery, speaker and push buttons or used in combination with an Arduino UNO or any other with RX/TX capabilities.


FEATURES

Supports MP3 and WAV decoding.


Supports FAT16 and FAT32 file system.


24-bit DAC output and supports dynamic range 90dB and SNR 85dB.


Supports AD key control mode and UART RS232 serial control mode.



Supports maximum 32GB micro SD card and 32GB USB flash drive.


Supports maximum 3000 audio files under the root directory of the storage

Device.


Supports maximum 99 folders, and each folder can stores 255 audio files.


Supports inter-cut advertisements.


Supports random playback.


Built-in a 3 watts amplifier that can direct drive a 3 watts speaker.


30 levels adjustable volume, and 6 levels adjustable EQ.


ALSO SEARCHED AS:
MP3 Module FN M-16P, MP3 Playback module

DESCRIPTION

FN-M16P is a small and low price MP3 module with a simplified output directly to the speaker. The module can be used as a stand-alone module with an attached battery, speaker and push buttons or used in combination with an Arduino UNO or any other with RX/TX capabilities.


FEATURES

Supports MP3 and WAV decoding.


Supports FAT16 and FAT32 file system.


24-bit DAC output and supports dynamic range 90dB and SNR 85dB.


Supports AD key control mode and UART RS232 serial control mode.



Supports maximum 32GB micro SD card and 32GB USB flash drive.


Supports maximum 3000 audio files under the root directory of the storage

Device.


Supports maximum 99 folders, and each folder can stores 255 audio files.


Supports inter-cut advertisements.


Supports random playback.


Built-in a 3 watts amplifier that can direct drive a 3 watts speaker.


30 levels adjustable volume, and 6 levels adjustable EQ.


ALSO SEARCHED AS:
MP3 Module FN M-16P, MP3 Playback module
