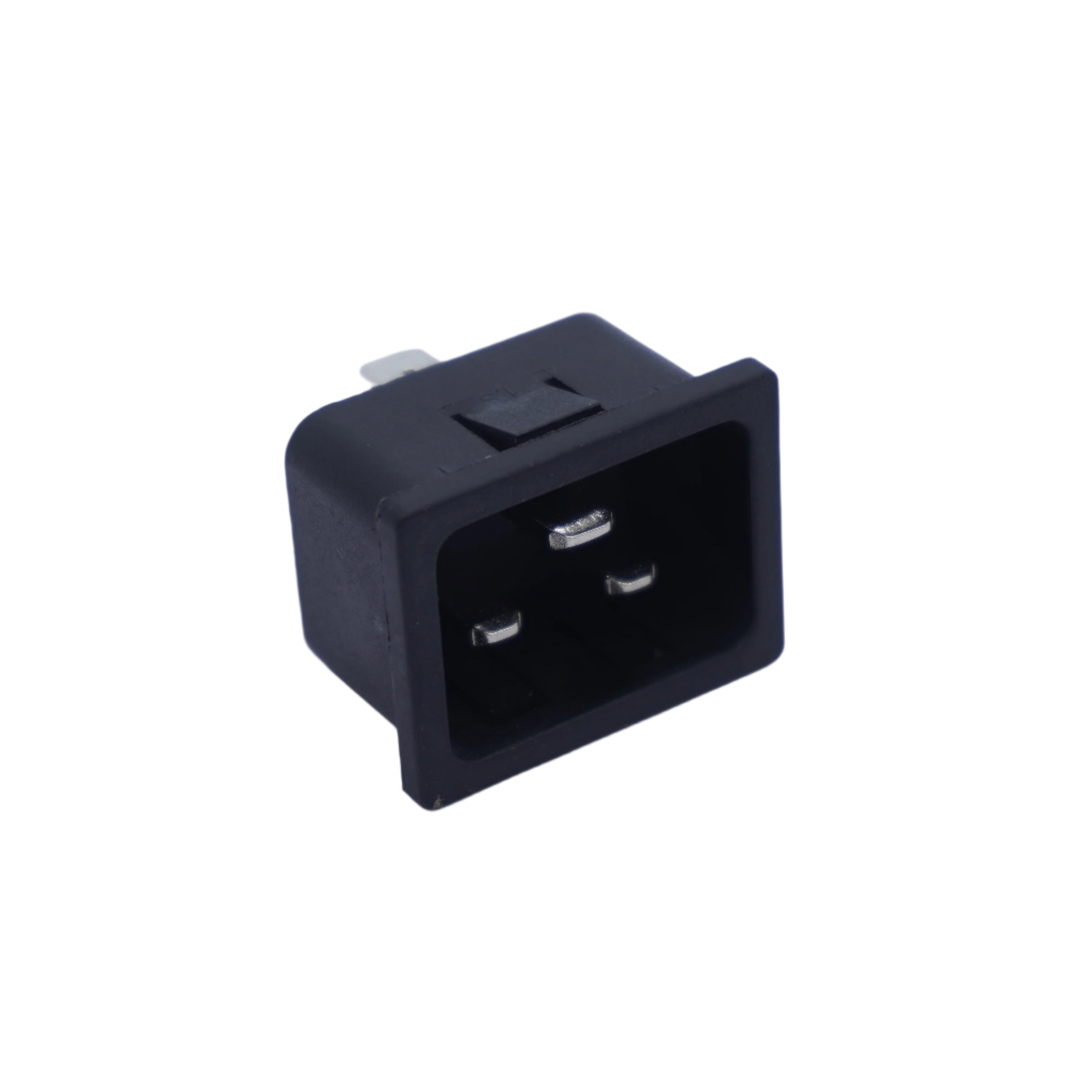

EMI-18 16A/20A 250V  Power Socket
EMO_18_Tomson_Electronics

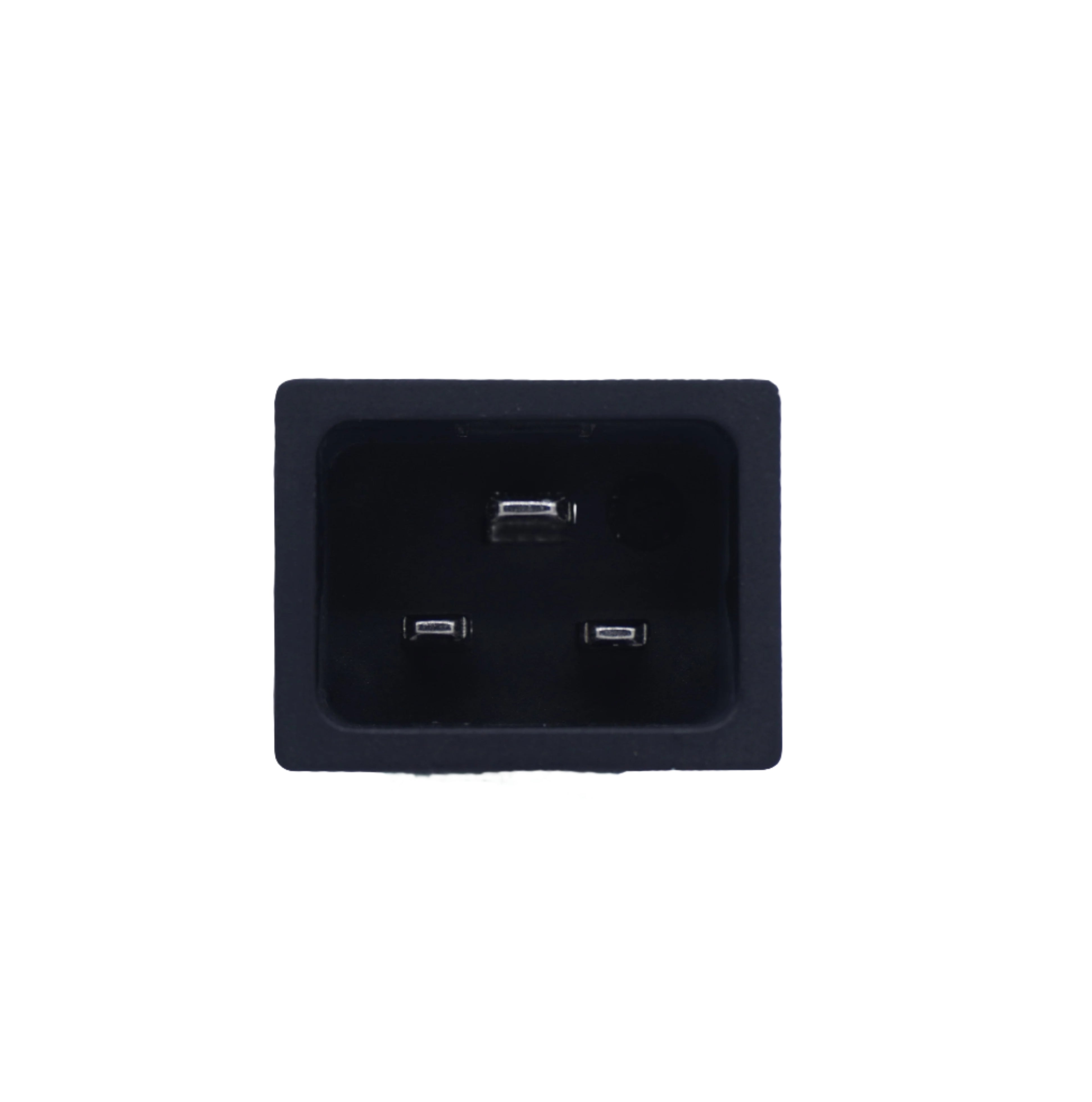

EMI-18 16A/20A 250V  Power Socket
EMO_18_Tomson_Electronics
ELCOM

EMI-18 16A/20A 250V Power Socket

No reviews
  • Share
  • Tweet
Product SKU: CON-06008
Available:
Only 103 items in stock
103 items in stock
In stock
Pre-order
Out of stock
₹ 59.00 (Incl.Tax)
₹ 0.00

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
For Bulk Enquries:
+91 90614 50999
  • Description
  • Specifications
  • Applications
  • Usage Notes
  • Datasheet
  • Reviews

The EMI‑18 is a high-quality IEC‑style power inlet socket rated at 16 A (VDE) / 20 A (UL) and 250 V AC, designed for secure panel mounting. It features a snap-in installation mechanism, versatile terminal options, and robust construction that meets international safety standards. Perfect for power supplies, PDUs, UPS units, and industrial electronics requiring reliable mains input.

  • Rated Voltage/Current: 250 VAC, 16 A (VDE), 20 A (UL)
  • Reference Standards: IEC 60320‑1, IEC 60320‑3, UL‑498, CSA C22.2 No 182.3
  • Approvals: VDE, cULus, CE, RoHS
  • Contact Resistance (initial): ≤ 10 mΩ
  • Insulation Resistance @ 500 V DC: ≥ 1000 MΩ
  • Dielectric Strength (1 min): 2 kV AC
  • Mounting Style: Panel snap-in, standard thickness 1.5 mm
  • Terminal Types: Solder / Fast-on 6.3 × 0.8 mm
  • Permissible Temperature: UL 0–65 °C; VDE 0–70 °C (up to 125 °C on request)
  • Soldering Temp: 270 °C, max 5 s
  • Body Material: Nylon‑6 GF20%, V‑2 rated
  • Terminals & Contacts: Brass (tin/nickel plated)
  • Power inlet for industrial and consumer electronics
  • Panel-mount mains input for UPS, PDUs, and power supplies
  • Replacement IEC inlet for appliances and chassis
  • Embedded systems with detachable power cord interfaces
  • Snap-in mounting supports panel thickness of approximately 1.5 mm.
  • Select solder or Fast-on terminals based on assembly and maintenance needs.
  • Ensure wiring is rated for the socket's maximum current.
  • Observe soldering temperature and duration limits to prevent melting the housing.
  • Maintain ambient operating temperatures within specified ranges for reliable performance.
  • EMI‑18 Datasheet
