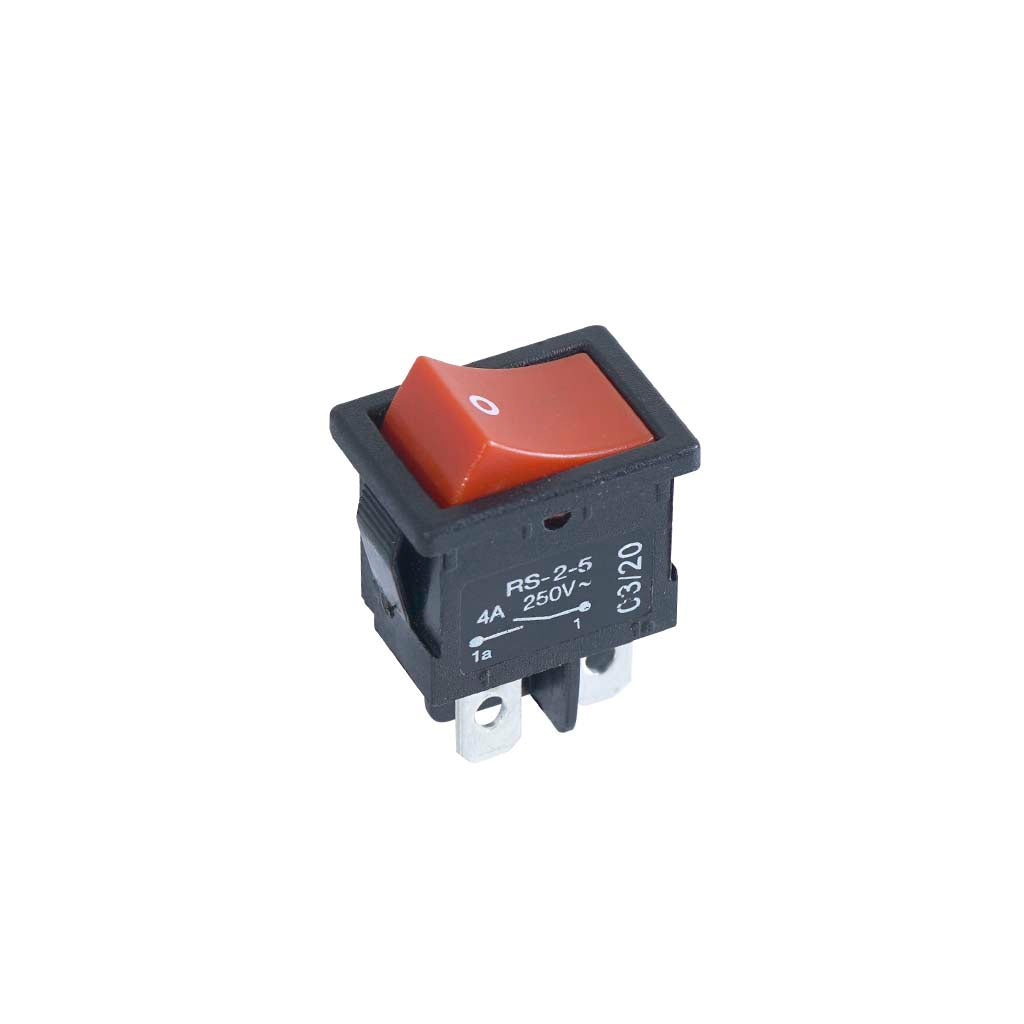

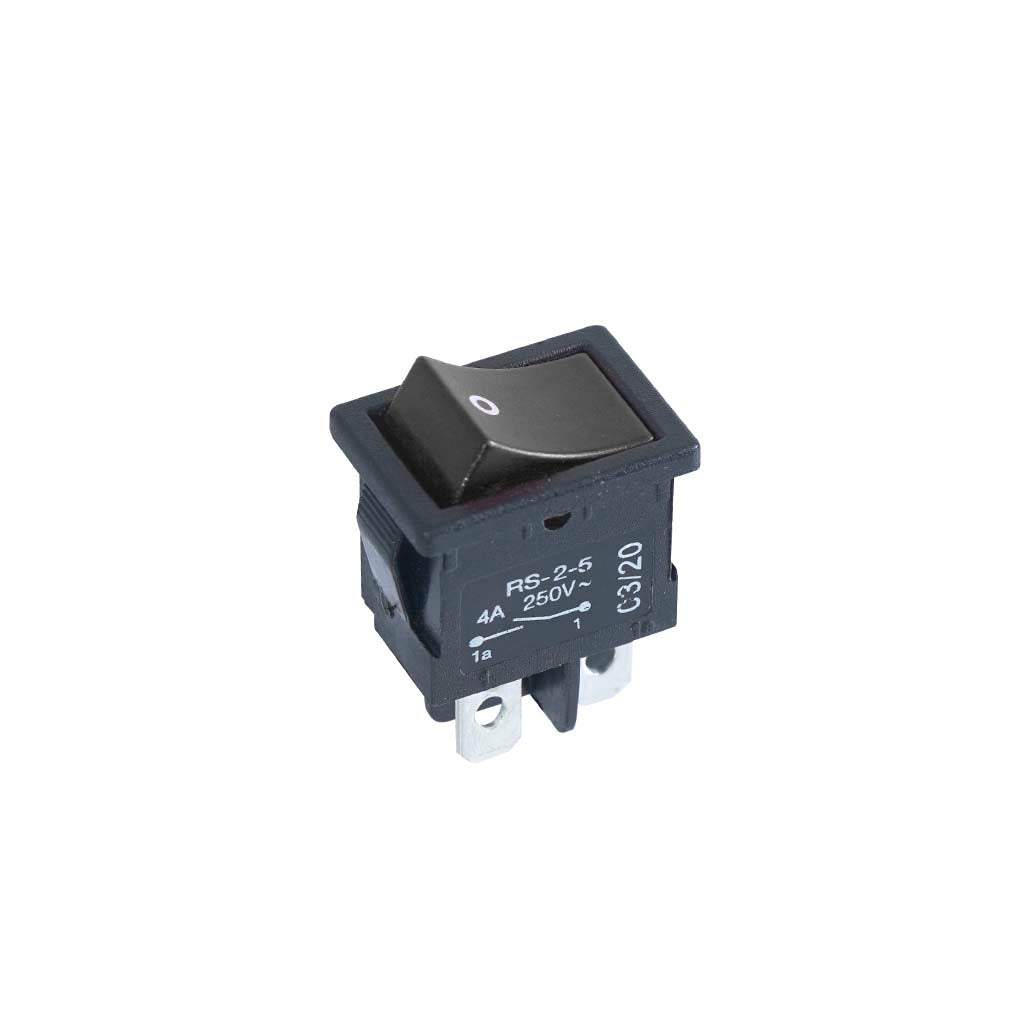

ELCOM ROCKER SWITCH RS2 4A
ELCOM ROCKER SWITCH RS2  4A
ELCOM ROCKER SWITCH RS2  4A
ELCOM ROCKER SWITCH RS2  4A
ELCOM ROCKER SWITCH RS2  4A

ELCOM ROCKER SWITCH RS2 4A

Write a review
Available: In Stock
₹ 16.52

GST INC

DESCRIPTION

Elcom manufactures various types of Rocker switches like - Single Pole Single Throw Single Pole Double Throw Double Pole Single Throw Double Pole Double Throw Available in Illuminated / Non-Illuminated types in 6Amp, 16Amp. Now it is available at Tomson Electronics, Kochi, Kerala, India.

FEATURES

  • Type: Non-Illuminated
  • Permissible Temp For Soldering: 270 deg. C for 5 sec. max.
  • Permissible Temp with/without Load: 0 deg. C to + 85 deg. C
  • Mounting: Panel, Snap-in type
  • Terminal Type: Solder type / Fast on 4.8 x 0.8
  • Reference Standard: IEC 61058
  • V/A Rating: 4 A, 250V AC
  • Colours Available For Rocker: Red / Green / Black
  • Contact Resistance(Max, Initial): 10 m Ohms
  • Material - Terminals: Copper alloy, Silver plated
  • Electrical Life: 10000 Cycles.
  • H. V. Breakdown test for 1 minute: 1.5 KVAC
  • Insulation Resistance (Min.): 100 M Ohms at 500 VDC
  • Material For Housing: Nylon

DEVELOPMENT SOURCES

To download the datasheet, Please Click Here.
