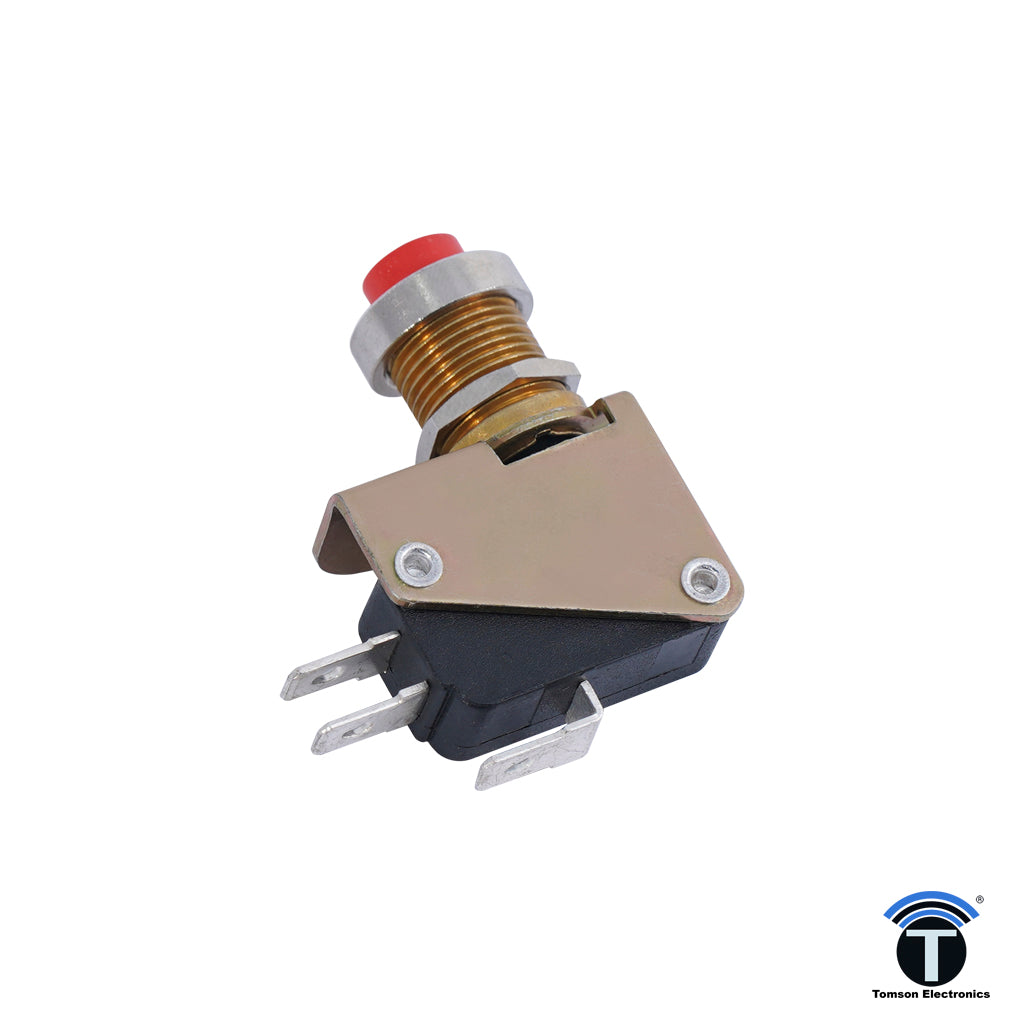

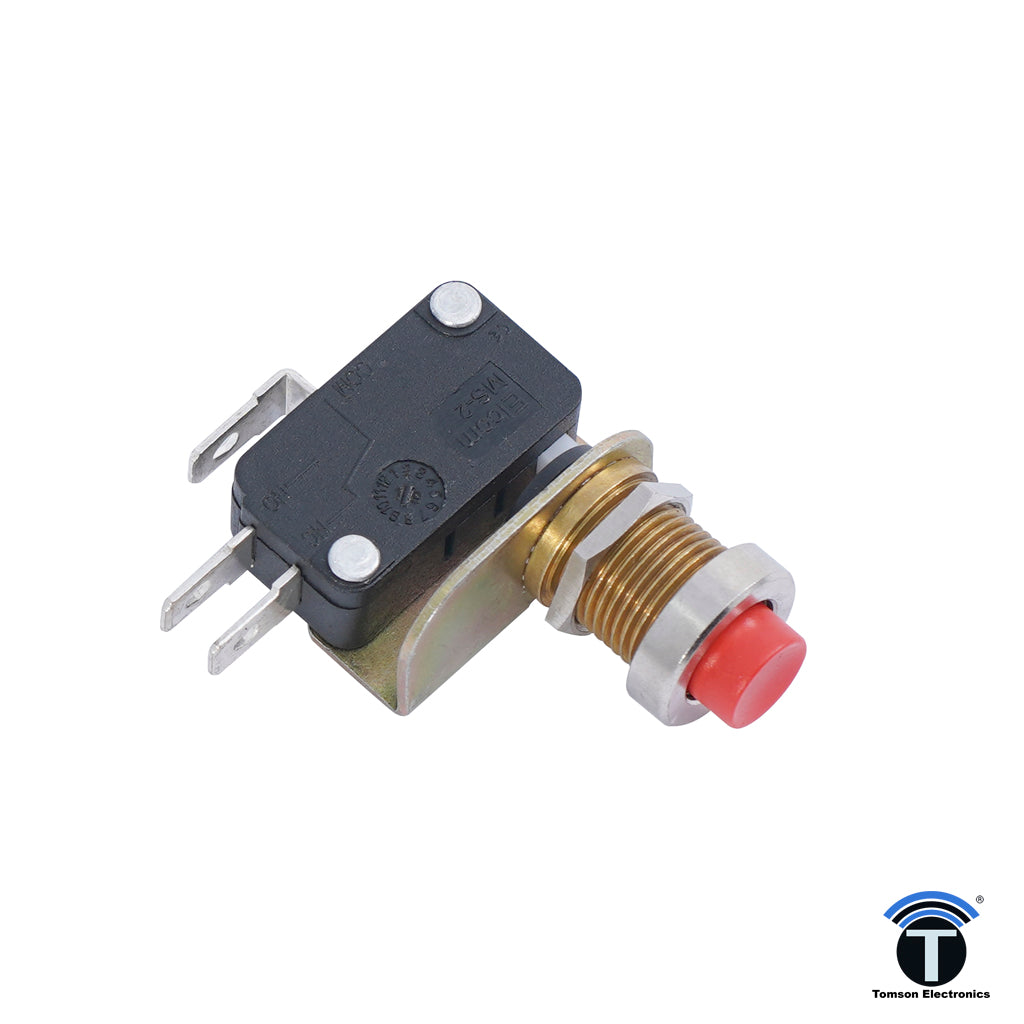

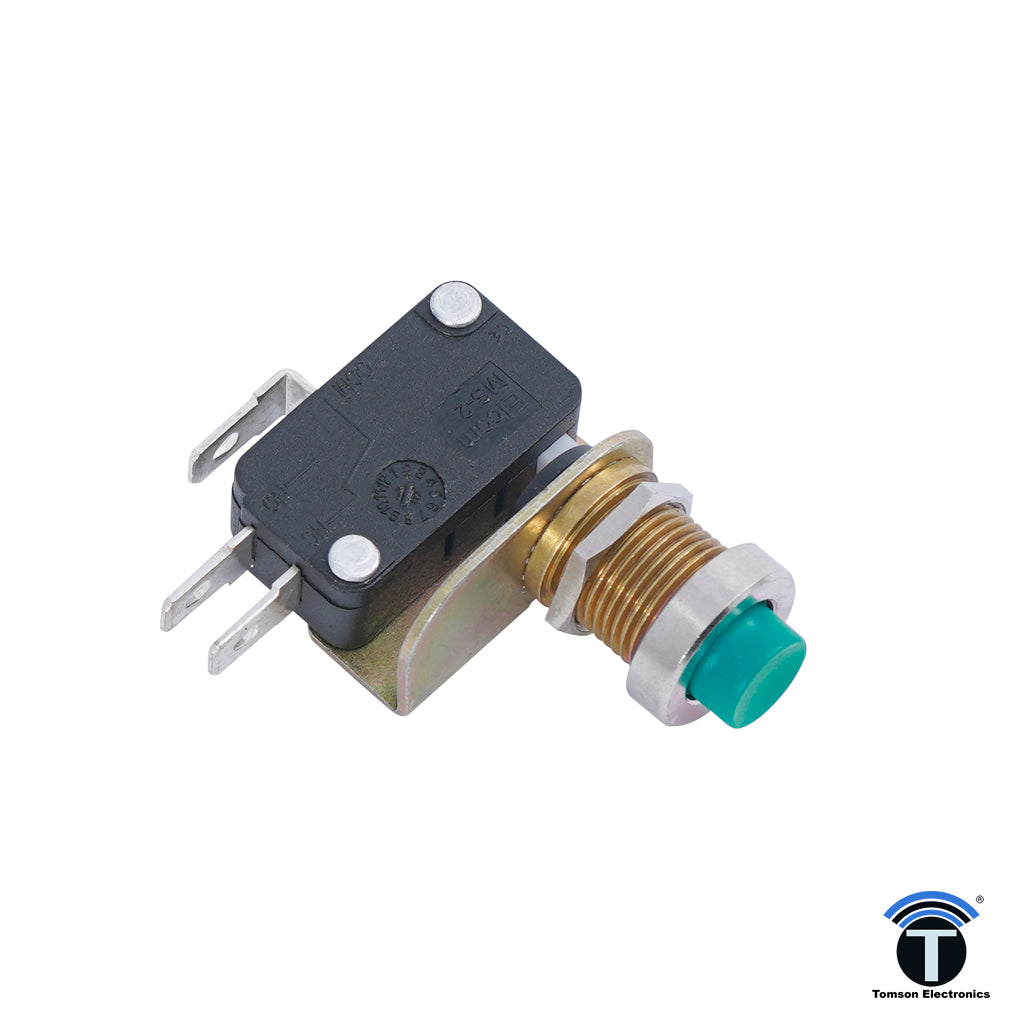

ELCOM MICRO SWITCH MS 222 B
Rated 3.5/5 based on 11 customer reviews

ELCOM MICRO SWITCH MS 222 B

  • Order within
Available: In Stock
₹ 87.32

ELCOM MICRO SWITCH MS 222 B

  • Contact Arrangement : NO / NC
  • Contact & Voltage Rating : 6A, 250V AC .
    Temp For With/Without Load : -20 deg. C to +85 deg. C.
    Permissible Temp For Soldering : 270 deg. C for 5 sec. max.
    Terminals : Solder - type / Snap-on 4.80
    Insulation Resistance : 100 M Ohms at 500 VDC
    H. V. Breakdown Test: 1 KVAC For 1 Minute.
    Electrical Life : 1,00,000 Cycles
    Current Carrying Parts : Terminals - Brass, Tin plated
    Contact Resistance : 10 m Ohms
    Colours Available For Actuator : Red Green
    Switch Type : Momentary
    Mechanical Life : 1,00,000 Cycles

ELCOM MICRO SWITCH MS 222 B

  • Contact Arrangement : NO / NC
  • Contact & Voltage Rating : 6A, 250V AC .
    Temp For With/Without Load : -20 deg. C to +85 deg. C.
    Permissible Temp For Soldering : 270 deg. C for 5 sec. max.
    Terminals : Solder - type / Snap-on 4.80
    Insulation Resistance : 100 M Ohms at 500 VDC
    H. V. Breakdown Test: 1 KVAC For 1 Minute.
    Electrical Life : 1,00,000 Cycles
    Current Carrying Parts : Terminals - Brass, Tin plated
    Contact Resistance : 10 m Ohms
    Colours Available For Actuator : Red Green
    Switch Type : Momentary
    Mechanical Life : 1,00,000 Cycles
