Dual channel PWM Pulse generator
Dual channel PWM Pulse generator
Dual channel PWM Pulse generator
Dual channel PWM Pulse generator
Dual channel PWM Pulse generator

Dual channel PWM Pulse generator

Write a review
Available: In Stock
₹ 253.70
DESCRIPTION

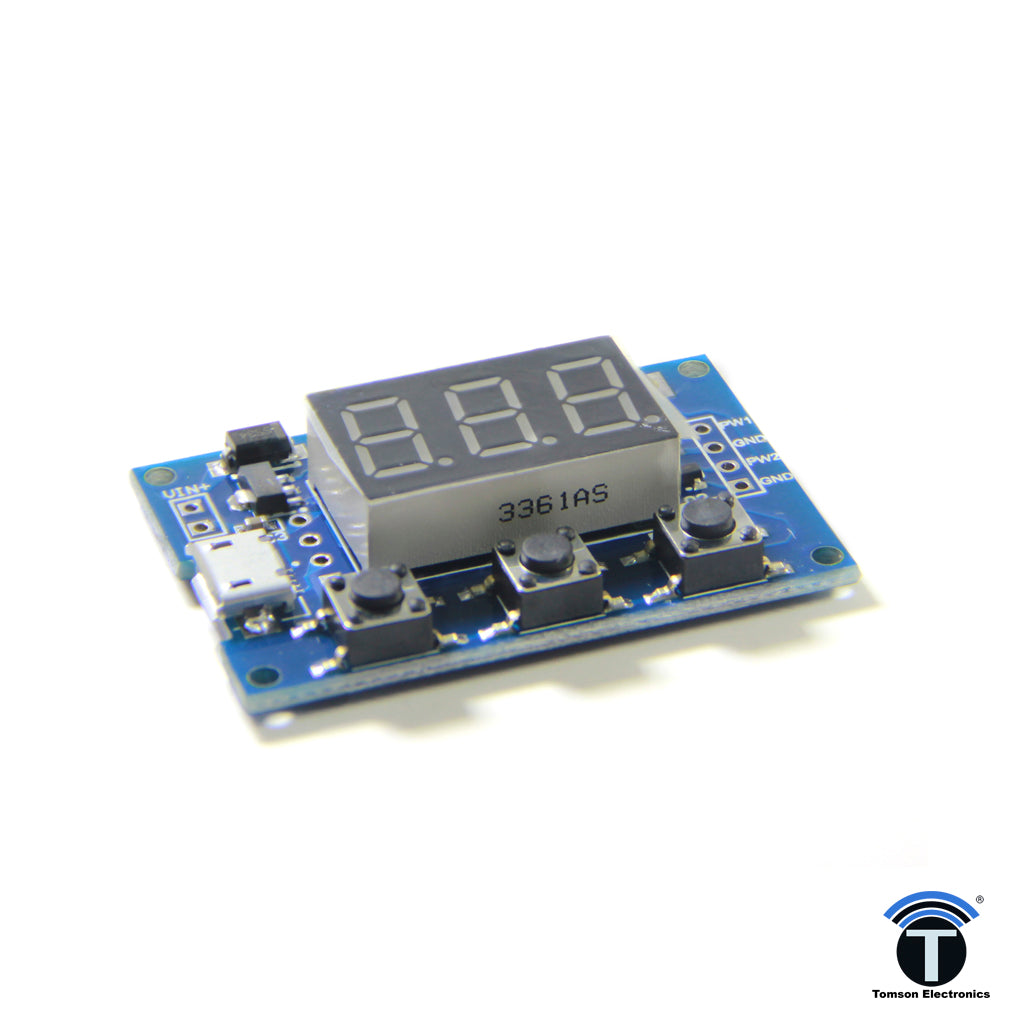

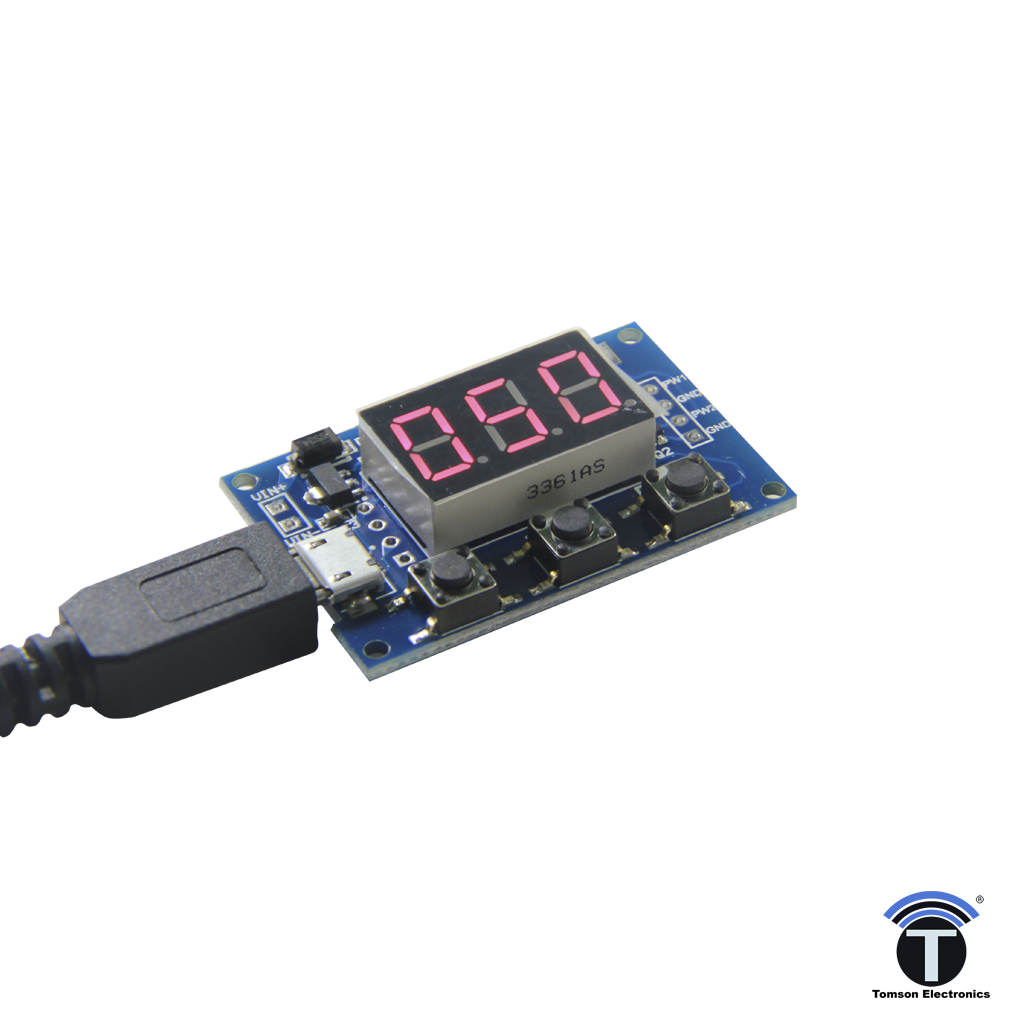

It is a 2 channel PWM/Pulse generator with variable Frequency: 1hz to 150Khz and Duty cycle 1% to 100% alterations. The frequency and duty cycle can be controlled using switches provided on board. It can also be controlled using serial communication protocol. This module provides an easy solution for driving stepper motors using variable frequency pulse input and DC motor with variable PWM duty cycle.

It is compatible with RMCS-1110, RMCS-1101, RMCS-1102, RMCS-1106 and RMCS-2301 motor drivers requiring pulse input. Also compatible with RMCS-2302, RKI-1341, RKI-1340 and all the motor drivers requiring PWM input with variable duty cycle for speed control.


FEATURES

Two independent PWM cycle with variable Frequency and Duty cycle.

Wide frequency range 1Hz ~ 150Khz

Parameters configurable via Serial protocol

Dimensions: 41 * 28mm Thickness: 1.6mm

Operating voltage: 5 - 30V support micro USB 5.0V power supply

Frequency range: 1Hz ~ 150KHz

Frequency accuracy: the accuracy in each range is about 2% ;

Signal load capacity: the output current can be 8 - 30ma

Output amplitude: default 5V V-pp

Ambient temperature: -30 ~ +70 ℃
