DS 18B20 Temperature Sensor Probe
Rated 3.5/5 based on 11 customer reviews

DS 18B20 Temperature Sensor Probe

  • Order within
Available: In Stock
₹ 141.60 ₹ 148.20

DESCRIPTION

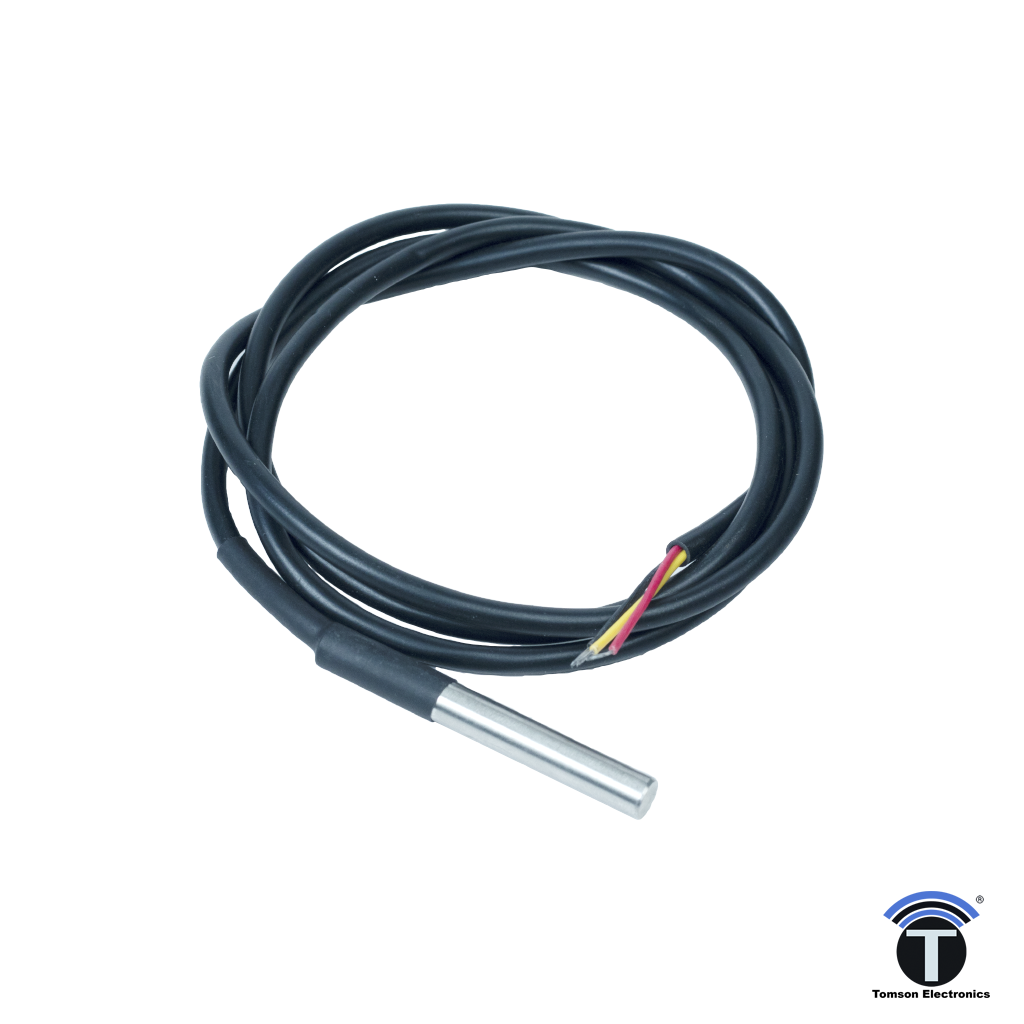

This is a pre-wired and waterproofed version of the DS18B20 sensor. Handy for when you need to measure something far away, or in wet conditions. While the sensor is good up to 125°C the cable is jacketed in PVC so we suggest keeping it under 100°C. Because they are digital, you don't get any signal degradation even over long distances!

These 1-wire digital temperature sensors are fairly precise (±0.5°C over much of the range) and can give up to 12 bits of precision from the onboard digital-to-analog converter. They work great with any microcontroller using a single digital pin, and you can even connect multiple ones to the same pin, each one has a unique 64-bit ID burned in at the factory to differentiate them. Usable with 3.0-5.0V systems.

SPECIFICATION

  • Usable temperature range: -55 to 125°C (-67°F to +257°F)
  • 9 to 12-bit selectable resolution
  • Uses 1-Wire interface- requires only one digital pin for communication
  • Unique 64 bit ID burned into the chip
  • Multiple sensors can share one pin
  • ±0.5°C Accuracy from -10°C to +85°C
  • Temperature-limit alarm system
  • Query time is less than 750ms
  • Usable with 3.0V to 5.5V power/data

Also Searched As


18b20 Arduino,18b20 pinout,18b20 vs lm35,18b20 calibration,ds18b20 Arduino connection,ds18b20 Arduino interfacing

DESCRIPTION

This is a pre-wired and waterproofed version of the DS18B20 sensor. Handy for when you need to measure something far away, or in wet conditions. While the sensor is good up to 125°C the cable is jacketed in PVC so we suggest keeping it under 100°C. Because they are digital, you don't get any signal degradation even over long distances!

These 1-wire digital temperature sensors are fairly precise (±0.5°C over much of the range) and can give up to 12 bits of precision from the onboard digital-to-analog converter. They work great with any microcontroller using a single digital pin, and you can even connect multiple ones to the same pin, each one has a unique 64-bit ID burned in at the factory to differentiate them. Usable with 3.0-5.0V systems.

SPECIFICATION

  • Usable temperature range: -55 to 125°C (-67°F to +257°F)
  • 9 to 12-bit selectable resolution
  • Uses 1-Wire interface- requires only one digital pin for communication
  • Unique 64 bit ID burned into the chip
  • Multiple sensors can share one pin
  • ±0.5°C Accuracy from -10°C to +85°C
  • Temperature-limit alarm system
  • Query time is less than 750ms
  • Usable with 3.0V to 5.5V power/data

Also Searched As


18b20 Arduino,18b20 pinout,18b20 vs lm35,18b20 calibration,ds18b20 Arduino connection,ds18b20 Arduino interfacing
