CD 4033 BE
Rated 3.5/5 based on 11 customer reviews

CD 4033 BE

  • Order within
Available: In Stock
₹ 65.05

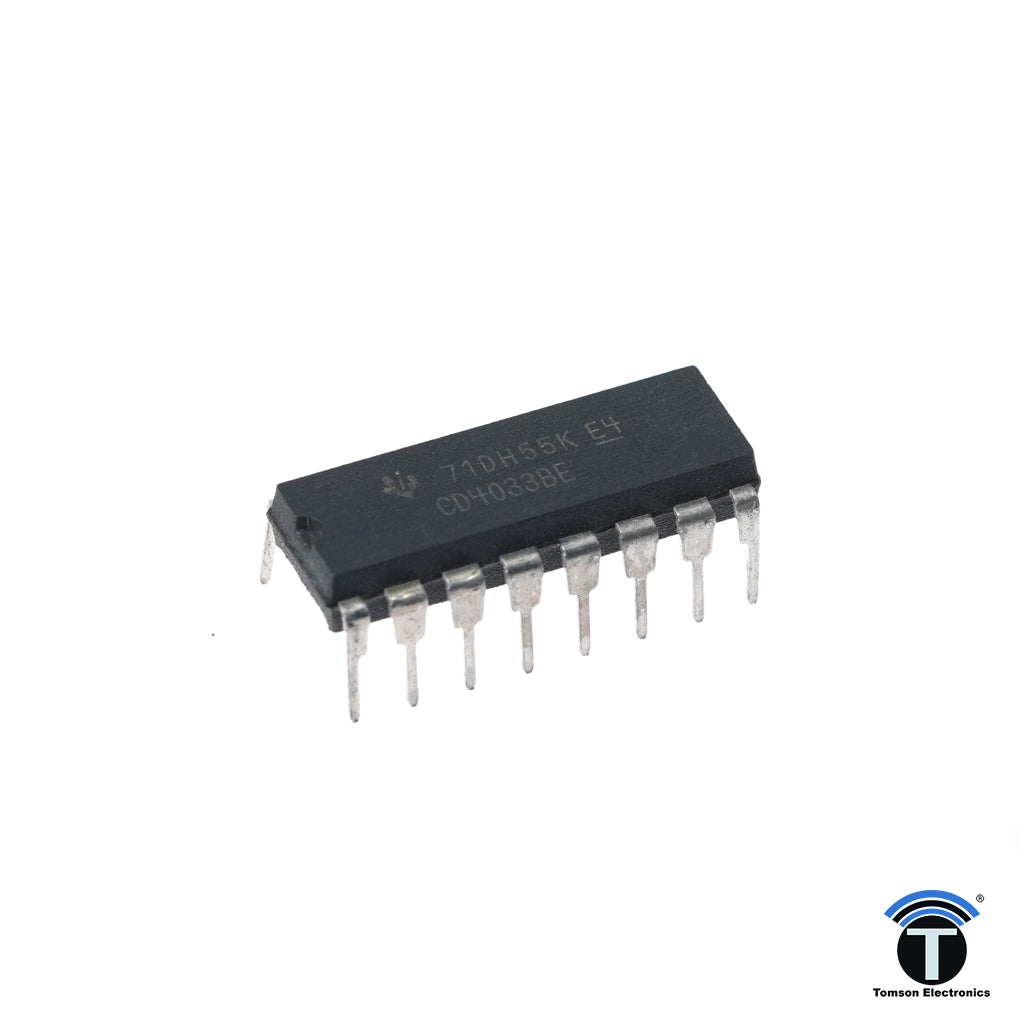

CD 4033BE

⁍It consists of a 5-stage Johnson decade counter and an output decoder which converts the Johnson code to a 7-segment decoded output for driving one stage in a numerical display.

⁍A high RESET signal clears the decade counter to its zero count. The counter advances one count at the positive clock signal transition, if the CLOCK INHIBIT signal is low. Counter advancement via the clock line is inhibited when the CLOCK INHIBIT signal is high. The CLOCK INHIBIT signal can be used as a negative-edge clock if the clock line is held high. Antilock gating is provided on the JOHNSON counter, thus assuring proper counting sequence.

⁍Inputs common to both types are CLOCK, RESET, & CLOCK INHIBIT; common outputs are CARRY OUT and the seven decoded outputs (a, b, c, d, e, f, g). Additional inputs and outputs for the CD4033B include DISPLAY ENABLE input and DISPLAY ENABLE and UNGATED "C-SEGMENT" outputs.

     CD 4033 BE Features

  • ⁍Easily interfaced with 7-segment display types
  • ⁍Fully static counter operation: DC to 6 MHz (typ.) at VDD = 10 V
  • ⁍Ideal for low-power displays
  • ⁍Enables the display output
  • ⁍Tested for quiescent current at 20 V
  • ⁍Schmitt-triggered clock inputs

Developer Resources: CD4033BE_Datasheet

CD 4033BE

⁍It consists of a 5-stage Johnson decade counter and an output decoder which converts the Johnson code to a 7-segment decoded output for driving one stage in a numerical display.

⁍A high RESET signal clears the decade counter to its zero count. The counter advances one count at the positive clock signal transition, if the CLOCK INHIBIT signal is low. Counter advancement via the clock line is inhibited when the CLOCK INHIBIT signal is high. The CLOCK INHIBIT signal can be used as a negative-edge clock if the clock line is held high. Antilock gating is provided on the JOHNSON counter, thus assuring proper counting sequence.

⁍Inputs common to both types are CLOCK, RESET, & CLOCK INHIBIT; common outputs are CARRY OUT and the seven decoded outputs (a, b, c, d, e, f, g). Additional inputs and outputs for the CD4033B include DISPLAY ENABLE input and DISPLAY ENABLE and UNGATED "C-SEGMENT" outputs.

     CD 4033 BE Features

  • ⁍Easily interfaced with 7-segment display types
  • ⁍Fully static counter operation: DC to 6 MHz (typ.) at VDD = 10 V
  • ⁍Ideal for low-power displays
  • ⁍Enables the display output
  • ⁍Tested for quiescent current at 20 V
  • ⁍Schmitt-triggered clock inputs

Developer Resources: CD4033BE_Datasheet
