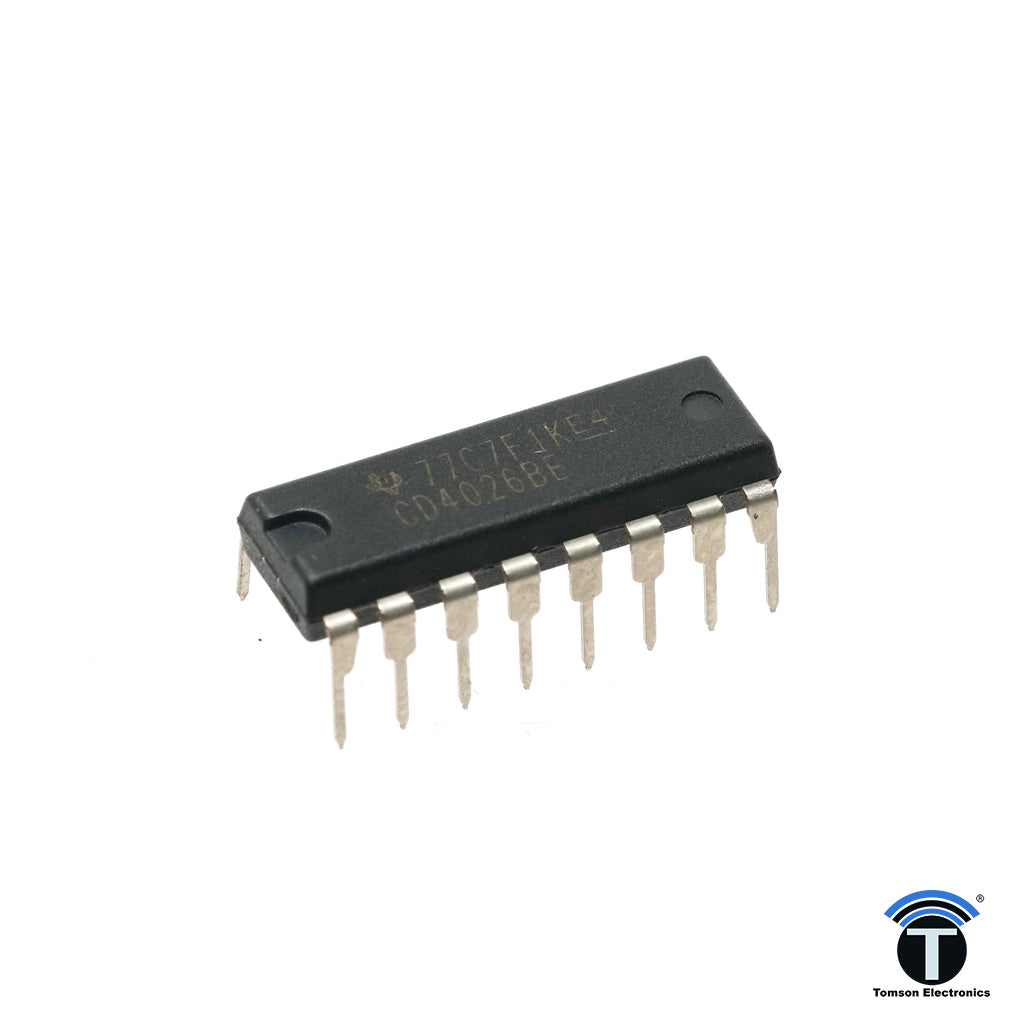

CD 4026 BE

Available: In Stock
₹ 17.70
  • Order within
Secure

CD 4026BE

⁍This is a CMOS Decade Counter/Divider with decoded 7-segment display outputs to display enable.
⁍It consists of a 5-stage Johnson decade counter and an output decoder that converts the Johnson code to a 7-segment decoded output for driving one stage in a numerical display.
⁍The common inputs to both types are CLOCK, RESET & CLOCK INHIBIT, common outputs are CARRY OUT and the seven decoded outputs. The CLOCK INHIBIT signal can be used as a negative-edge clock if the clock line is held high. Antilock gating is provided on the JOHNSON counter, thus assuring proper counting sequence.



CD 4026BE Features

  • ⁍Easily interfaced with 7-segment display types
  • ⁍Stable for low-power displays
  • ⁍Display  output enabled
  • ⁍Tested for quiescent current at 20V
  • ⁍Standardized, symmetrical output characteristics
  • ⁍Schmitt-triggered clock inputs
Developer Resources: CD4026_Datasheet


CD 4026BE

⁍This is a CMOS Decade Counter/Divider with decoded 7-segment display outputs to display enable. ⁍It consists of a 5-stage Johnson decade counter and an output decoder that converts the Johnson code to a 7-segment decoded output for driving one stage in a numerical display. ⁍The common inputs to both types are CLOCK, RESET & CLOCK INHIBIT, common outputs are CARRY OUT and the seven decoded outputs. The CLOCK INHIBIT signal can be used as a negative-edge clock if the clock line is held high. Antilock gating is provided on the JOHNSON counter, thus assuring proper counting sequence.



CD 4026BE Features

  • ⁍Easily interfaced with 7-segment display types
  • ⁍Stable for low-power displays
  • ⁍Display  output enabled
  • ⁍Tested for quiescent current at 20V
  • ⁍Standardized, symmetrical output characteristics
  • ⁍Schmitt-triggered clock inputs
Developer Resources: CD4026_Datasheet
