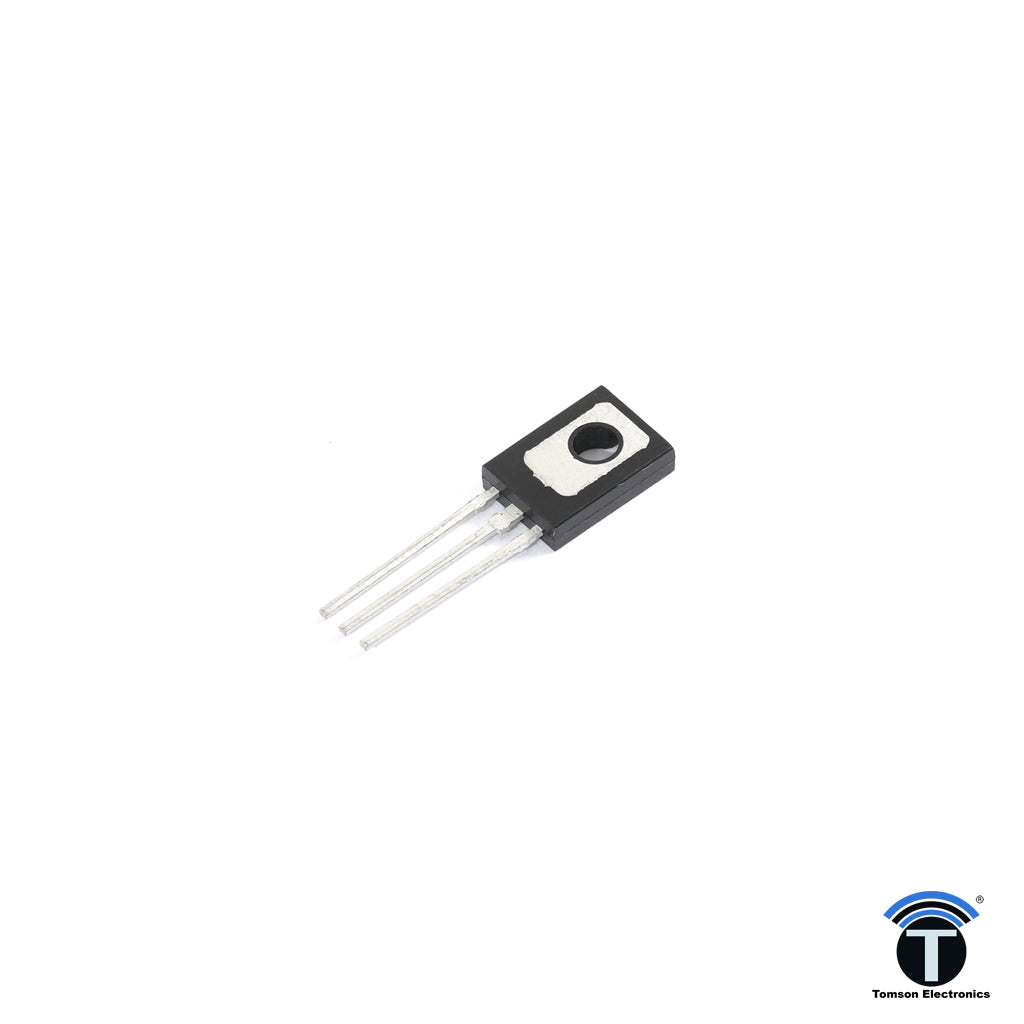

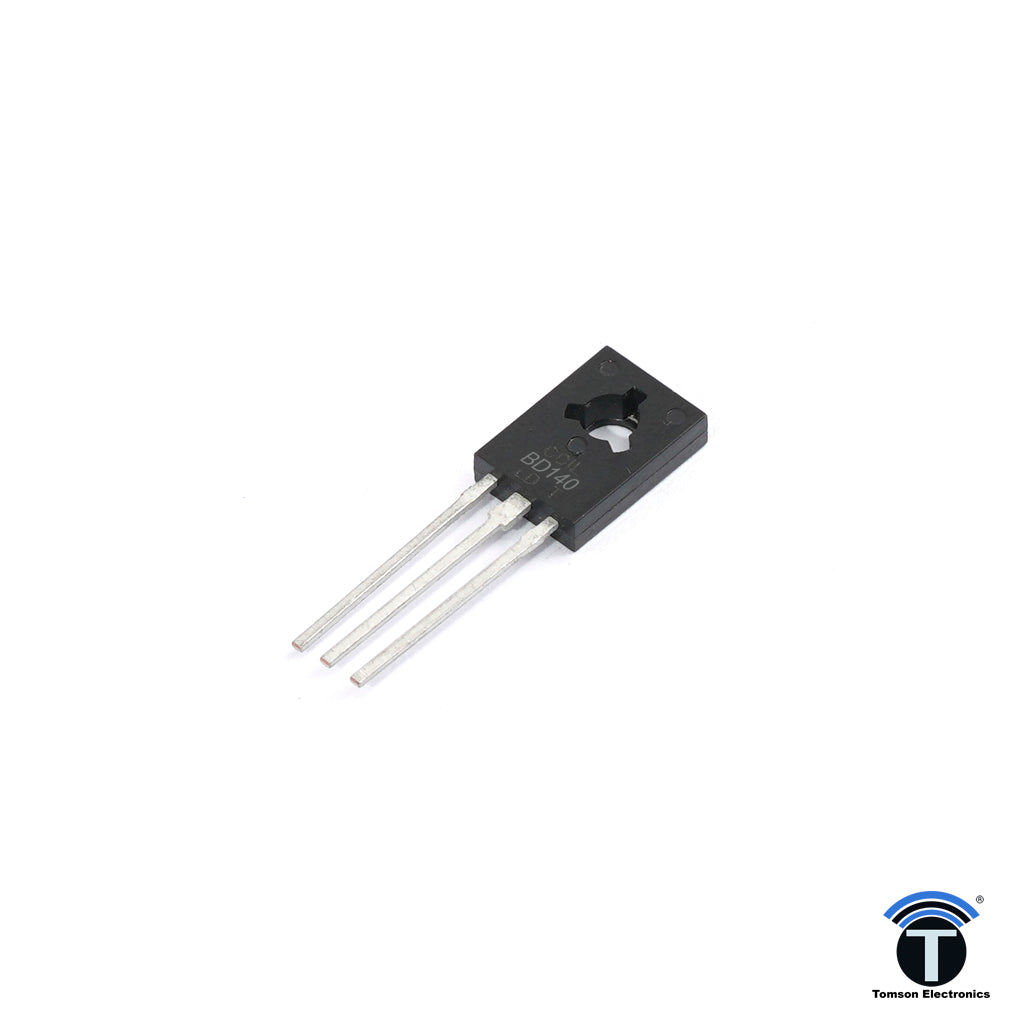

BD 140 POWER PNP TRANSISTOR
Rated 3.5/5 based on 11 customer reviews

BD 140 POWER PNP TRANSISTOR

  • Order within
Available: In Stock
₹ 5.90

BD 140 POWER TRANSISTOR Features

  • Type : PNP.
  • Collector-base voltage : -80 V.
  • Collector-emitter voltage : -80 V .
  • Emitter-base voltage : -5 V.
  • Collector current : -1.5 A.
  • Collector peak current  : -3 A .
  • Base current : -0.5 A.
  • Total dissipation at (Tc ≤ 25 °C) : 12.5 W .
  • Total dissipation at (Tamb ≤ 25 °C) : 1.25 W.
  • Storage temperature : -65 to 150 °C.
  • Max. operating junction temperature 150 °C.

These epitaxial planar transistors are mounted in the SOT-32 plastic package. They are designed for audio amplifiers and drivers utilizing complementary or quasi-complementary circuits.

The NPN types are the BD135 and BD139, and the complementary PNP types are the BD136 and BD140.

      Click here for more information - DATASHEET

BD 140 POWER TRANSISTOR Features

  • Type : PNP.
  • Collector-base voltage : -80 V.
  • Collector-emitter voltage : -80 V .
  • Emitter-base voltage : -5 V.
  • Collector current : -1.5 A.
  • Collector peak current  : -3 A .
  • Base current : -0.5 A.
  • Total dissipation at (Tc ≤ 25 °C) : 12.5 W .
  • Total dissipation at (Tamb ≤ 25 °C) : 1.25 W.
  • Storage temperature : -65 to 150 °C.
  • Max. operating junction temperature 150 °C.

These epitaxial planar transistors are mounted in the SOT-32 plastic package. They are designed for audio amplifiers and drivers utilizing complementary or quasi-complementary circuits.

The NPN types are the BD135 and BD139, and the complementary PNP types are the BD136 and BD140.

      Click here for more information - DATASHEET
