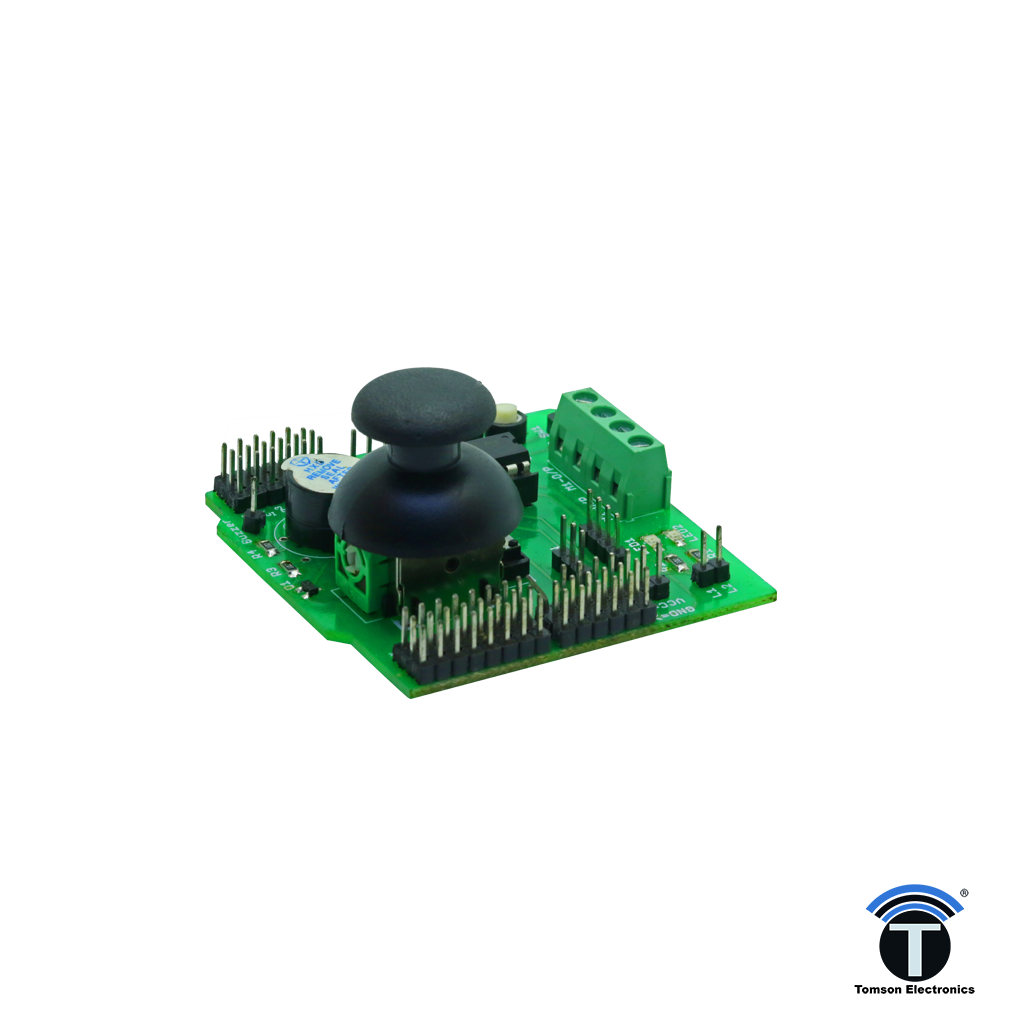

Joystick Shield Kit contains all the parts you need to enable your Arduino with a joystick! The shield sits on top of your Arduino and turns it into a simple controller. Five momentary push buttons (4+ joystick select button) and a two-axis thumb joystick gives your Arduino functionality on the level of old Nintendo controllers. Soldering is required, but it’s relatively easy and requires minimal tools. We even have a step by step guide!
The momentary push buttons are connected to Arduino digital pins 2-6; when pressed they will pull the pin low (utilizing the internal pull-ups of the Arduino). Vertical movement of the joystick will produce a proportional analog voltage on analog pin 0, likewise, horizontal movement of the joystick can be tracked on analog pin 1.
PS2 game joystick axis sensor module consists of using original quality metal PS2 joystick potentiometer system For, with (X, Y) 2-axis analog output, (Z)
1 digital output channel button with Arduino sensor expansion board can be made For remote control and other interactive work.
In addition the product in order to allow customers to more easily fit arduino expansion boards and other standard interfaces Mouth
In the design of the X, Y, Z-axis circuit leads individually, you can use three dedicated lines really pin ARDUINO Plug into the expansion board for use.
It is like a game console joystick, you can control the joystick module input x, y, z of PS2 joystick game controller module Joystick Values, and to achieve a particular value in a function, it can be considered a combination of buttons and a potentiometer.
Data Type of x, y dimension for the analog input signal is a digital input signal z dimension, therefore,x and y connected to the analog port Pin sensor end, and z port is connected to the digital port.
