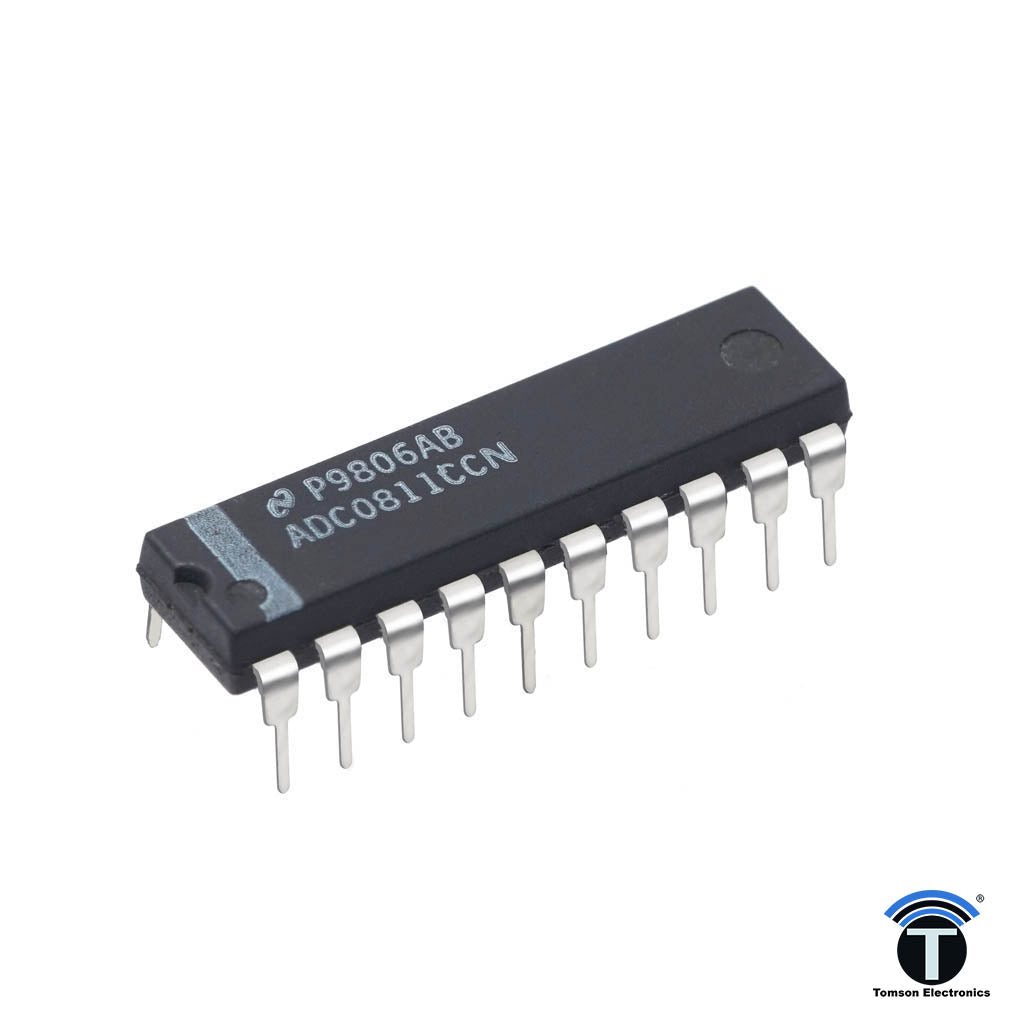

ADC 0811
Rated 3.5/5 based on 11 customer reviews

ADC 0811

  • Order within
Available: In Stock
₹ 791.17

ADC 0811

⁍The ADC0811 is an 8-Bit successive approximation A/D converter with simultaneous serial I/O. The serial input controls an analogue multiplexer which selects from 11 input channels or an internal half scale test voltage. An input sample-and-hold is implemented by a capacitive reference ladder and sampled data comparator. This allows the input signal to vary during the conversion cycle. Separate serial I/O and conversion clock inputs are provided to facilitate the interface to various microprocessors.

ADC 0811 Features


  • ⁍Separate asynchronous converter clock and serial data I/O clock.
  • ⁍11-Channel multiplexer with 4-Bit serial address logic.
  • ⁍Built-in sample and hold function.
  • ⁍Ratiometric or absolute voltage reference.
  • ⁍No zero or full-scale adjust required.
  • ⁍Internally addressable test voltage.
  • ⁍0V to 5V input range with single 5V power supply.
  • ⁍TTL/MOS input/output compatible.
  • ⁍0.3× standard width 20-pin dip or 20-pin molded chip carrier

specification

  • ⁍Resolution 8-Bits
  • ⁍Total unadjusted error g (/2LSB and g 1LSB
  • ⁍Single supply 5VDC
  • ⁍Low Power 15 mW
  • ⁍Conversion Time 32 mS
Developer :ADC0811_Datasheet

ADC 0811

⁍The ADC0811 is an 8-Bit successive approximation A/D converter with simultaneous serial I/O. The serial input controls an analogue multiplexer which selects from 11 input channels or an internal half scale test voltage. An input sample-and-hold is implemented by a capacitive reference ladder and sampled data comparator. This allows the input signal to vary during the conversion cycle. Separate serial I/O and conversion clock inputs are provided to facilitate the interface to various microprocessors.

ADC 0811 Features


  • ⁍Separate asynchronous converter clock and serial data I/O clock.
  • ⁍11-Channel multiplexer with 4-Bit serial address logic.
  • ⁍Built-in sample and hold function.
  • ⁍Ratiometric or absolute voltage reference.
  • ⁍No zero or full-scale adjust required.
  • ⁍Internally addressable test voltage.
  • ⁍0V to 5V input range with single 5V power supply.
  • ⁍TTL/MOS input/output compatible.
  • ⁍0.3× standard width 20-pin dip or 20-pin molded chip carrier

specification

  • ⁍Resolution 8-Bits
  • ⁍Total unadjusted error g (/2LSB and g 1LSB
  • ⁍Single supply 5VDC
  • ⁍Low Power 15 mW
  • ⁍Conversion Time 32 mS
Developer :ADC0811_Datasheet
