ADC 0804
Rated 3.5/5 based on 11 customer reviews

ADC 0804

  • Order within
Available: In Stock
₹ 171.10

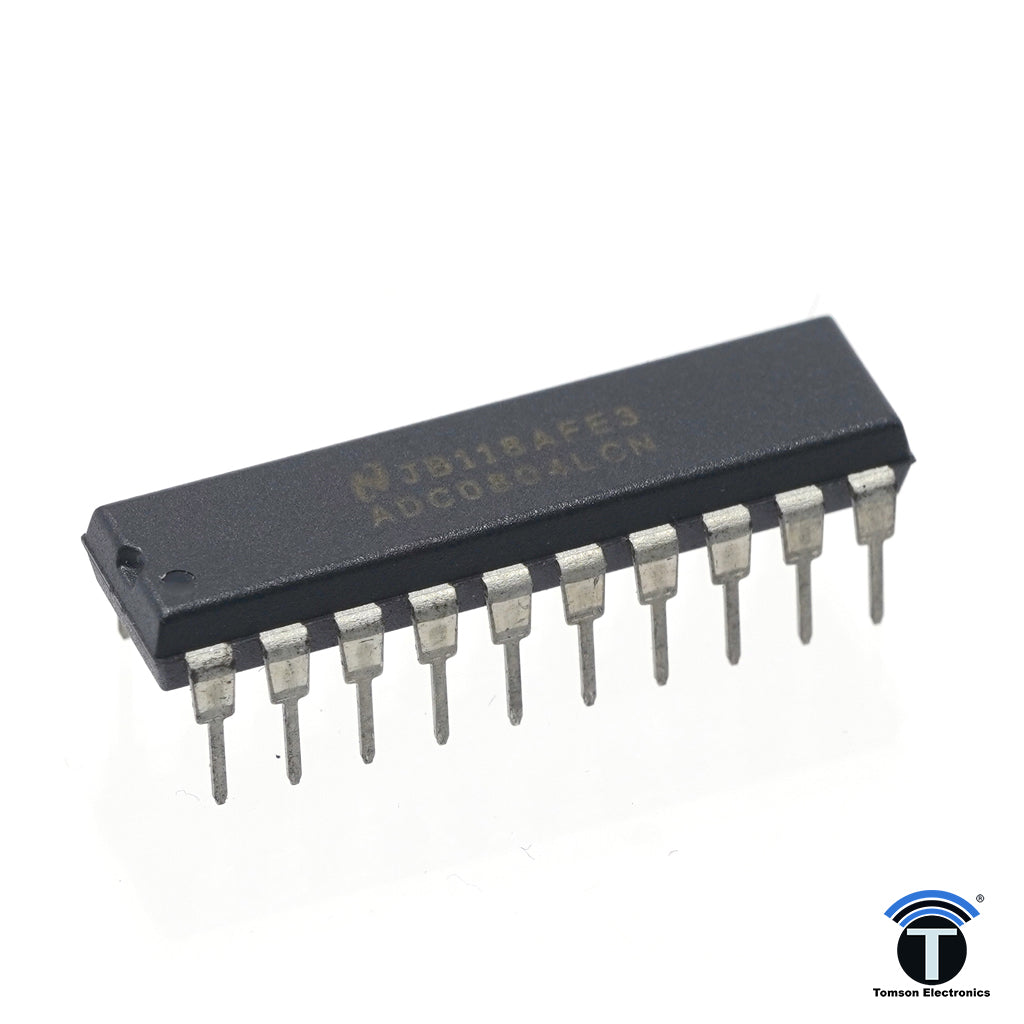

ADC0804

⁍The ADC0804 is a commonly used ADC module, for projects were an external ADC is required. It is a 20-pin Single channel 8-bit ADC module. Meaning it can measure one ADC value from 0V to 5V and the precision when voltage reference (Vref –pin 9) is +5V is 19.53mV (Step size). That is for every increase of 19.53mV on input side there will be an increase of 1 bit at the output side.

⁍This IC is very Ideal to use with Microprocessors like Raspberry Pi, Beagle bone etc.. Or even to use as a standalone ADC module. Every ADC module requires a clock to function; this IC comes with its own internal clock so you don’t have to worry about it. Hence, if you are looking for a compact ADC module with a decent resolution of 8-bit then this IC is for you.

ADC0804 Applications

  • ⁍Operates With Any 8-Bit µP Processors or as a Stand-Alone Device
  • ⁍Widely used with Raspberry Pi, Beagle Bone and other MPU development platforms
  • ⁍Interface to Temp Sensors, Voltage Sources, and Transducers

Features

  • ⁍Easy to interface with all Microprocessors or works Stand alone.
  • ⁍Single channel 8-bit ADC module
  • ⁍On chip Clock available, no need of external oscillator Clock)
  • ⁍Digital output various from 0 to 255
  • ⁍When Vref = 5V, for every 19.53mV of analog value there will be rise of one bit on digital side (Step size)
  • ⁍Available in 20-pin PDIP, SOIC packages
Developer :ADC0804_Datasheet

ADC0804

⁍The ADC0804 is a commonly used ADC module, for projects were an external ADC is required. It is a 20-pin Single channel 8-bit ADC module. Meaning it can measure one ADC value from 0V to 5V and the precision when voltage reference (Vref –pin 9) is +5V is 19.53mV (Step size). That is for every increase of 19.53mV on input side there will be an increase of 1 bit at the output side.

⁍This IC is very Ideal to use with Microprocessors like Raspberry Pi, Beagle bone etc.. Or even to use as a standalone ADC module. Every ADC module requires a clock to function; this IC comes with its own internal clock so you don’t have to worry about it. Hence, if you are looking for a compact ADC module with a decent resolution of 8-bit then this IC is for you.

ADC0804 Applications

  • ⁍Operates With Any 8-Bit µP Processors or as a Stand-Alone Device
  • ⁍Widely used with Raspberry Pi, Beagle Bone and other MPU development platforms
  • ⁍Interface to Temp Sensors, Voltage Sources, and Transducers

Features

  • ⁍Easy to interface with all Microprocessors or works Stand alone.
  • ⁍Single channel 8-bit ADC module
  • ⁍On chip Clock available, no need of external oscillator Clock)
  • ⁍Digital output various from 0 to 255
  • ⁍When Vref = 5V, for every 19.53mV of analog value there will be rise of one bit on digital side (Step size)
  • ⁍Available in 20-pin PDIP, SOIC packages
Developer :ADC0804_Datasheet
