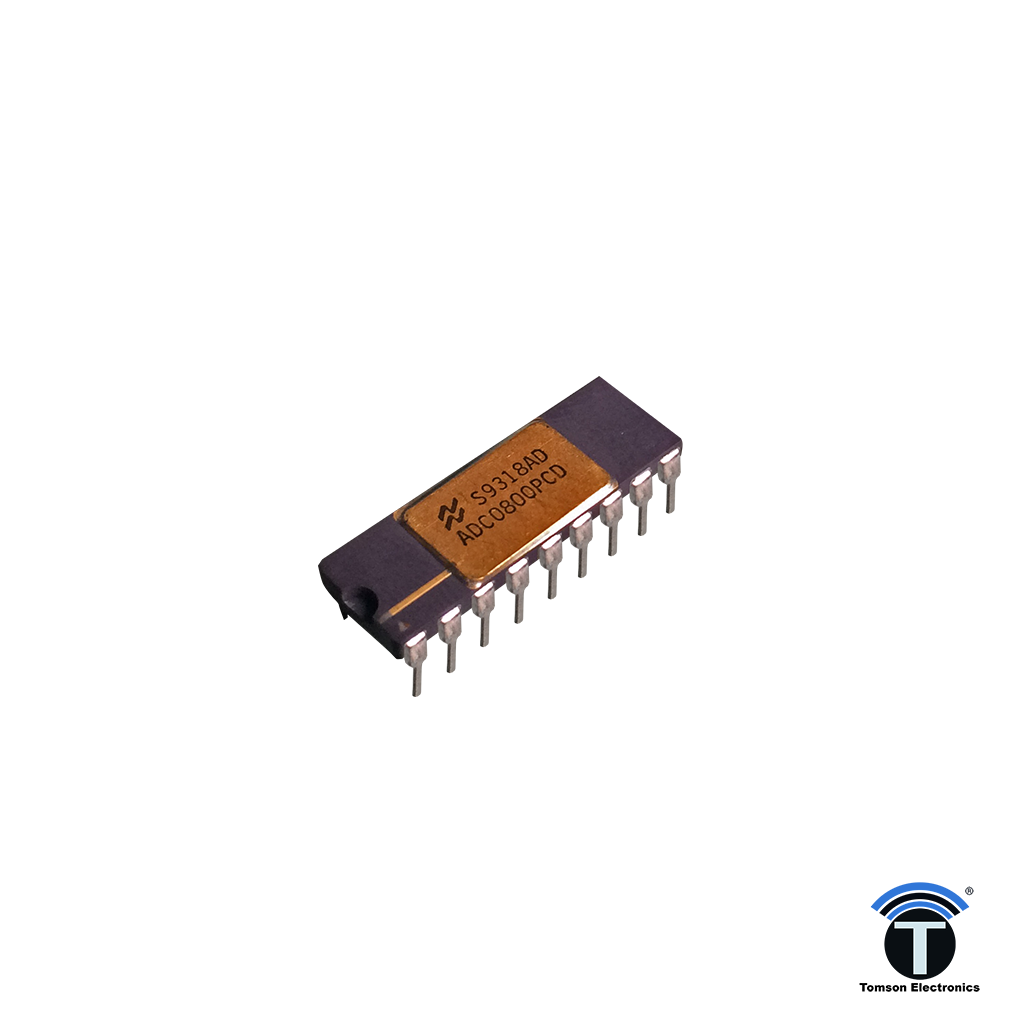

ADC 0800
Rated 3.5/5 based on 11 customer reviews

ADC 0800

  • Order within
Available: In Stock
₹ 565.95

ADC 0800

⁍Digital to Analog Converter IC for Micro-controller Project -CNB644.The ADC0800 is an 8-bit monolithic A/D converter using P-channel ion-implanted MOS technology. It contains a high input impedance comparator, 256 series resistors and analog switches, control logic and output latches. Conversion is performed using a successive approximation technique where the unknown analog voltage is compared to the resistor tie points using analog switches. When the appropriate tie point voltage matches the unknown voltage, conversion is complete and the digital outputs contain an 8-bit complementary binary word corresponding to the unknown. The binary output is TRI-STATE® to permit bussing on common data lines

ADC 0800 Features

  • ⁍Low cost
  • ⁍±5V, 10V input ranges
  • ⁍No missing codes
  • ⁍Ratiometric conversion
  • ⁍TRI-STATE outputs n Fast: TC=50 µs
  • ⁍Contains output latches n TTL compatible
  • ⁍Supply voltages: 5 VDC and −12 VDC
  • ⁍Resolution : 8 bits n Linearity: ±1 LSB
  • ⁍Conversion speed: 40 clock periods n Clock range: 50 to 800 kHz
Developer :ADC 0800_Datasheet

ADC 0800

⁍Digital to Analog Converter IC for Micro-controller Project -CNB644.The ADC0800 is an 8-bit monolithic A/D converter using P-channel ion-implanted MOS technology. It contains a high input impedance comparator, 256 series resistors and analog switches, control logic and output latches. Conversion is performed using a successive approximation technique where the unknown analog voltage is compared to the resistor tie points using analog switches. When the appropriate tie point voltage matches the unknown voltage, conversion is complete and the digital outputs contain an 8-bit complementary binary word corresponding to the unknown. The binary output is TRI-STATE® to permit bussing on common data lines

ADC 0800 Features

  • ⁍Low cost
  • ⁍±5V, 10V input ranges
  • ⁍No missing codes
  • ⁍Ratiometric conversion
  • ⁍TRI-STATE outputs n Fast: TC=50 µs
  • ⁍Contains output latches n TTL compatible
  • ⁍Supply voltages: 5 VDC and −12 VDC
  • ⁍Resolution : 8 bits n Linearity: ±1 LSB
  • ⁍Conversion speed: 40 clock periods n Clock range: 50 to 800 kHz
Developer :ADC 0800_Datasheet
