4 Channel Relay Module 12V DC + 433Mhz Remote Control RF Transmitter + Receiver

  • ₹ 860.00
  • Save ₹ 120

Only 18 left!

DESCRIPTION

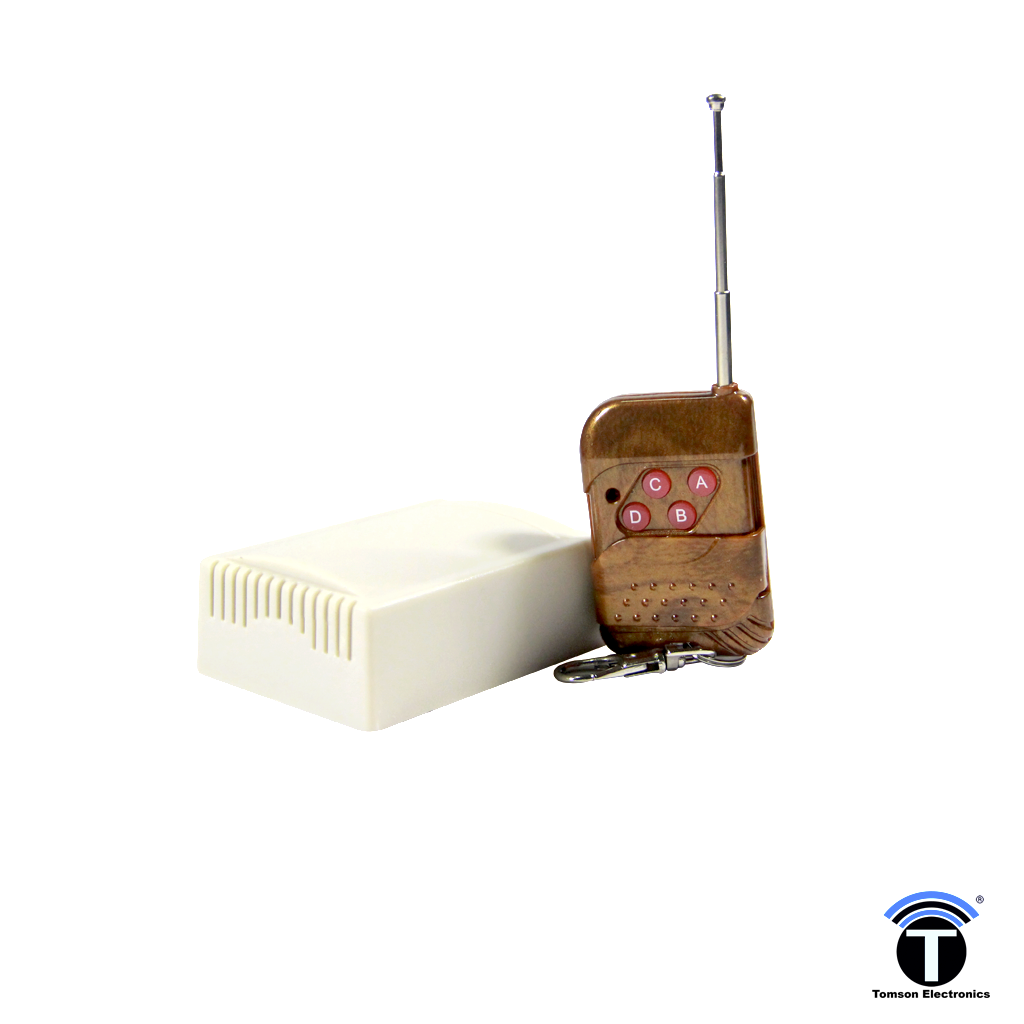

Transmitter

  • Battery Type: 1pc L1028 battery (not included)
  • Remote Distance: 20-30m (Theoretical value)

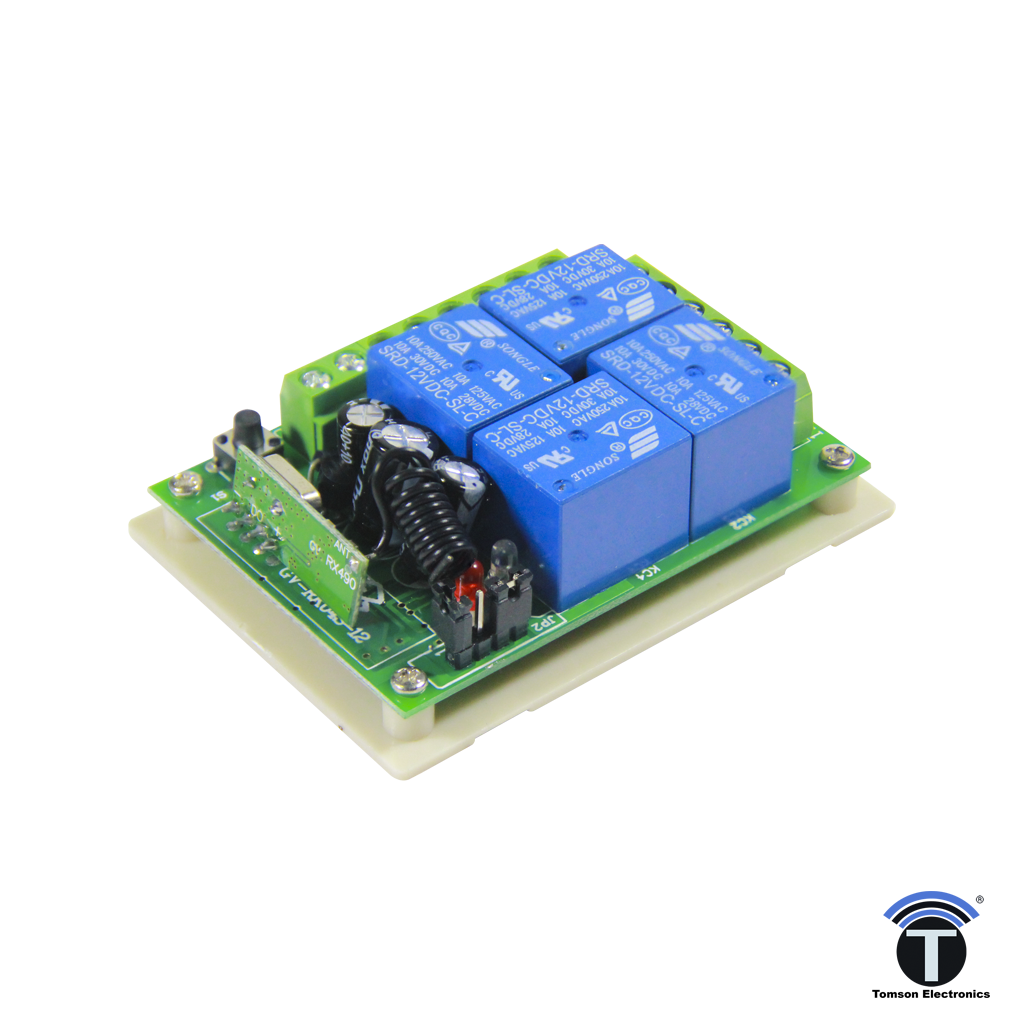

Receiver

  • Input Voltage: DC12V
  • Operating Frequency: 433MHz
  • Channel Numbers: 4CH
  • Operation Way: Inching, Self-locking
  • Coding Way: Intelligent Learning
  • Operating Temperature: -40°C ~ +80°C
  • Output Current: ≤ 10A
  • Receiver Sensitivity: ≥-105dBm
  • Factory Default: Self-locking
  • Code:Learning Code ( jog/Non-Latched .inter-lock/Latched .self-lock /Self Latched )
  • Board Dimension: 72.5x52.5x23mm
  • Case Dimension: 74x53x30mm

FEATURES

  • Working voltage: 23-24.5V DC
  • VCC - power supply positive, GND - power supply negative
  • Working current: 110mA (relay is closed)
  • Static working current: 8mA (relay is released)
  • Module dimensions: 53 x 62 x 22mm, with three fixed bolt hole
  • Module type: 4 channel 433Mhz RF learning wireless receiver module
  • Receiver distance: 15-100m (signal can be through walls)
  • Working mode: support inching control, self lock control and interlock control as you like
  • Working indication:
  • LED D1-D4 light (relay turn on/off indicator light)
  • LED D5 light (power indicator light)
  • LED D6 light (learning signal indicator light)
