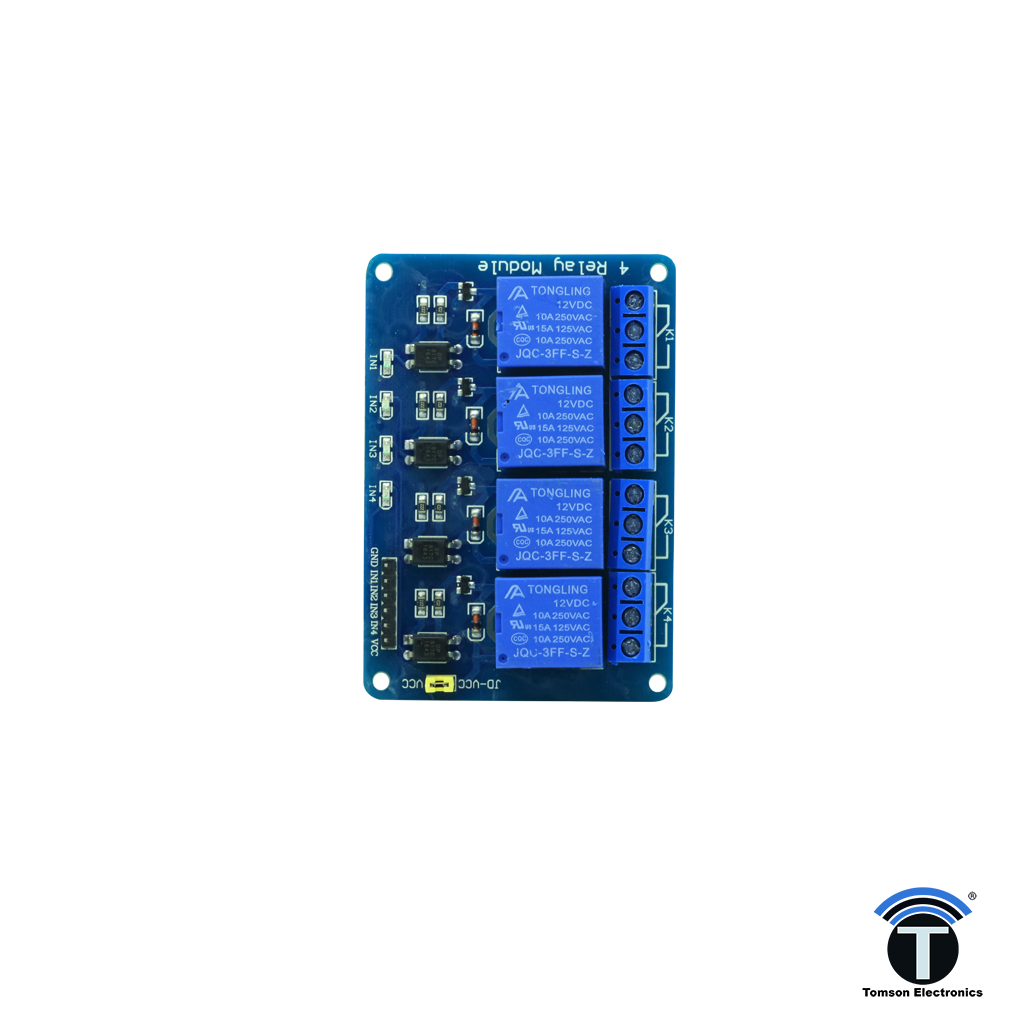

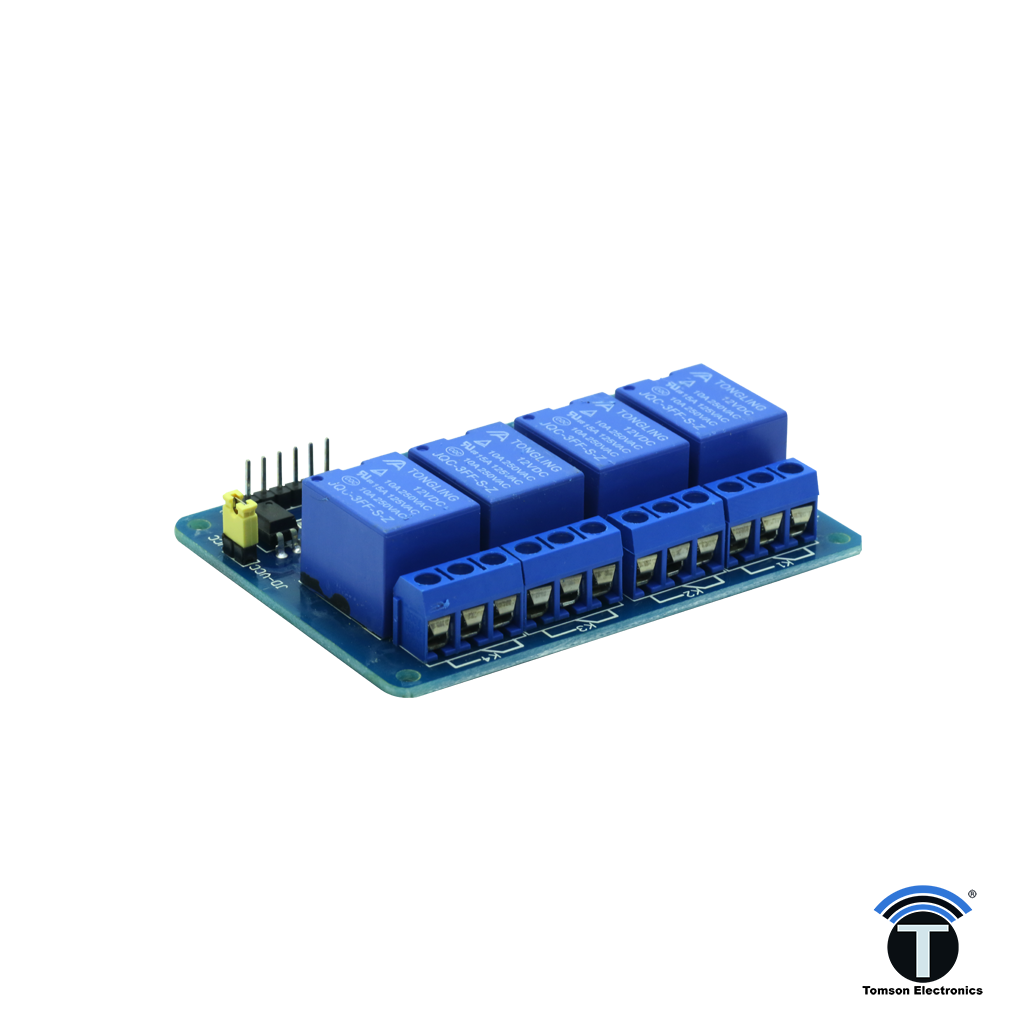

4 CHANNEL RELAY MODULE - 12 V
Rated 3.5/5 based on 11 customer reviews

4 CHANNEL RELAY MODULE - 12 V

  • Order within
Available: In Stock
₹ 194.70 ₹ 230.00

DESCRIPTION

Relay module with 4 onboard relays. Each relay can switch devices with current up to 10A. Optical isolators are included in the circuit to protect your driver device from a reverse voltage surge.

FEATURES

  • The module can be controlled directly by Microcontroller (Raspberry Pi, Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)
  • Easy to install and fix
  • Optically Isolated relays to protect your microcontroller from damage if the equipment being controlled fails
  • Four screw holes, hole diameter 3.1mm
  • relay status indicator light, release status LED is off
  • Relay Maximum output: DC 30V/10A, AC 250V/10A
  • Size: 75mm (l) x 55mm (b) x 19.3mm (h)
  • Weight: 58g
  • PCB Color: Blue

APPLICATIONS

  • Raspberry Pi, Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic can drive the module
  • PLC control
  • Smart home control
  • Industrial sector

ALSO SEARCHED AS:

4 CH RELAY MODULE - 5 V, RELAY MODULE

DESCRIPTION

Relay module with 4 onboard relays. Each relay can switch devices with current up to 10A. Optical isolators are included in the circuit to protect your driver device from a reverse voltage surge.

FEATURES

  • The module can be controlled directly by Microcontroller (Raspberry Pi, Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)
  • Easy to install and fix
  • Optically Isolated relays to protect your microcontroller from damage if the equipment being controlled fails
  • Four screw holes, hole diameter 3.1mm
  • relay status indicator light, release status LED is off
  • Relay Maximum output: DC 30V/10A, AC 250V/10A
  • Size: 75mm (l) x 55mm (b) x 19.3mm (h)
  • Weight: 58g
  • PCB Color: Blue

APPLICATIONS

  • Raspberry Pi, Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic can drive the module
  • PLC control
  • Smart home control
  • Industrial sector

ALSO SEARCHED AS:

4 CH RELAY MODULE - 5 V, RELAY MODULE
