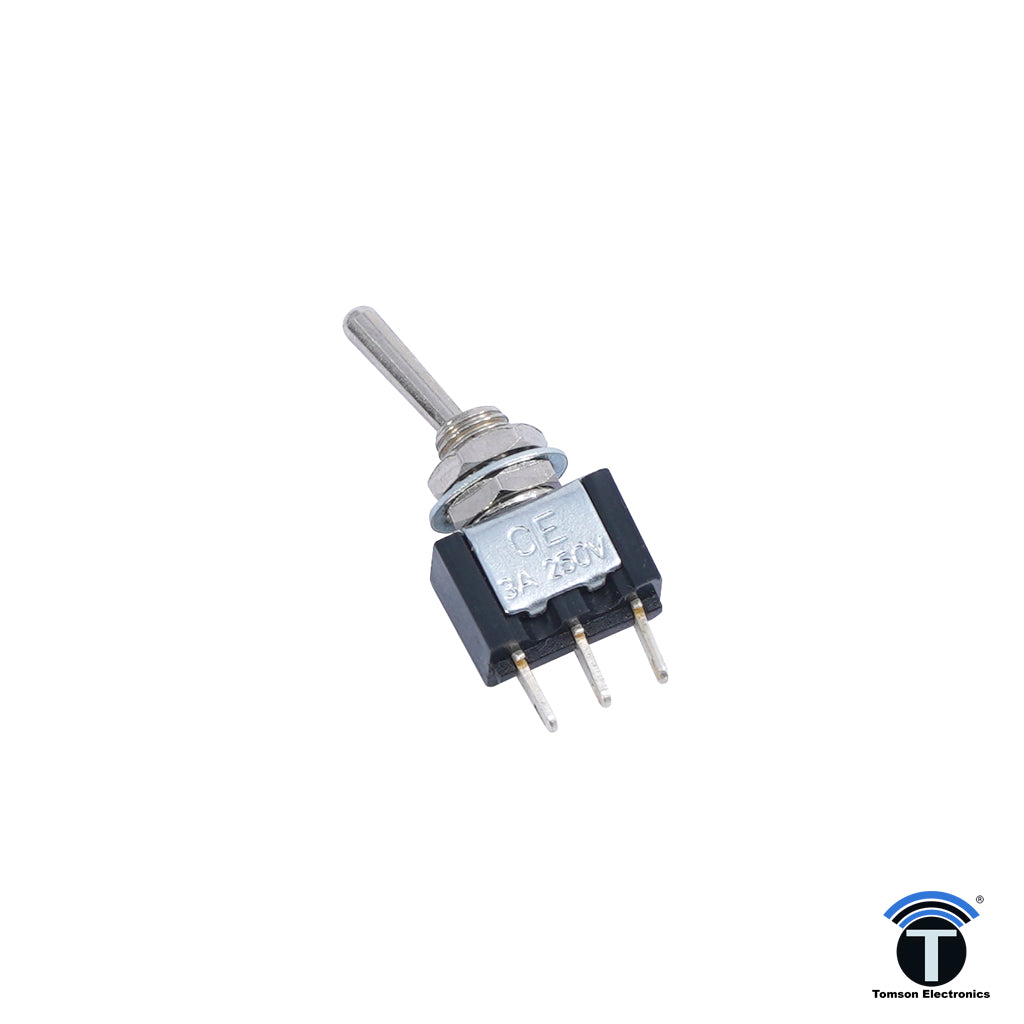

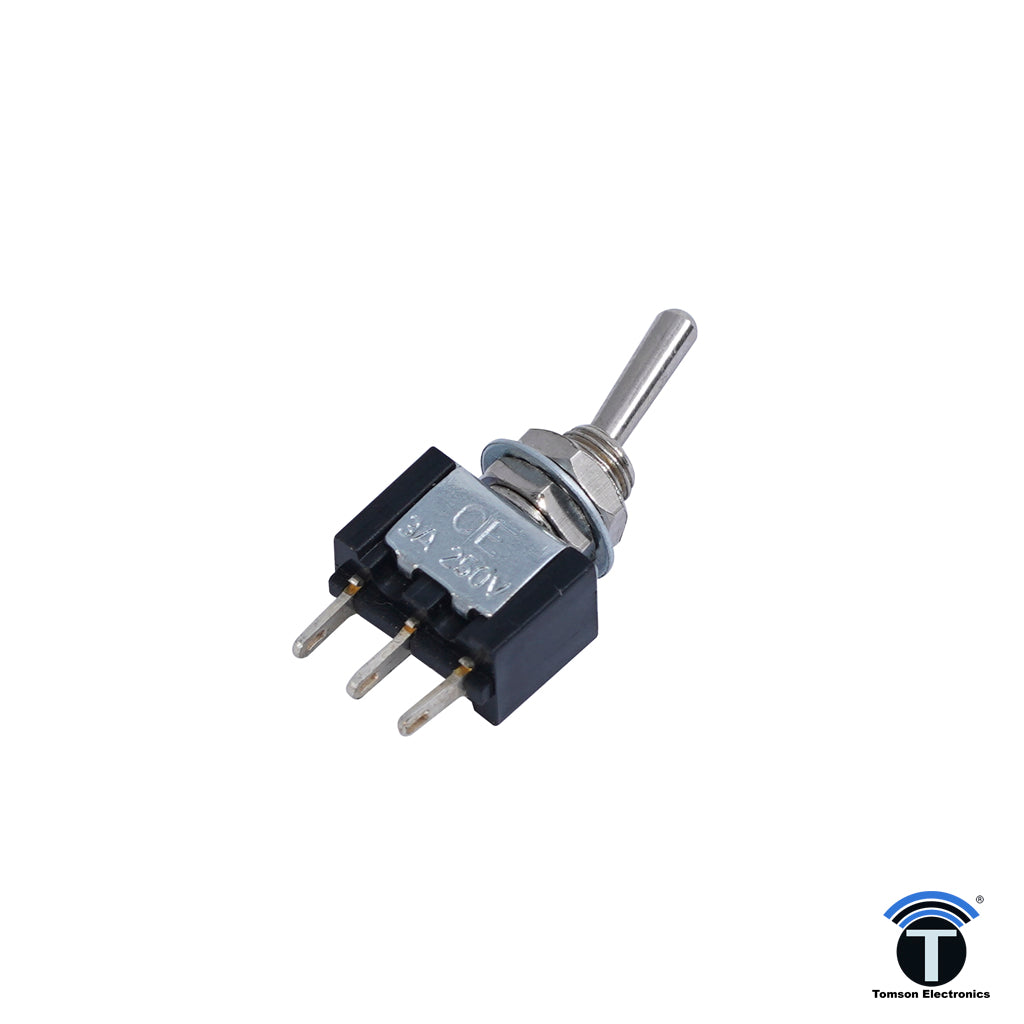

TOGGLE SWITCH (3 PIN)

TOGGLE SWITCH (3 PIN)

Available: In Stock
₹ 18.88 ₹ 25.00

DESCRIPTION

Manufacturer of a wide range of products which include slider toggle switches, 3 PDT toggle switch, big toggle switches, mini toggle switches, micro toggle switches and miniature toggle switch.

Among these switches, Toggle Switch(3 PIN) has test voltage of  2000V  AC, It has an insulation resistance of  1000 Megaohms minimum, the ambient temperature in the range of minus 20 to 65 deg C. It has an electrical life of 10000 cycles minimum and 20000 cycles for Micro Toggles. It has a dielectric strength of  1000V RMS at Sea level. It has a contact resistance of a range 10 milliohms max. initial @ 2-4V DC. 100 milliamps for both coin silver and gold plated contacts.

This toggle switch  has a case made up of  high temp thermoplastic, button  made up of  high temp thermoplastic, actuator made up of brass, chrome plated,  bushing of  brass, nickel plated, spring made up of  stainless steel or spring steel, centre contact/terminals made up of  copper, silver plated or gold plated, housing of  steel, zinc plated for commercial grade. Stainless steel for professional grade, and hardware -made of brass, chrome plated.



FEATURES

  • Power/Voltage 250V
  • Current Rating (In Amps) 4.5A

APPLICATIONS

  • Amplifier for music system
  • Instrumentations

ALSO SEARCHED AS:

3 PIN  TOGGLE SWITCH

DESCRIPTION

Manufacturer of a wide range of products which include slider toggle switches, 3 PDT toggle switch, big toggle switches, mini toggle switches, micro toggle switches and miniature toggle switch.

Among these switches, Toggle Switch(3 PIN) has test voltage of  2000V  AC, It has an insulation resistance of  1000 Megaohms minimum, the ambient temperature in the range of minus 20 to 65 deg C. It has an electrical life of 10000 cycles minimum and 20000 cycles for Micro Toggles. It has a dielectric strength of  1000V RMS at Sea level. It has a contact resistance of a range 10 milliohms max. initial @ 2-4V DC. 100 milliamps for both coin silver and gold plated contacts.

This toggle switch  has a case made up of  high temp thermoplastic, button  made up of  high temp thermoplastic, actuator made up of brass, chrome plated,  bushing of  brass, nickel plated, spring made up of  stainless steel or spring steel, centre contact/terminals made up of  copper, silver plated or gold plated, housing of  steel, zinc plated for commercial grade. Stainless steel for professional grade, and hardware -made of brass, chrome plated.



FEATURES

  • Power/Voltage 250V
  • Current Rating (In Amps) 4.5A

APPLICATIONS

  • Amplifier for music system
  • Instrumentations

ALSO SEARCHED AS:

3 PIN  TOGGLE SWITCH
