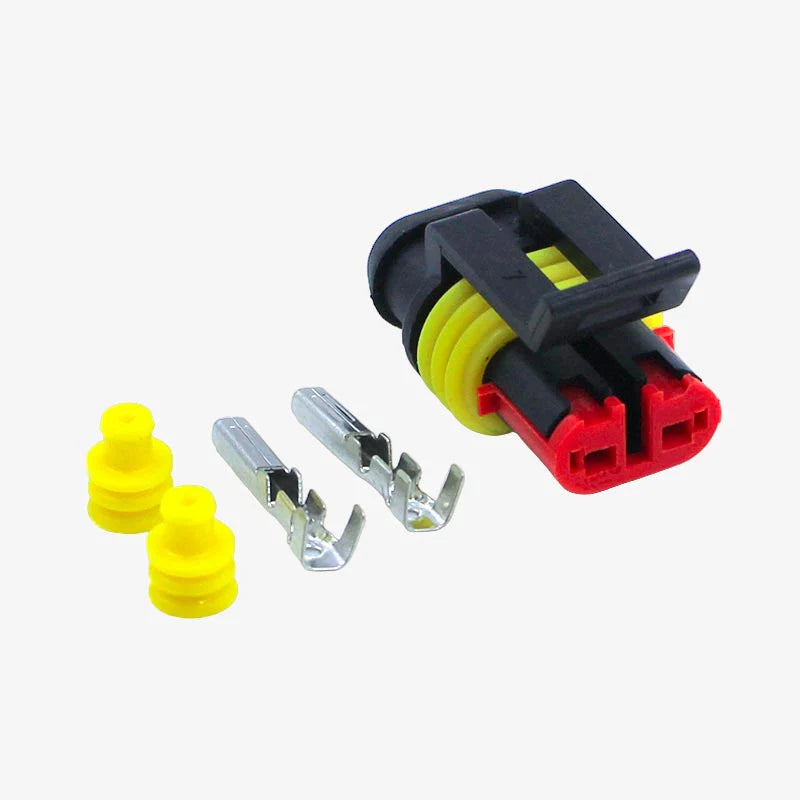

2 Pin Automotive Waterproof Connector Kit - AMP Superseal 1.5mm Series IP67

• Number of Pins: 2 Pin
• Series: Superseal 1.5mm
• Current Rating: 14 Amps Max
• Voltage Rating: 24V DC / 250V AC
• Ingress Protection: IP67 (Dust-tight and immersion-proof)
• Operating Temperature: -40°C to +125°C
• Wire Range: 0.5mm² to 1.5mm² (20-16 AWG)
• Housing Material: Polyamide 6.6 (PA66)
• Terminal Material: Tin-Plated Copper Alloy

• Automotive: Fog lights, horn connections, and sensor pigtails (O2, Map, Temp).
• Motorcycles: Tail lights and turn signal upgrades for off-road use.
• Marine: Bilge pump wiring and deck lighting in saltwater environments.
• Industrial: Outdoor power supply connections and robotics.

• Crimping: For a professional seal, use a dedicated Superseal Crimping Tool. Standard pliers may deform the terminals.
• Assembly: Slide the yellow silicon seal onto the wire before stripping the insulation. Ensure the seal is crimped along with the wire's outer jacket.
• Orientation: Listen for the "click" of the secondary lock (red part) to confirm the terminal is locked in place.

• HID Connector Plug
• Sealed Electrical Multi-Plug
• IP67 Wire-to-Wire Joiner
• Car Sensor Connector Replacement

For detailed dimensional drawings and full mechanical testing reports, refer to the TE Connectivity Superseal 1.5 Series Technical Data Sheet.
