10K Ohm 16mm ELCON Linear Rotary Potentiometer with Metal Shaft and Solder Lugs for Panel Mount
10K Ohm 16mm ELCON Linear Rotary Potentiometer with Metal Shaft and Solder Lugs for Panel Mount
TOMSON ELECTRONICS

10K Ohm 16mm Rotary Potentiometer (ELCON)

No reviews
  • Share
  • Tweet
Product SKU: RES-05603
Available:
Only 147 items in stock
147 items in stock
In stock
Pre-order
Out of stock
₹ 16.00 (Incl.Tax)

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.
Notify me When Available
You will receive an email when the product is available.
For Bulk Enquries:
+91 90614 50999
  • Description
  • Specifications
  • Applications
  • Usage Notes
  • Package Includes
  • Reviews

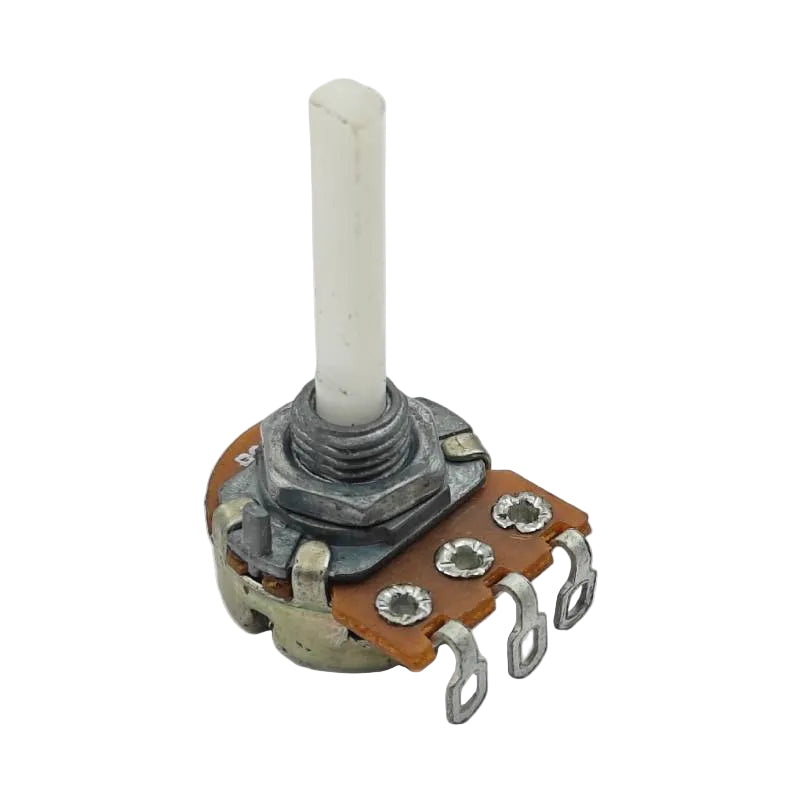

The 10K Ohm 16mm Rotary Potentiometer (ELCON) is a high-precision variable resistor designed for smooth and reliable analog control. Featuring a 10K linear taper (Type B), this ELCON series potentiometer is widely used for volume adjustment, speed regulation, and parameter tuning in electronic circuits. Its compact 16mm body and rugged metal shaft make it an excellent choice for panel-mount applications in audio amplifiers, industrial controllers, and DIY Arduino projects.

People also search for: elcon 10k potmeter, 10k linear potentiometer 16mm, b10k rotary switch, 10k variable resistor elcon, panel mount 10k ohm pot, 16mm volume control pot.


  • Resistance Value: 10K Ohms (103)
  • Brand: ELCON
  • Taper Type: Linear (Type B)
  • Shaft length: 16mm
  • Shaft Type: Plastic
  • Power Rating: 0.1W - 0.2W
  • Tolerance: ±20%
  • Rotation Angle: 300° ± 5°
  • Mounting: Panel Mount with Solder Lugs
  • Audio equipment (Gain, Tone, and Volume control)
  • Motor speed controllers and dimming circuits
  • Sensor calibration in robotics and automation
  • User-interface tuning for Arduino and ESP32 projects
  • Testing and measurement instrumentation
  • Wiper Pin: Pin 2 is the center wiper; ensure correct wiring to avoid signal inversion.
  • Panel Mounting: Use the included hardware to secure the pot to your enclosure; do not over-tighten the nut.
  • Soldering: Apply heat to the solder lugs for no more than 3 seconds to maintain the integrity of the internal carbon track.
  • 1 × 10K Ohm 16mm Rotary Potentiometer (ELCON)
  • 1 × Mounting Nut
