1.5 Inch Water Flow Sensor YF- DN40

Available: In Stock
₹ 1,180.00 ₹ 1,399.00
  • Order within
Secure

DESCRIPTION

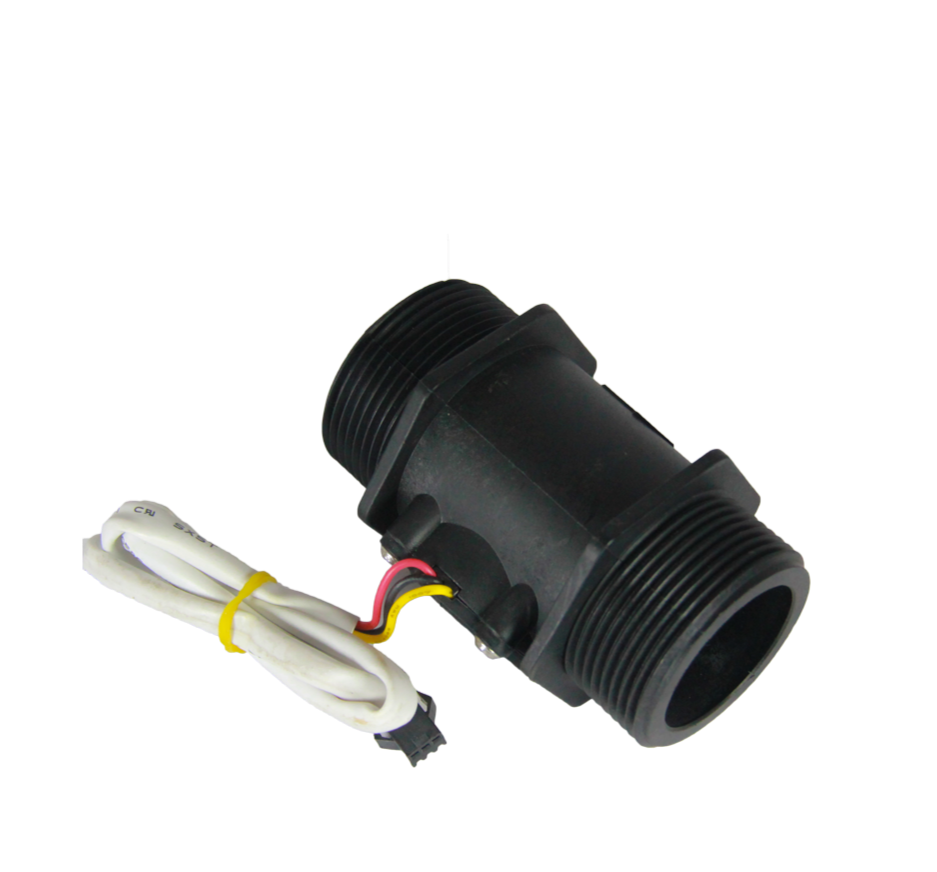

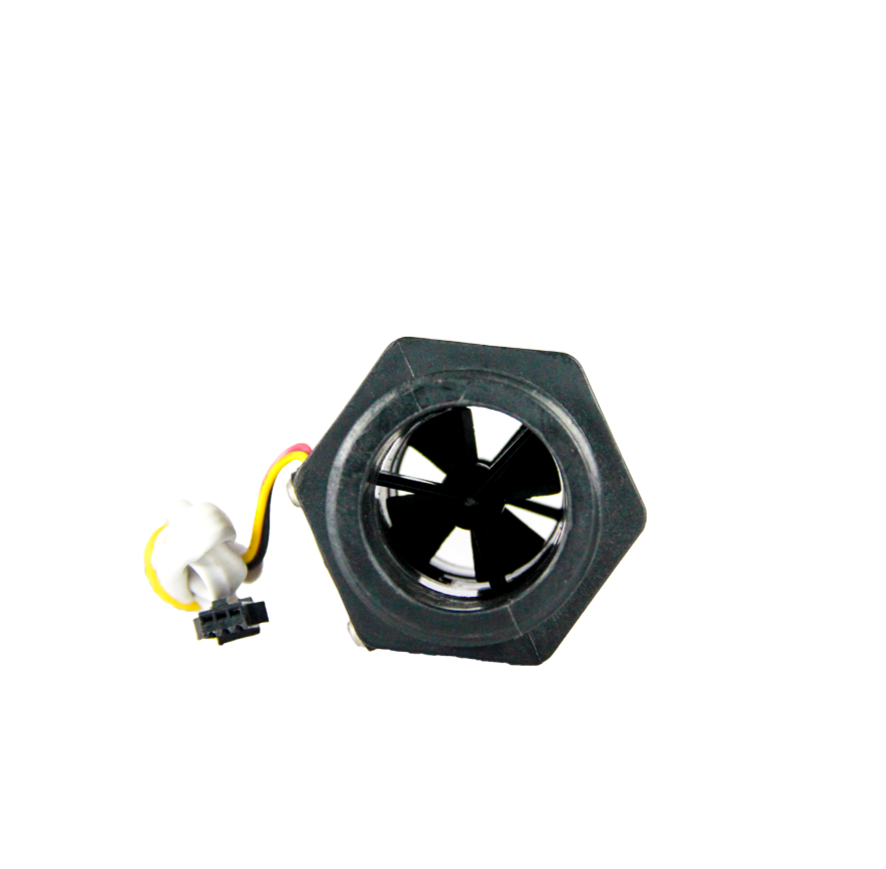

Water flow sensor consists of a plastic valve body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. It's speed changes with the different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. This one is suitable to detect flow in water dispenser or coffee machine.

SPECIFICATIONS

  • Thread size: Male 1 1/2”
  • Size:L  92x OD46  X1.5"
  • Colour: Black colour
  • Flow rate: 5~200L/min
  • Flow Pulse:  F(Hz)=(0.45xQ) +/-3%    Q=L/min
  • 1L water= 27Pulse
  • Max. Working Current: 15mA (DC5 V)
  • Min. Working Voltage: DC 4.5V
  • Working Voltage: DC 5V~24V
  • Load Capacity: =10 mA (DC 5 V)
  • Operating  Working  Temperature :
  • -25 Degree centigrade to +80 Degree centigrade
  • Liquid Temperature: 85
  • Accuracy: 3~5%
  • Working environment: water, liquid,  light oil etc
