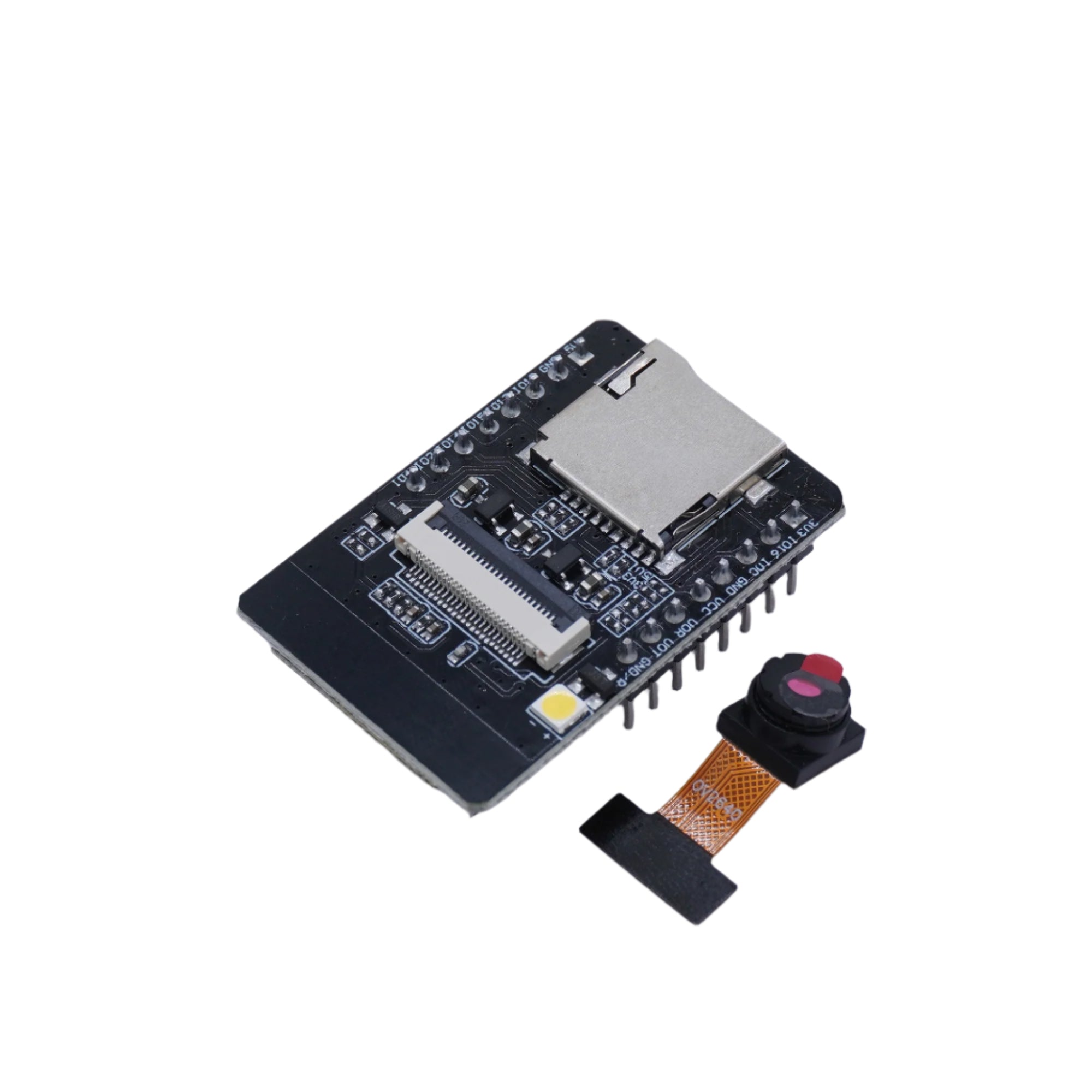

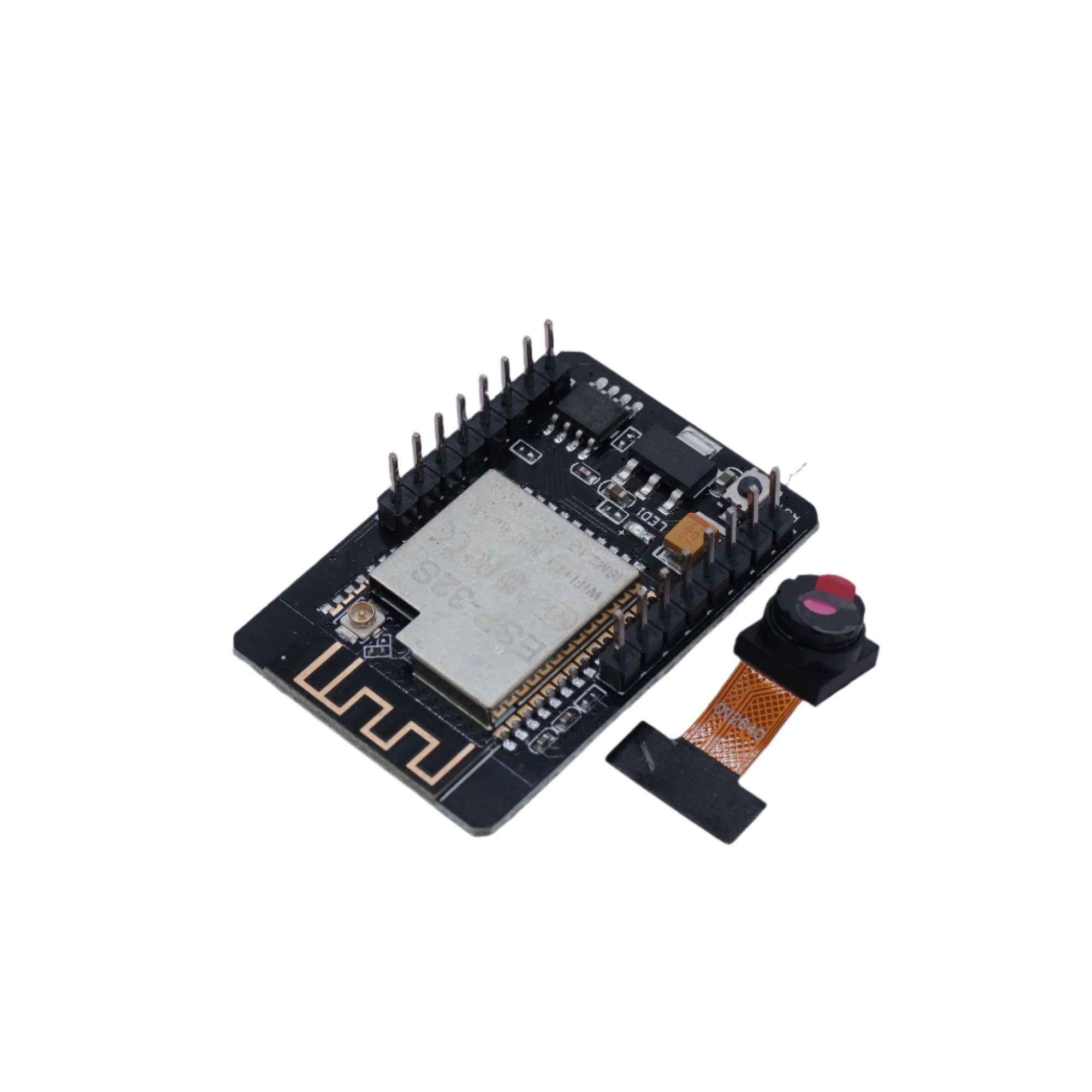

esp32cam_with_camera
esp32cambackwithcamera
esp32cam_with_camera
esp32cambackwithcamera
TOMSON ELECTRONICS PRIVATE LIMITED

ESP32 CAM WiFi Module Bluetooth with OV2640 Camera Module (Original)

No reviews
  • Share
  • Tweet
Product SKU: IOT-28118
Available:
Only 16 items in stock
16 items in stock
In stock
Pre-order
Out of stock
₹ 749.00 (Incl.Tax)
₹ 0.00

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
For Bulk Enquries:
+91 90614 50999
  • Description
  • Specifications
  • Applications
  • Usage Notes
  • Reviews

The ESP32-CAM is a compact development board that combines the power of the ESP32 SoC with Wi-Fi and Bluetooth connectivity, along with an onboard OV2640 camera module. It supports image capture, video streaming, and wireless communication, making it ideal for IoT applications such as surveillance, smart doorbells, image processing, and facial recognition. With onboard microSD card support and low power consumption, it is a cost-effective solution for embedded vision projects.

  • Microcontroller: ESP32-D0WD (Dual-core 32-bit, up to 240MHz)
  • Wireless: 2.4GHz Wi-Fi 802.11 b/g/n + Bluetooth 4.2 BLE
  • Camera: OV2640 2MP (1600x1200 max resolution)
  • RAM: 520KB SRAM + 4MB PSRAM
  • Storage: MicroSD card slot (up to 4GB)
  • GPIO: 9 usable GPIOs (shared with camera/sd)
  • Power Supply: 5V via onboard voltage regulator
  • Dimensions: Approx. 27mm x 40mm
  • Wireless surveillance systems
  • Smart doorbell or entry monitoring
  • Face detection and recognition
  • IoT-enabled image processing projects
  • Remote-controlled camera bots or automation
  • No onboard USB – use an external USB-to-TTL converter (3.3V logic) for programming.
  • Compatible with Arduino IDE and ESP-IDF development environments.
  • Insert the microSD card before powering up for logging applications.
  • Ensure stable 5V power supply (avoid voltage drops during Wi-Fi transmission).
  • GPIOs are limited due to camera and SD card sharing—refer to pinout before connecting peripherals.
