USB Logic Analyzer 24Mhz 8 Channel

DESCRIPTION

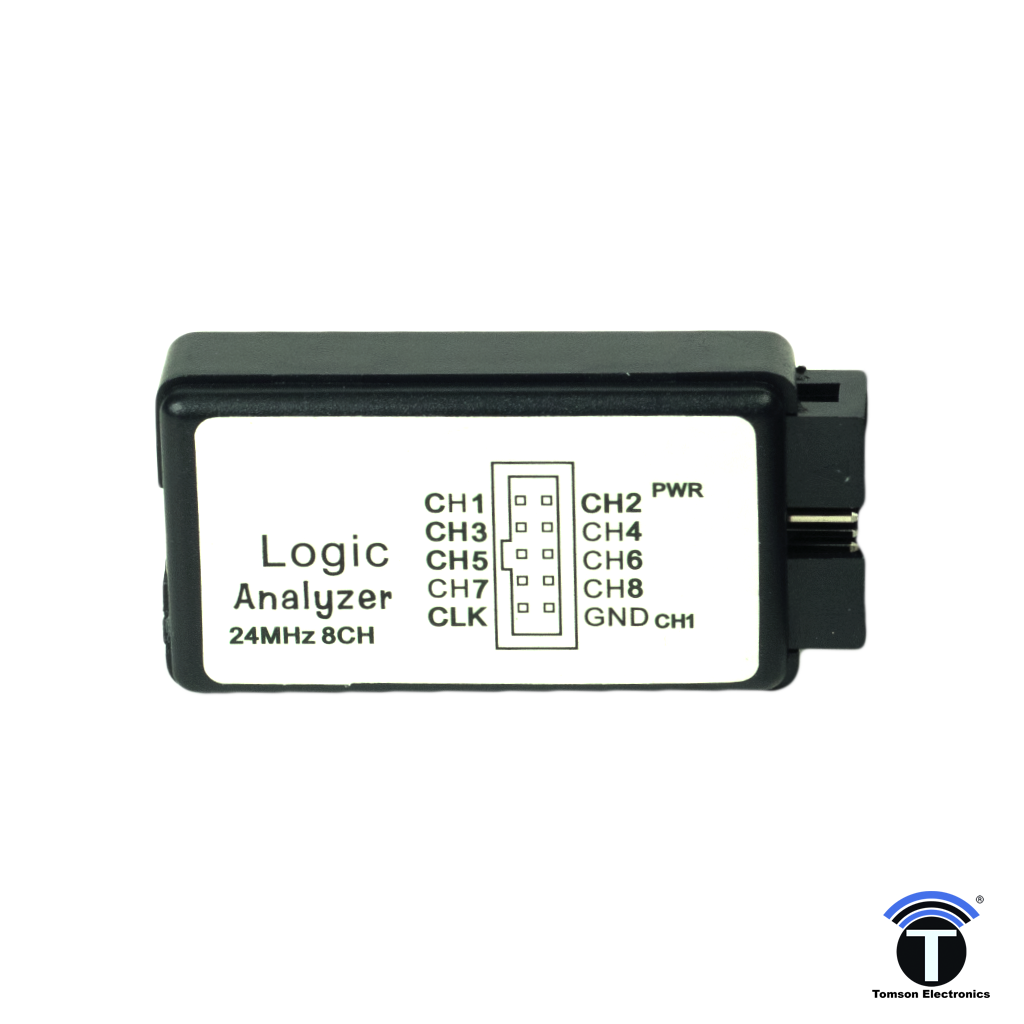

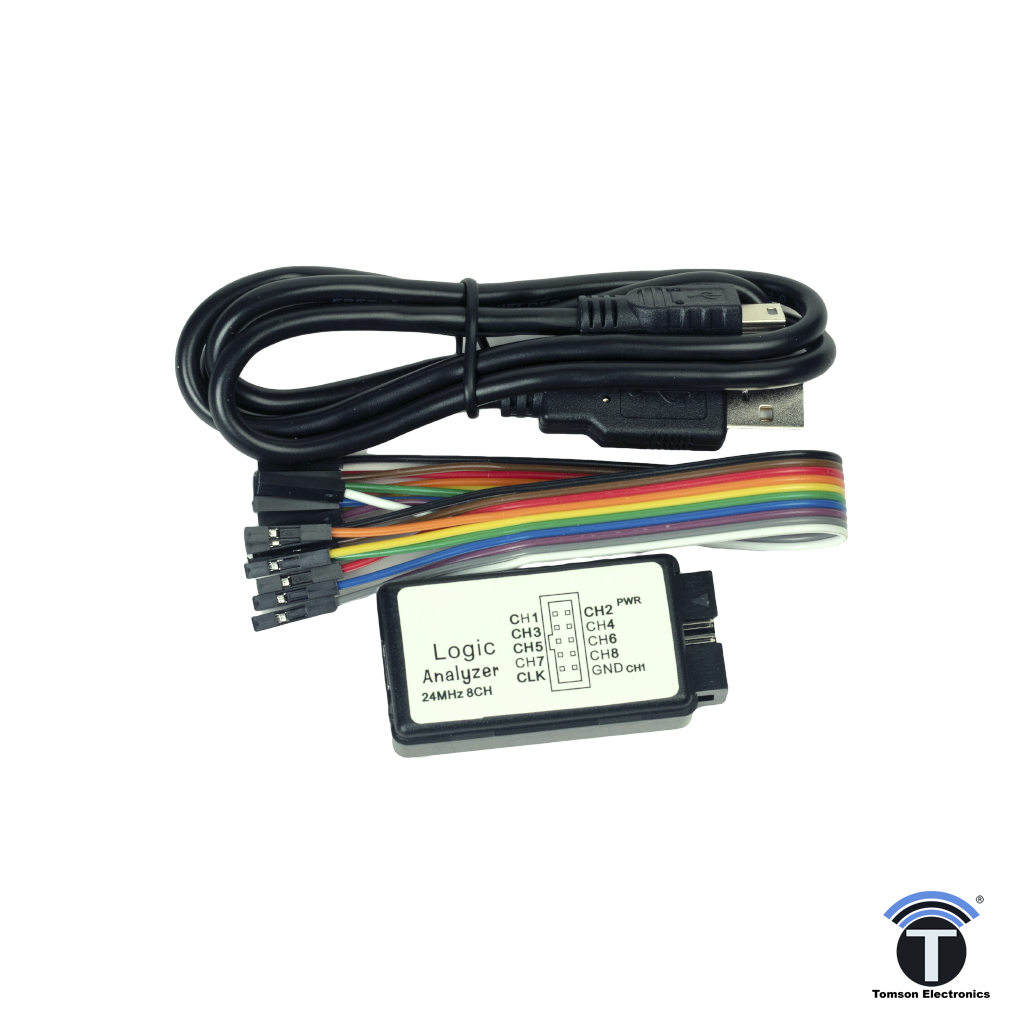

This is a very affordable 24Mhz 8 Channel USB Logic analyzer. This is a hobbyist level analyzer, ideal for testing your Arduino or other hobbyist microcontroller's communications. A logic analyzer is a must have tool for any serious electronics hobbyist. With a logic analyzer, it is possible to see a visual representation of the zeros and ones that are flashing by between two components. A logic analyzer is different from an oscilloscope because the analyzer allows you to capture the data on a PC for a more detailed analysis of the data which is being transmitted and received. This logic analyzer supports 10 different communications standards (see Specifications below). with 8 channels it will allow you to monitor up to 8 different wires. So on an Arduino, you could monitor the Serial port (tx/Rx pins), the I2C port (pins A4, A5), and the SPI port (pins 10, 11, 12, and 13) all at the same time.

SPECIFICATION

• 8 Channels
• Supports triggering (rising, high, falling, low)
• Up to 24Mhz sampling
• Up to 10 Billion samples
• Max Voltage: 5.25Vdc
• Can analyze UART, IIC, and SPI, etc automatically
• Great for MCU, ARM system and FPGA development
• Size: Approx. 25 x 7 x 5mm;
• Voltage: 0-5.5V
• Threshold Voltage: 1.5V
• The sampling rate can be set as below:
  24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;
• Data upload real time, the max of the depth of the collection is 10T, far from the practical need.
