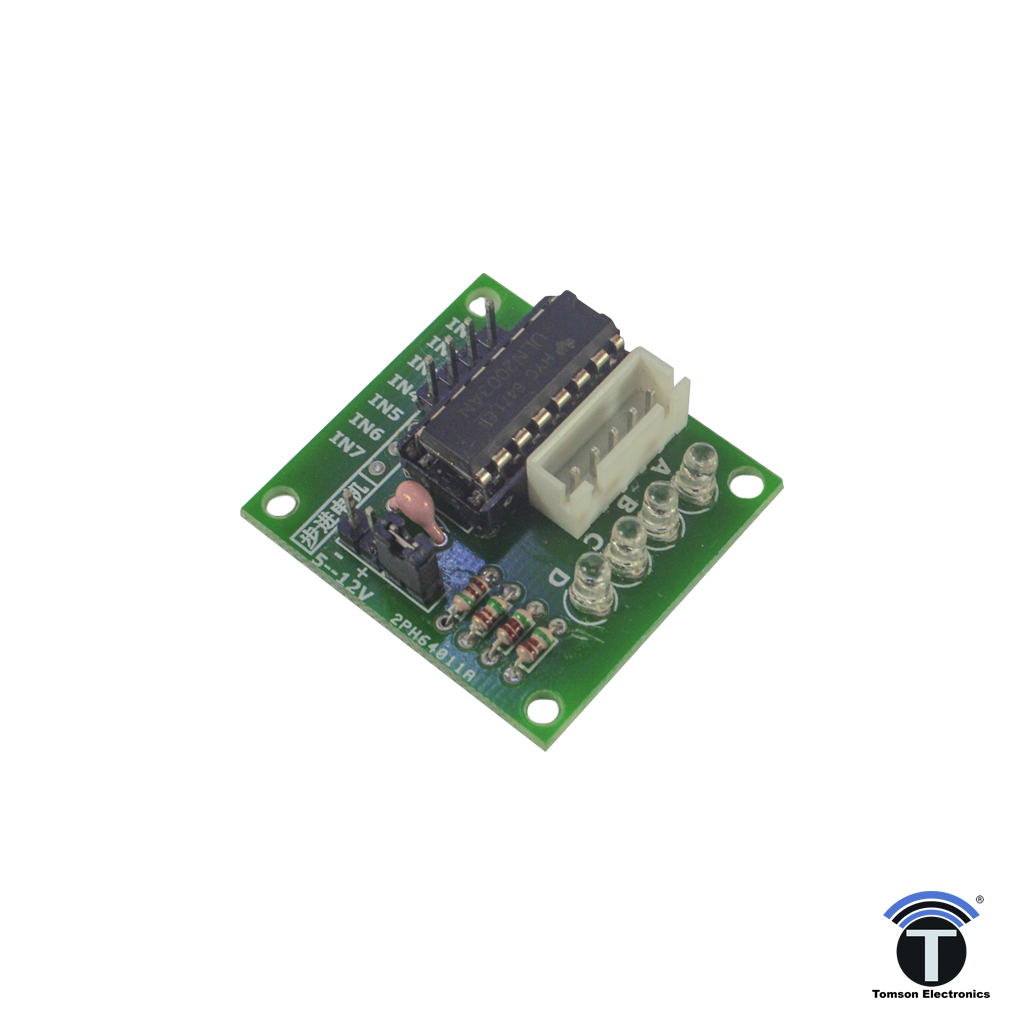

ULN 2003 Break out Board for Stepper Motor

DESCRIPTION

The Mini Stepper Motor Driver is small size and easy to use. It used ULN2003 to amplify the control signal from the Arduino. This Ultra Lightweight and cheap option commonly used to run and control the small applications stepper motors.

The step motor is to a machine to convert pulse to angular displacement. So if you give stepper driver a certain pulse signal, it will drive step motor to a certain angle. you can control the angle the stepper moved by the number of the pulse. And you also can control the speed of the stepper rotate by the frequency of the pulse. The following picture is the schematic of the stepper driver.

FEATURES

• Dimensions: 32 x 18 x 11mm (LxWxH)
• Weight: 3 gm
• 5-12V power supply
• 4-way signal indicator
• Chip all the pins have Input leads Mounted for easy connection to use
• XH-5P socket can be connected directly 28BYJ-48 Model stepper motor

DEVELOPMENT SOURCES

Datasheet

APPLICATIONS

• Used to drive high current loads using Digital Circuits
• Can be used to drive Stepper motors
• High current LED’s can be driven
• Relay Driver module (can drive 7 relays)
• Logic Buffers in digital electronics
• Used as Touch sensor for Arduino
