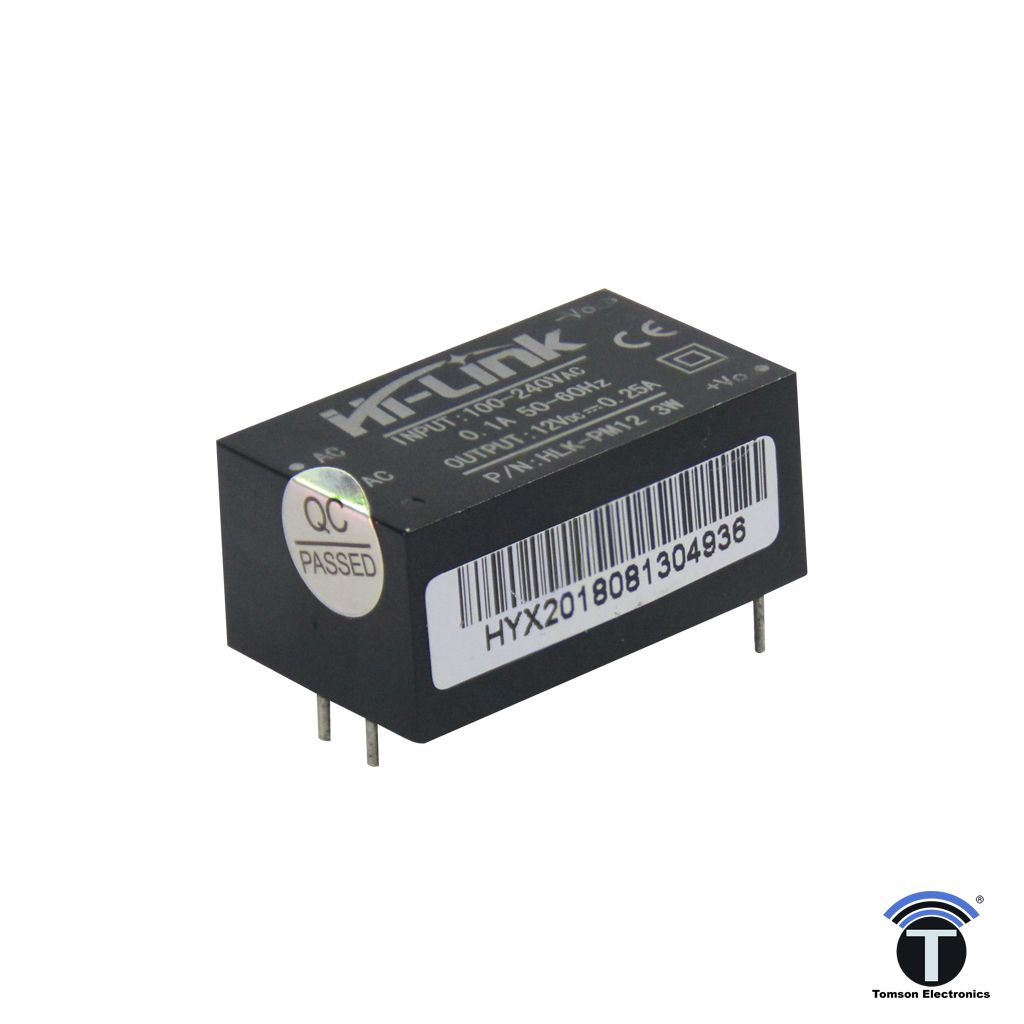

HLK-PM12 Ac 240V To Dc 12V 3W Step-Down Power Supply Module

DESCRIPTION
HLK-PM12 from Hi Link is an isolated power supply module with an input range of 100 volts to 240 volt AC and output of DC 12 volt and power rating of 3 watts. Its ultra-compact size makes it perfect to use in places where size is a constraint. It is a compact PCB mountable plastic enclosed power supply module.  Low ripple and low noise,
Output overload and short circuit protection High efficiency, high power density The product is designed to meet the requirements of EMC and Safety Test Low power consumption, environmental protection, no-load loss <0.1W

FEATURES

Rated input voltage: 100-240 VAC

Input voltage range: 90-264 VAC

Maximum input current: ≤0.2 A

Load rated output voltage: +12±0.1 VDC

Full rated output voltage: +12±0.2 VDC

Max Output Current (Short-term): ≥1000 mA

Max Output Current (Long-term): ≥600 mA

Voltage Regulation: ±0.2%

Load Regulation: ±0.5%

Output ripple and noise: ≤70 mV

Input Low Voltage Efficiency: Vin=110VAc，Output full-load≥69%

Input High Voltage Efficiency: Vin=220VAc，output full-load≥70%

Operating Temp: -20-+60 ℃

Storage Temp: -40-+80 ℃
