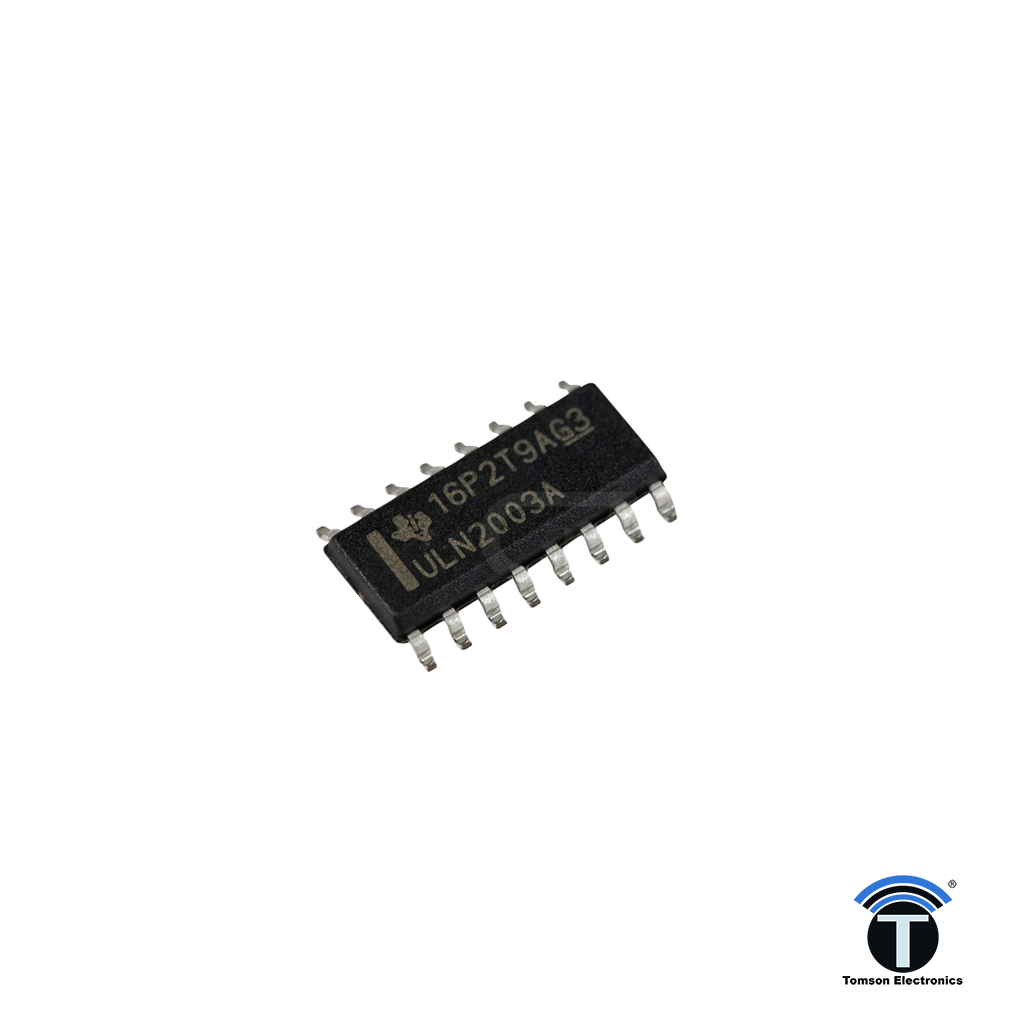

IC ULN 2003 - SMD Package

  • Order within
Available: In Stock
₹ 11.80 ₹ 19.30

DESCRIPTION

Ideally suited for interfacing between low-level logic circuitry and multiple peripheral power loads, the Series ULN20xxA/L high-voltage, high-current Darlington arrays feature continuous load current ratings to 500 mA for each of the seven drivers.  At an appropriate duty cycle depending on ambient temperature and number of drivers turned ON simultaneously, typical power loads totaling over 230 W (350 mA x 7, 95 V) can be controlled.  Typical loads include relays, solenoids, stepping motors, magnetic print hammers, multiplexed LED and incandescent displays, and heaters.  All devices feature open-collector outputs with integral clamp diodes.
The ULN2003A/L and ULN2023A/L have series input resistors selected for operation directly with 5 V TTL or CMOS.  These devices will handle numerous interface needs — particularly those beyond the capabilities of standard logic buffers.
The  ULN2003A/L is the standard Darlington arrays.  The outputs are capable of sinking 500 mA and will withstand at least 50 V in the OFF state.  Outputs may be paralleled for higher load current capability.  The ULN2023A/L will withstand 95 V in the OFF state.

FEATURES

  • Transistor Polarity: NPN
  •  Collector Emitter Voltage V(br)ceo: 50V
  •  DC Collector Current: 350mA
  •  Operating Temperature Range: -20°C to +70°C
  •  Transistor Case Style: SOIC
  •  No. of Pins: 16
  •  SVHC: No SVHC (18-Jun-2012)
  •  Current Ic Continuous a Max: 500mA
  •  Module Configuration: Seven
  •  No. of Transistors: 7
  •  Package / Case: SOIC
  •  Termination Type: SMD

DEVELOPMENT SOURCES

SMD IC ULN 2003

ALSO SEARCHED AS:

IC ULN 2003 - SMD Package,IC  SMD  ULN 2003

DESCRIPTION

Ideally suited for interfacing between low-level logic circuitry and multiple peripheral power loads, the Series ULN20xxA/L high-voltage, high-current Darlington arrays feature continuous load current ratings to 500 mA for each of the seven drivers.  At an appropriate duty cycle depending on ambient temperature and number of drivers turned ON simultaneously, typical power loads totaling over 230 W (350 mA x 7, 95 V) can be controlled.  Typical loads include relays, solenoids, stepping motors, magnetic print hammers, multiplexed LED and incandescent displays, and heaters.  All devices feature open-collector outputs with integral clamp diodes. The ULN2003A/L and ULN2023A/L have series input resistors selected for operation directly with 5 V TTL or CMOS.  These devices will handle numerous interface needs — particularly those beyond the capabilities of standard logic buffers. The  ULN2003A/L is the standard Darlington arrays.  The outputs are capable of sinking 500 mA and will withstand at least 50 V in the OFF state.  Outputs may be paralleled for higher load current capability.  The ULN2023A/L will withstand 95 V in the OFF state.

FEATURES

  • Transistor Polarity: NPN
  •  Collector Emitter Voltage V(br)ceo: 50V
  •  DC Collector Current: 350mA
  •  Operating Temperature Range: -20°C to +70°C
  •  Transistor Case Style: SOIC
  •  No. of Pins: 16
  •  SVHC: No SVHC (18-Jun-2012)
  •  Current Ic Continuous a Max: 500mA
  •  Module Configuration: Seven
  •  No. of Transistors: 7
  •  Package / Case: SOIC
  •  Termination Type: SMD

DEVELOPMENT SOURCES

SMD IC ULN 2003

ALSO SEARCHED AS:

IC ULN 2003 - SMD Package,IC  SMD  ULN 2003
