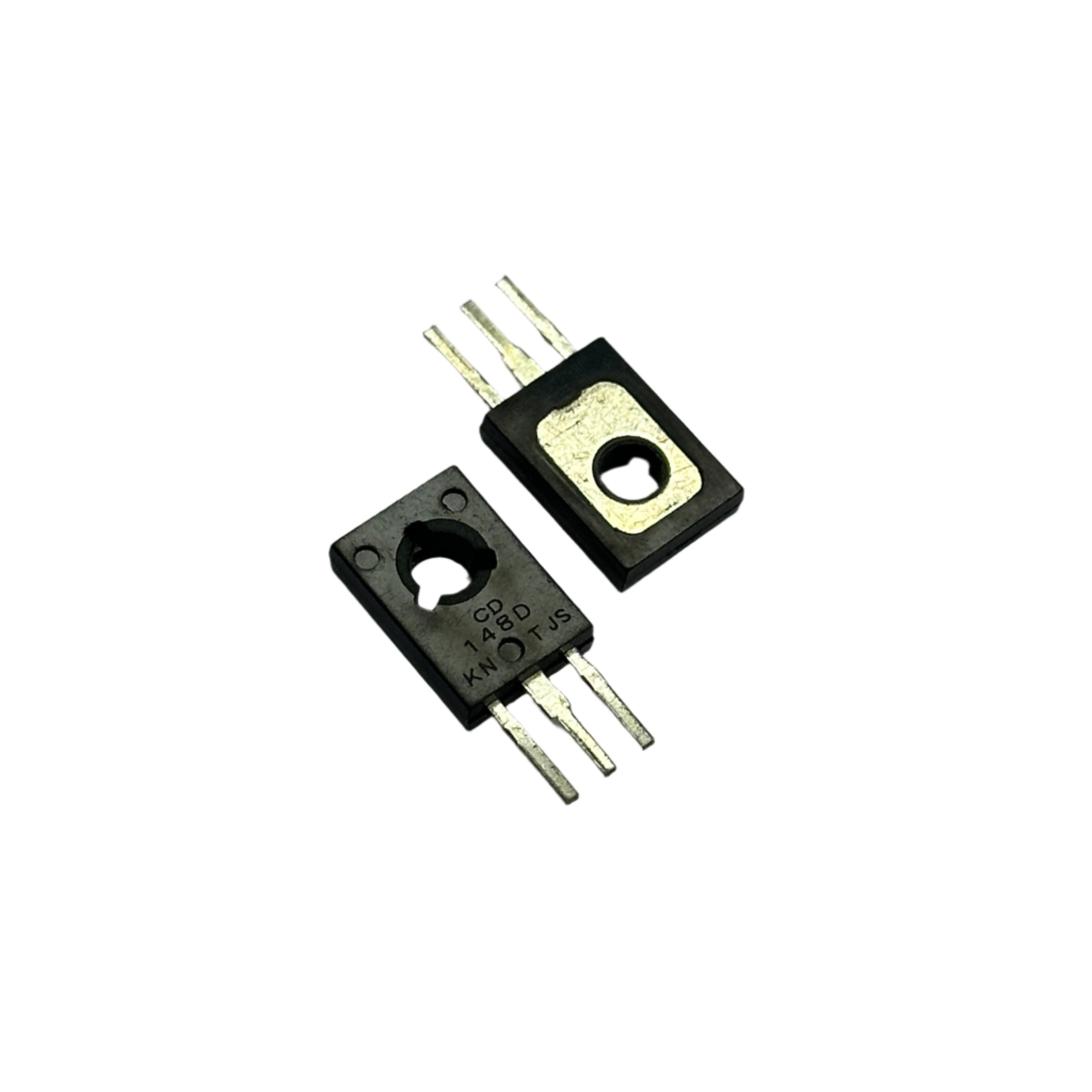

CD148D 800V 2A NPN TRANSISTOR (CDIL)

DESCRIPTION

SYMBOL

TEST CONDITION

MIN

TYP

MAX

UNIT

Collector Emitter Voltage

VCEO

I_C=10mA, I_B=0

450

V

Collector Base Voltage

VCBO

I_C=1mA, I_E=0

800

V

Emitter Base Voltage

VEBO

I_E=1mA, I_C=0

9

V

Collector Cuttoff Current

ICBO

V_CB=800V, I_E=0

100

mA

Emitter Cuttoff Current

IEBO

V_EB=9V, I_C=0

10

mA

DC Current Gain

* hFE 1

I_C=500mA, V_CE=5V

15

25

hFE 2

I_C=1A,V_CE=5V

5

25

Collector Emitter Saturation Voltage

VCE(sat)

I_C=1A, I_B=0.25A

I_C=1.5A, I_B=0.5A

0.5

1.0

V

V

Base Emitter Saturation Voltage

VBE(sat)

I_C=0.5A, I_B=0.1A

I_C=1A, I_B=0.25A

1.0

1.2

V

V

Integrated Diode Forward Voltage

VFEC

I_F=2A

2.0

V

Transition Frequency

f_T

I_C=100mA, V_CE=10V

4.0

MHz
