14% ₹ 490.88
DYS F4 pro V2
DYS F4 PRO V2
DYS F4 pro V2
DYS F4 PRO V2
TOMSON ELECTRONICS

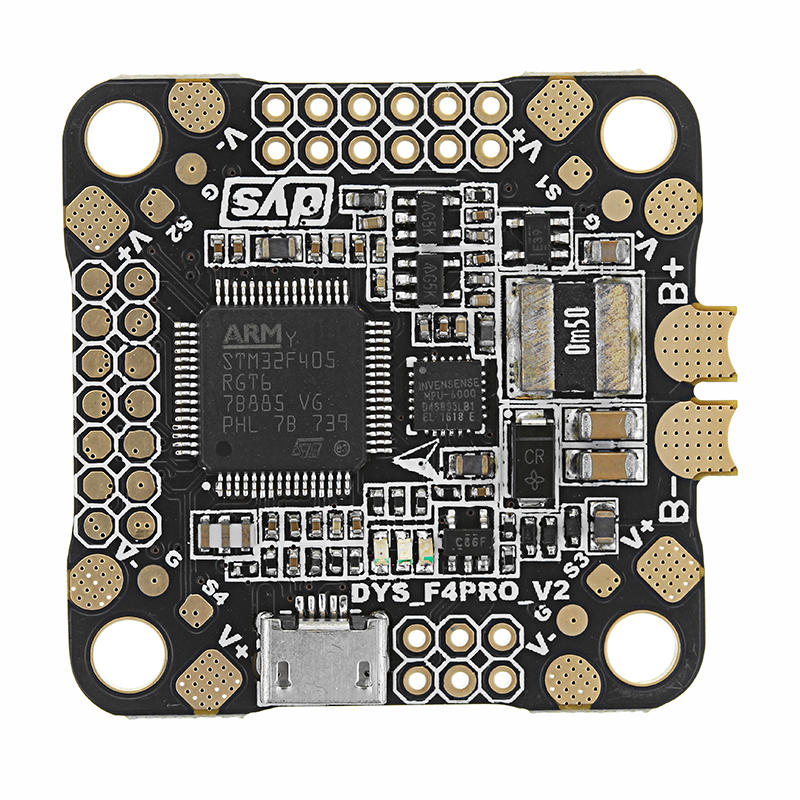

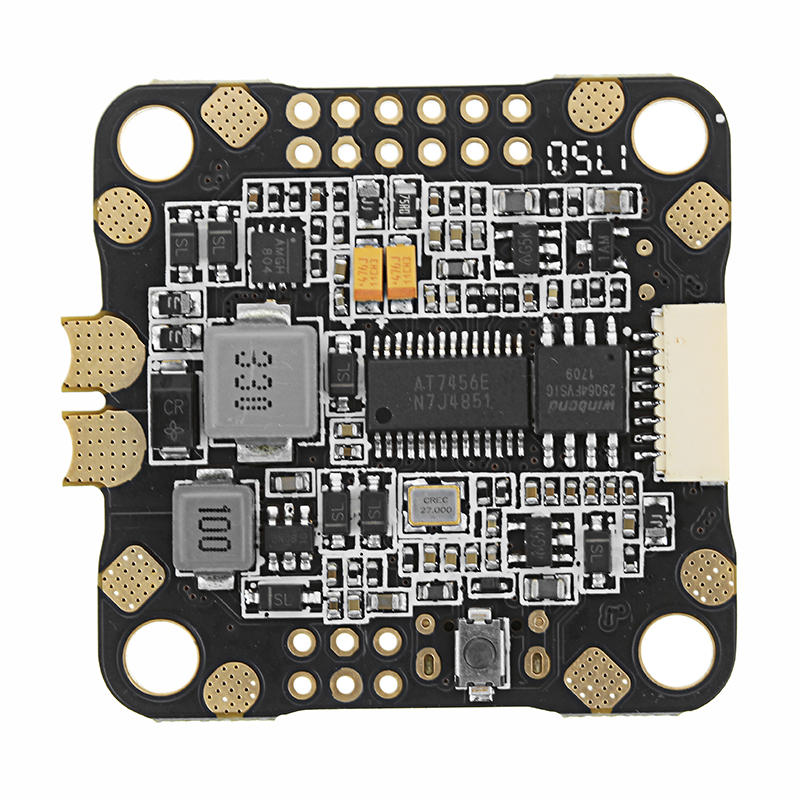

DYS F4 Pro V2 Flight Controller AIO OSD & 5V 9V 3.3V BEC & Current Sensor

Product SKU: DRN-02502
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
₹ 3,037.32 (Incl.Tax)
₹ 3,528.20
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
For Bulk Enquries:
+91 90614 50999
  • Description

DYS Omnibus F4 Pro V2 Flight Controller AIO OSD & BEC & Current Sensor

Specification:
Brand Name: DYS
Model: F4 Pro V2
Item Name: F4 Pro V2 FC AIO OSD BEC and Current Sensor
MCU: STM32F405
 Gyro: MPU6000
Input Voltage: Support 3-6S Lipo
BEC Output: 5V@ 3A
                    : 3.3V @ 0.3A
- Also have 9V @ 1.2A
Size: 38 (L)X386(W) mm
Hole Distance: 30.5x30.5mm
Net Weight: 10.5g (not including cable)

Features:

- The refresh rate of PID and gyro up to 8K
- PCB 3OZ copper enhance current stability and cooling fast
- Exposed pad for easy soldering
- Support BF setting software to flash and debug OSD
- Integrated current sensor to monitor the real-time power consumption
- Use remote control to view flight control parameter through OSD
- Support SAMRT AUDIO, adjust the VTX by OSD
- Comes with heat resistance damping ball to upgrade the stability and operation
- 3-6s lipo input, integrated PDB, max withstand current 160A

New upgradable fucntion:
1. It can use S5,S6 motor control signal pad after updating firmware
2. Has the reverse high voltage protection circuit to the PCB board.
3. Added 9V/1.2A power output & 5V/3A one-way output
4. With 8pin socket to compatible with 4 in 1 ESC
5. Added Protection Circuit for USB Port
7. Added 8 Pin Port for 4 In 1 ESC
8. Compatible with DYS 20A / 30A 4 In 1 ESC.

Package Included:
1x DYS F4 Pro V2 Flight Controll Board
3x Cable
1x XT60 Connector
1x Manual
1x bag of Screws
