The new flexible microcontroller board from Raspberry Pi.

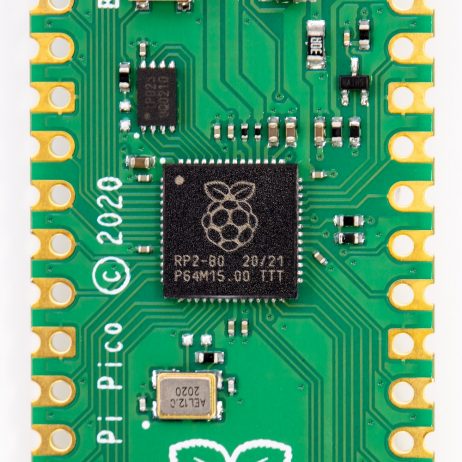

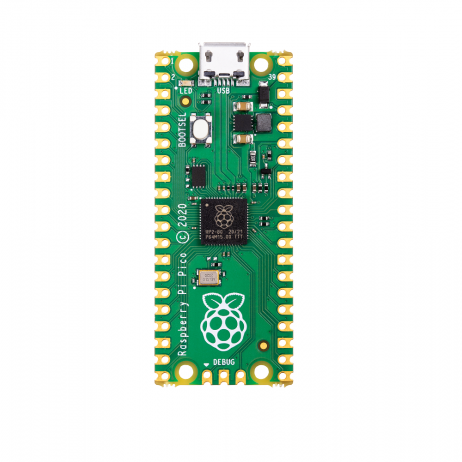

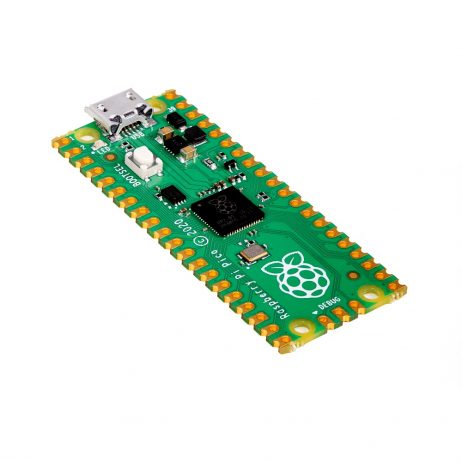

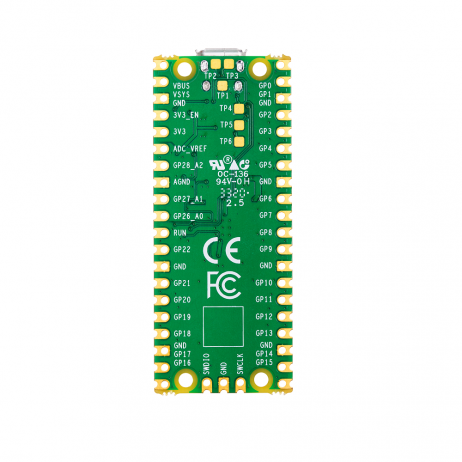

Welcome, Raspberry Pi Pico, a new tiny member of the Raspberry Pi family. Pi Pico is a microcontroller board based on RP2040 microcontroller chip designed by Raspberry Pi in UK.

Raspberry Pi Pico

  1. RP2040 microcontroller chip designed by Raspberry Pi
  2. Dual-core Arm Cortex M0+ processor, the flexible clock running up to 133 MHz
  3. 264KB of SRAM, and 2MB of onboard Flash memory
  4. The castellated module allows soldering directly to carrier boards
  5. USB 1.1 with device and host support
  6. Low-power sleep and dormant modes
  7. Drag-and-drop programming using mass storage over USB
  8. 26 × multi-function GPIO pins
  9. 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
  10. Accurate clock and timer on-chip
  11. Temperature sensor
  12. Accelerated floating-point libraries on-chip
  13. 8 × Programmable I/O (PIO) state machines for custom peripheral support

The new flexible microcontroller board from Raspberry Pi.

Welcome, Raspberry Pi Pico, a new tiny member of the Raspberry Pi family. Pi Pico is a microcontroller board based on RP2040 microcontroller chip designed by Raspberry Pi in UK.

Raspberry Pi Pico

  1. RP2040 microcontroller chip designed by Raspberry Pi
  2. Dual-core Arm Cortex M0+ processor, the flexible clock running up to 133 MHz
  3. 264KB of SRAM, and 2MB of onboard Flash memory
  4. The castellated module allows soldering directly to carrier boards
  5. USB 1.1 with device and host support
  6. Low-power sleep and dormant modes
  7. Drag-and-drop programming using mass storage over USB
  8. 26 × multi-function GPIO pins
  9. 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
  10. Accurate clock and timer on-chip
  11. Temperature sensor
  12. Accelerated floating-point libraries on-chip
  13. 8 × Programmable I/O (PIO) state machines for custom peripheral support

Raspberry Pi Pico Specifications

Model Raspberry Pi PICO
Operating Voltage (VDC) 1.8 ~ 5.5
Processor (VDC) RP2040 (Dual-core Arm Cortex M0+) By Raspberry Pi
Interface 2 x UART, 2 x I2C, 2 x SPI, up to 16 PWM channels
RAM 264 KB
GPIO 26 Pins
Clock Speed 133 MHz
On Board Ports Micro-USB 5V/2.5A DC Power Input Port
Operating Temperature Range (°C) -20 to 85
Length (mm) 51
Width (mm) 21
Height (mm) 4
