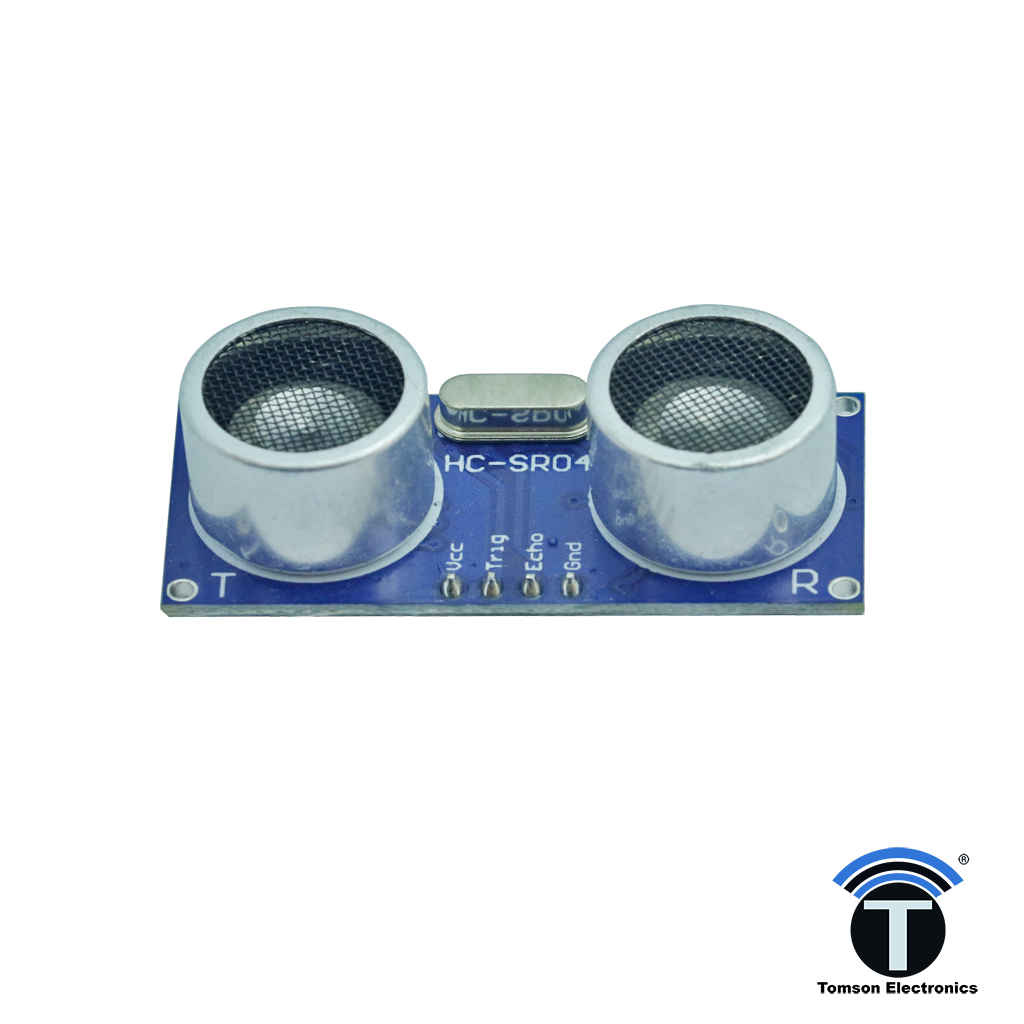

HC-SR 04 Ultrasonic Sensor Module

Available: In Stock
₹ 147.50
  • Order within
Secure

DESCRIPTION

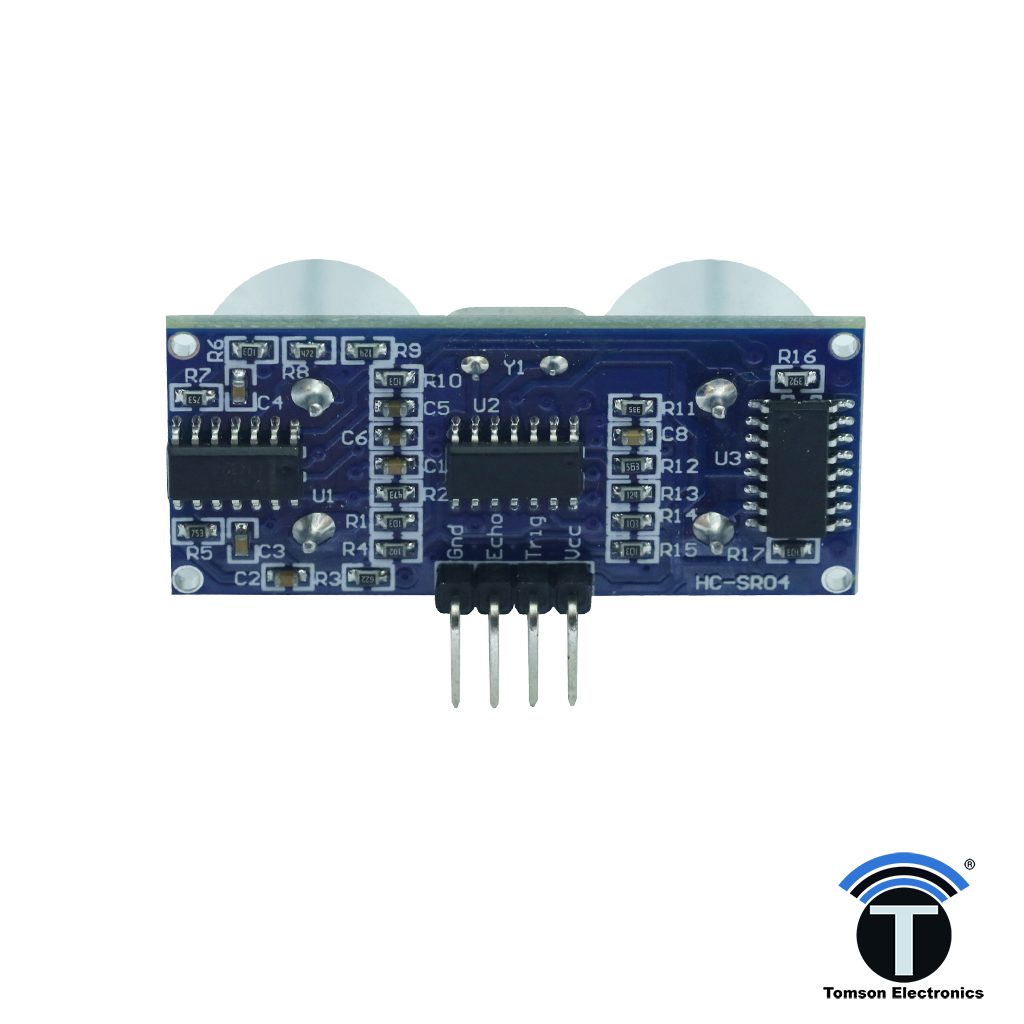

Ultrasonic ranging sensor available at Tomson Electronics, Kochi, Kerala, India is an economical sensor module that provides 2cm to 400cm of non-contact measurement functionality with a ranging accuracy that can reach up to 3mm. Each HC-SR04 module includes an ultrasonic transmitter, a receiver and a control circuit.
There are only four pins that you need to worry about on the HC-SR04: VCC (Power), Trig (Trigger), Echo (Receive), and GND (Ground). You will discover this sensor simple to set up and use for your next range-discovering venture utilizing an Arduino or Raspberry Pi.

Ultra Sonic Sensor Module Hc-Sr04 is a ultrasonic ranging sensor. This economical sensor provides 2cm to 400cm of non-contact measurement functionality with a ranging accuracy that can reach up to 3mm. Each HC-SR04 module includes an ultrasonic transmitter, a receiver and a control circuit.There are only four pins that you need to worry about on the HC-SR04: VCC (Power), Trig (Trigger), Echo (Receive), and GND (Ground).

DEVELOPMENT RESOURCES:

Datasheet
Arduino Example Code

    FEATURES

    • Operating Voltage: 5V DC
    • Operating Current: 15mA
    • Measure Angle: 15°
    • Ranging Distance: 2cm - 400cm
    • Working Frequency : 40Hz
    • Trigger Input Signal : 10uS TTL pulse
    • Echo Output Signal : Input TTL lever signal and the range in proportion
